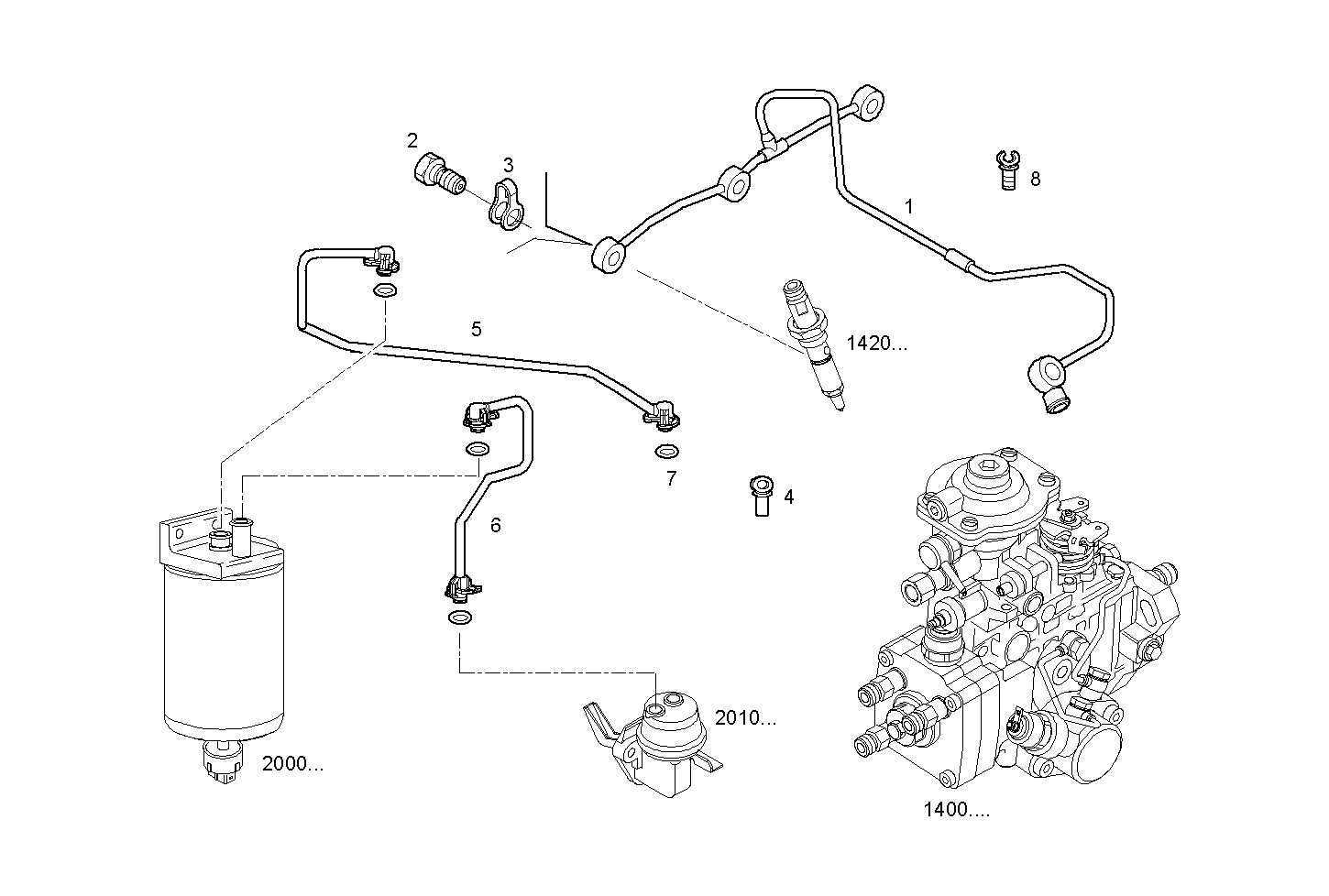

FUEL LINES
F4CE0304A*D600 — NEF 3 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504049455 | FUEL PIPES FUEL PIPES | 1 | |
| 2 | 4895244 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 3 | 4895305 | SEAL GASKET SEAL GASKET | 3 | |
| 4 | 4897762 | SPRING CLAMP SPRING CLAMP | 1 | |
| 5 | 2830497 | FUEL LINE FUEL LINE | 1 | |
| 6 | 2830494 | FUEL LINE FUEL LINE | 1 | |
| 7 | 4894095 | O-RING O-RING | 4 | |
| 8 | 4893428 | SPRING CLAMP SPRING CLAMP | 1 |
