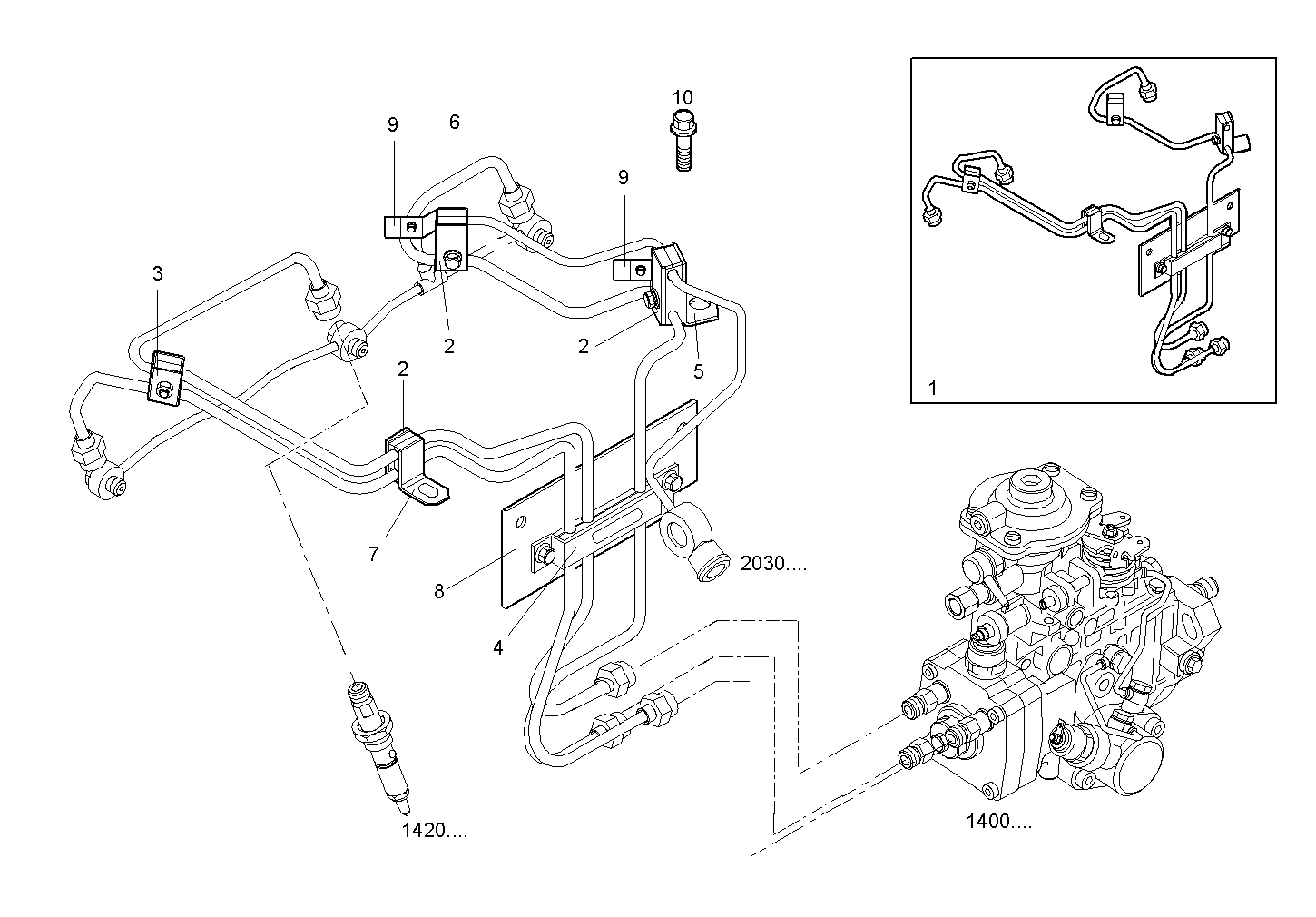

INJECTION PIPES
F4CE0304A*D600 — NEF 3 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504039559 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 504088873 | FASTENING BRACKET FASTENING BRACKET | 3 | |
| 3 | 504088874 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 504088875 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 5 | 504088876 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 504088877 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 7 | 504088878 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 504088879 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 9 | 504088881 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 10 | 4899068 | HEXAGON BOLT HEXAGON BOLT | 2 |
