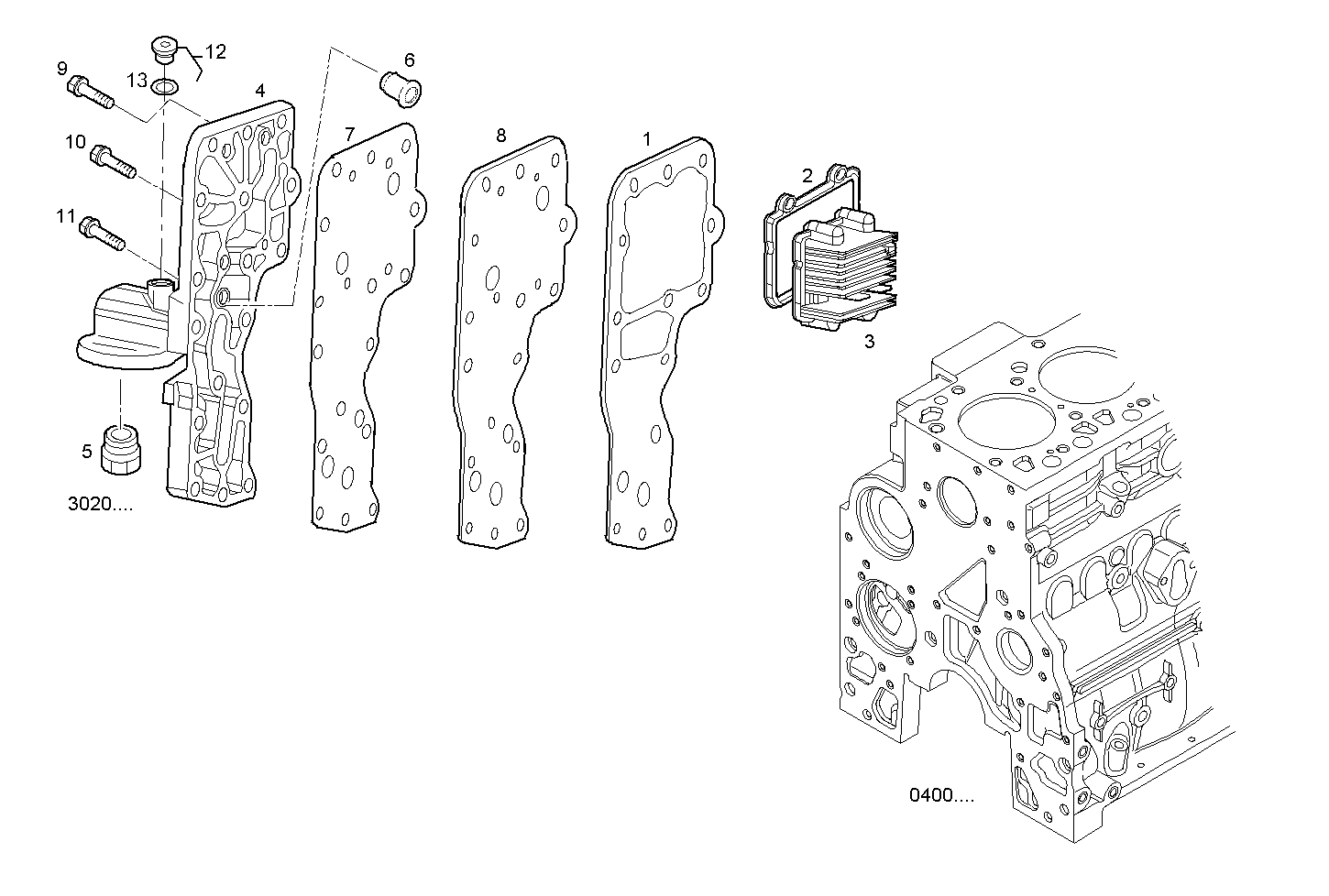

OIL - WATER HEAT EXCHANGER
F4CE0304A*D600 — NEF 3 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504066295 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 504066292 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 504066293 | OIL COOLER OIL COOLER | 1 | |
| 4 | 504066288 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 5 | 4893391 | THREADED UNION THREADED UNION | 1 | |
| 6 | 4896410 | VALVE VALVE | 1 | |
| 7 | 504066294 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 504066291 | SPACING BAR SPACING BAR | 1 | |
| 9 | 4899147 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 4899019 | HEXAGON BOLT HEXAGON BOLT | 13 | |
| 11 | 4899063 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 4897330 | PLUG PLUG | 1 | |
| 13 | 4895610 | O-RING O-RING | 1 |
