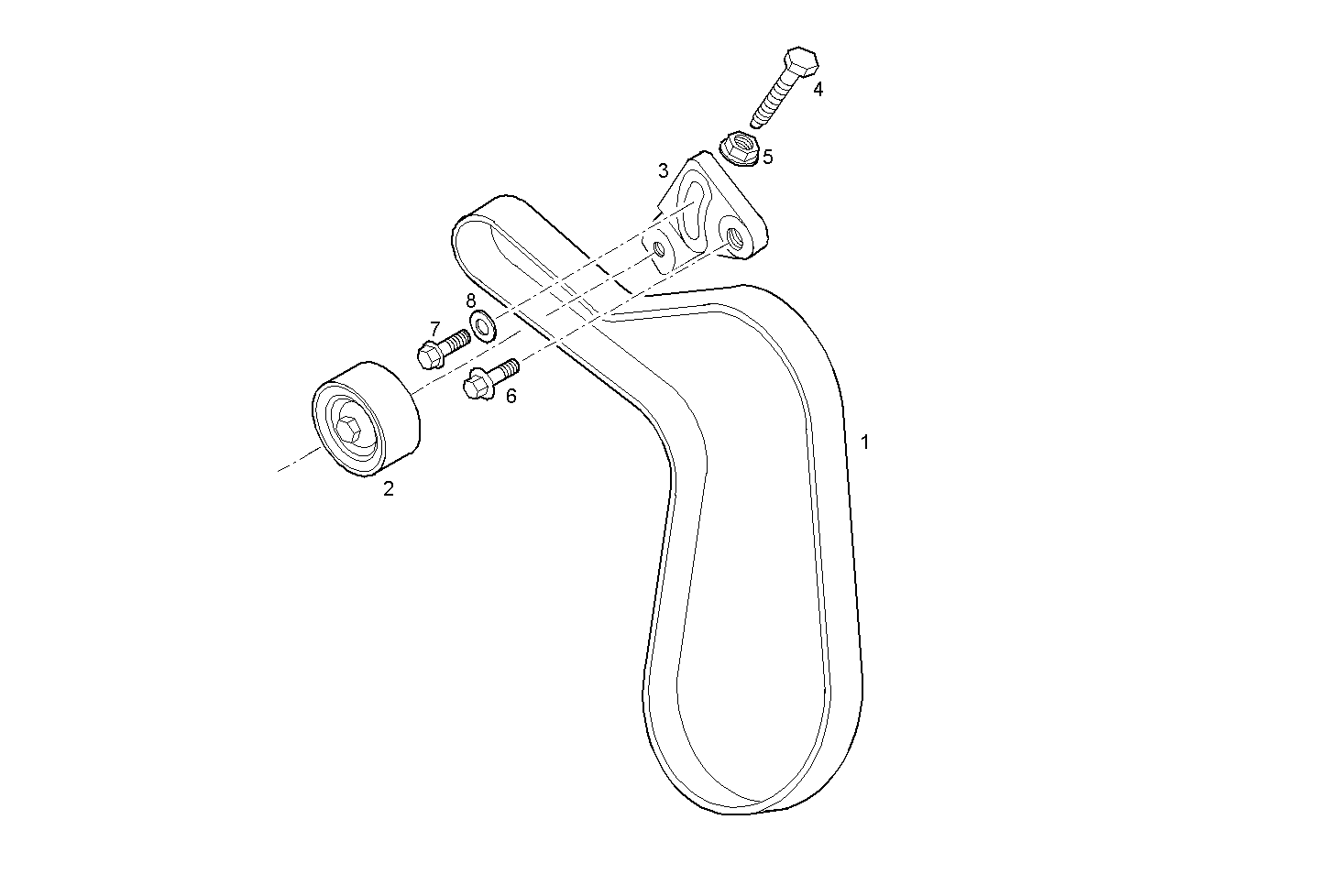

WATER PUMP DRIVE
F4CE0304A*D600 — NEF 3 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504013617 | WATER PUMP BELT WATER PUMP BELT | 1 | |
| 2 | 504066034 | PULLEY PULLEY | 1 | |
| 3 | 504013599 | BELT TENSIONER BELT TENSIONER | 1 | |
| 4 | 504020255 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17044821 | NUT NUT | 1 | |
| 6 | 16673835 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 16675835 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17097124 | WASHER WASHER | 1 |
