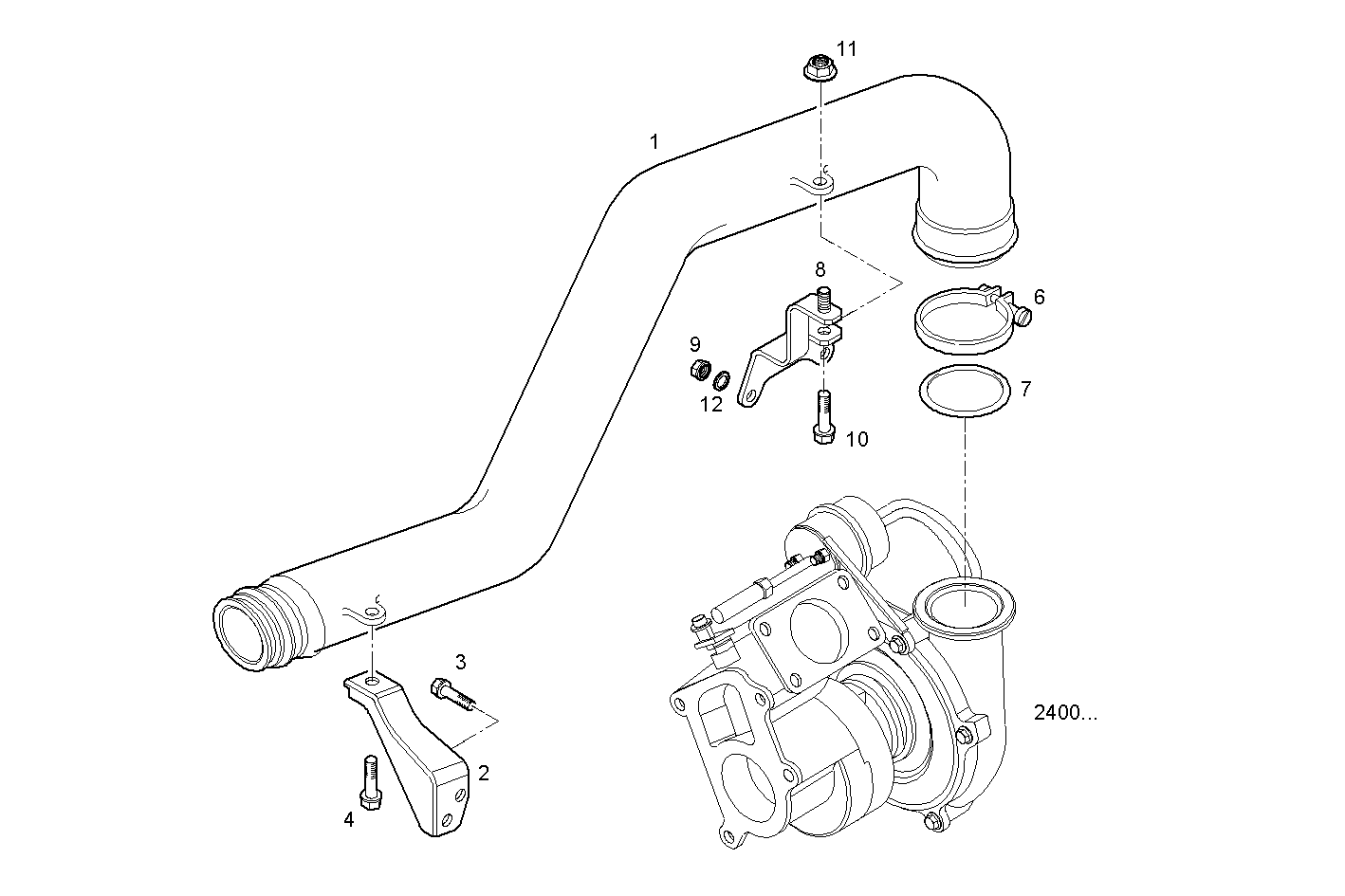

SUPERCHARGING LINES
F4AE0481A*C103 — NEF 4 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4898170 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 4898171 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 3 | 4899068 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 4899020 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 4896621 | CLIP CLIP | 1 | |
| 7 | 4896625 | GASKET GASKET | 1 | |
| 8 | 4898539 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 9 | 4895166 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 4899019 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 4899003 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 4898656 | WASHER WASHER | 2 |
