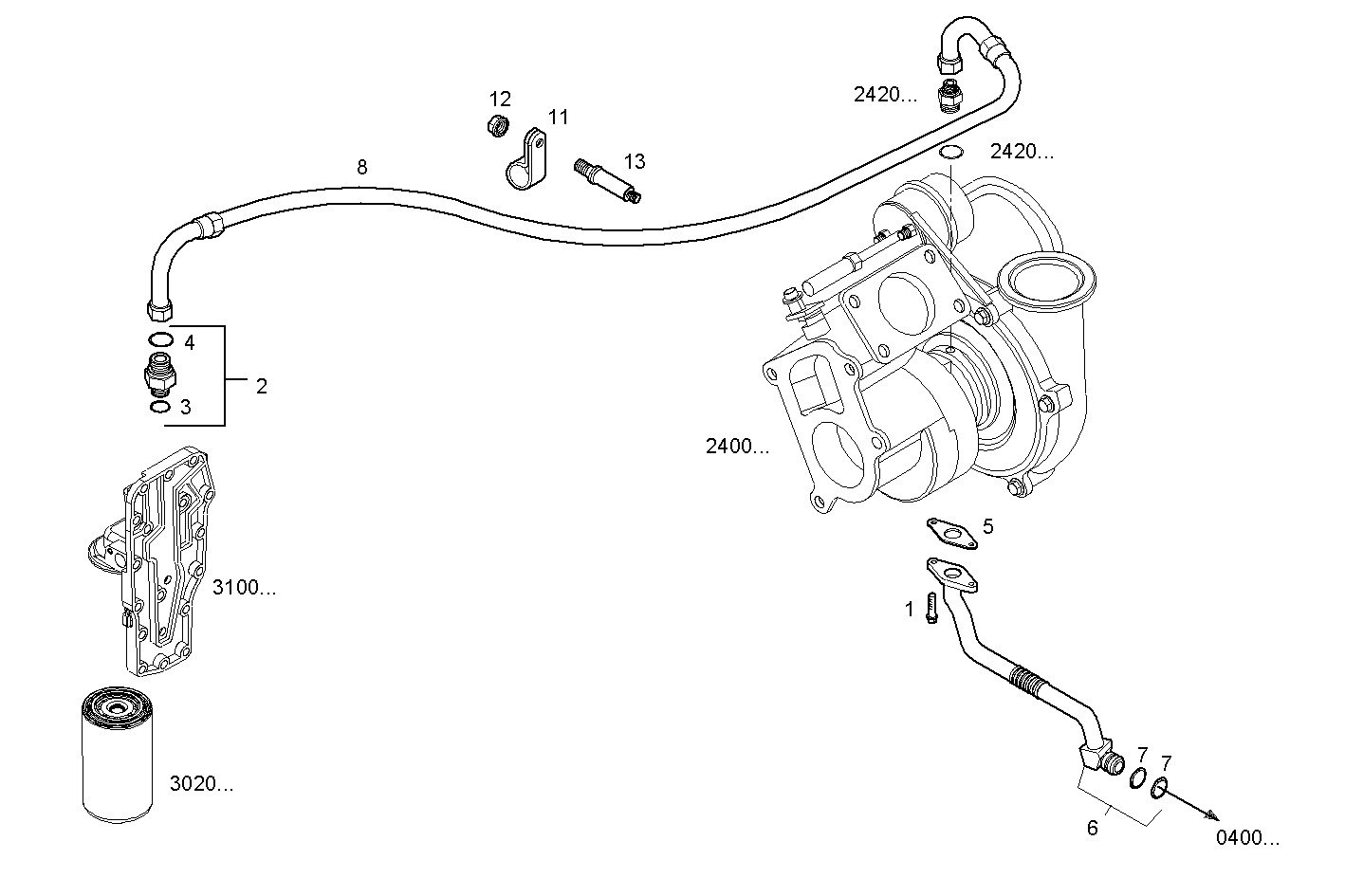

LUBE OIL LINES
F4AE0481C*C102 — NEF 4 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4899110 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 4895107 | THREADED UNION THREADED UNION | 1 | |
| 3 | 4899107 | O-RING O-RING | 1 | |
| 4 | 4899108 | O-RING O-RING | 1 | |
| 5 | 4891629 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4892479 | OIL LINE OIL LINE | 1 | |
| 7 | 4899058 | O-RING O-RING | 2 | |
| 8 | 4899377 | OIL LINE OIL LINE | 1 | |
| 11 | 4899436 | CLIP CLIP | 1 | |
| 12 | 17044731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 4896991 | COLLAR SCREW COLLAR SCREW | 1 |
