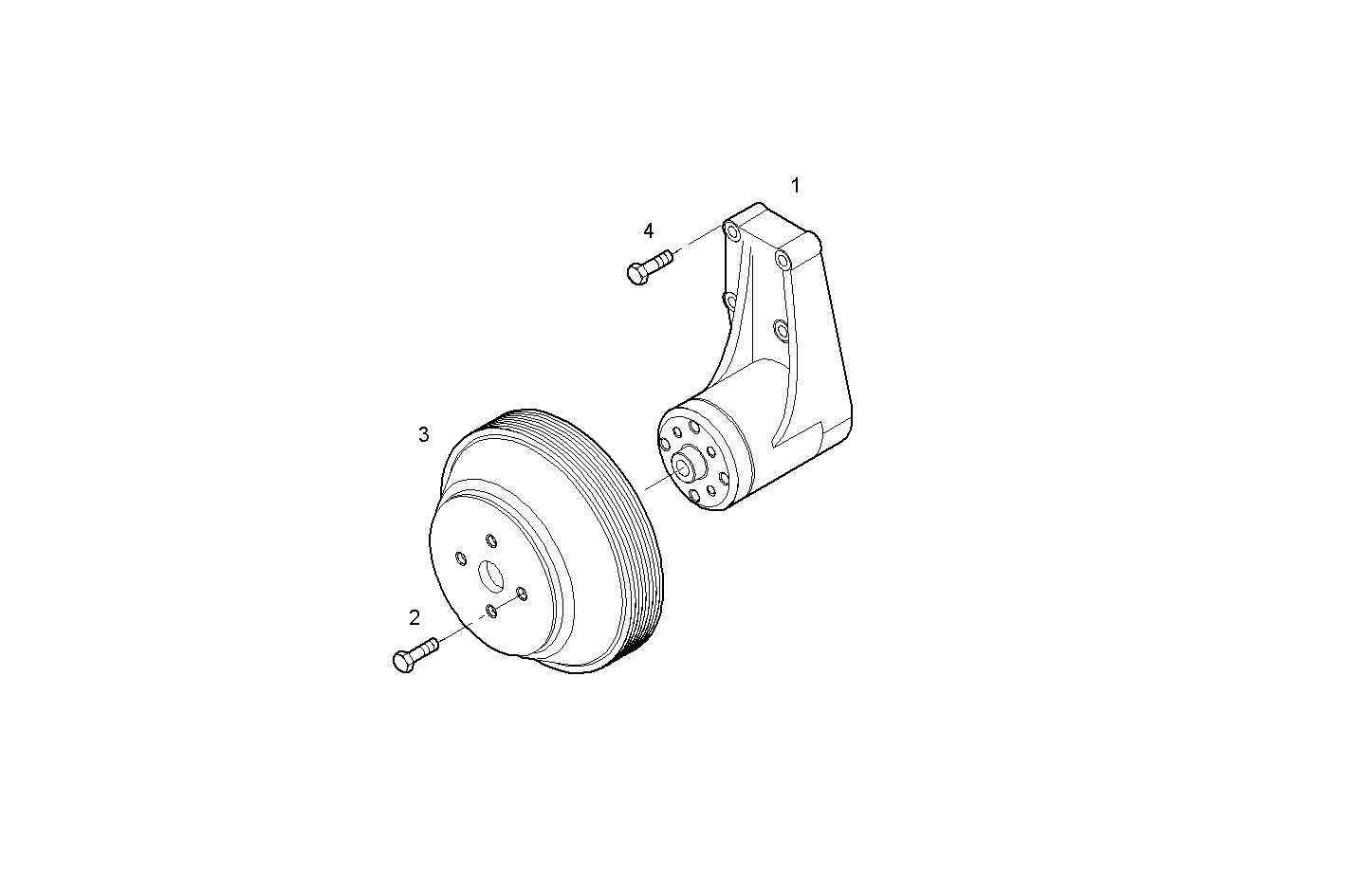

FAN ASSEMBLY
F4AE0481E*C105 — NEF 4 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504055030 | SUPPORT SUPPORT | 1 | |
| 2 | 16586425 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 8033414 | PULLEY PULLEY | 1 | |
| 4 | 4895323 | HEXAGON BOLT HEXAGON BOLT | 4 |
F4AE0481E*C105 — NEF 4 electron. - EURO 3
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504055030 | SUPPORT SUPPORT | 1 | |
| 2 | 16586425 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 8033414 | PULLEY PULLEY | 1 | |
| 4 | 4895323 | HEXAGON BOLT HEXAGON BOLT | 4 |
