AUTOMOTIVE CLUTCH
N40ENTC21.00A015 — NEF 4 electron. - EURO 3

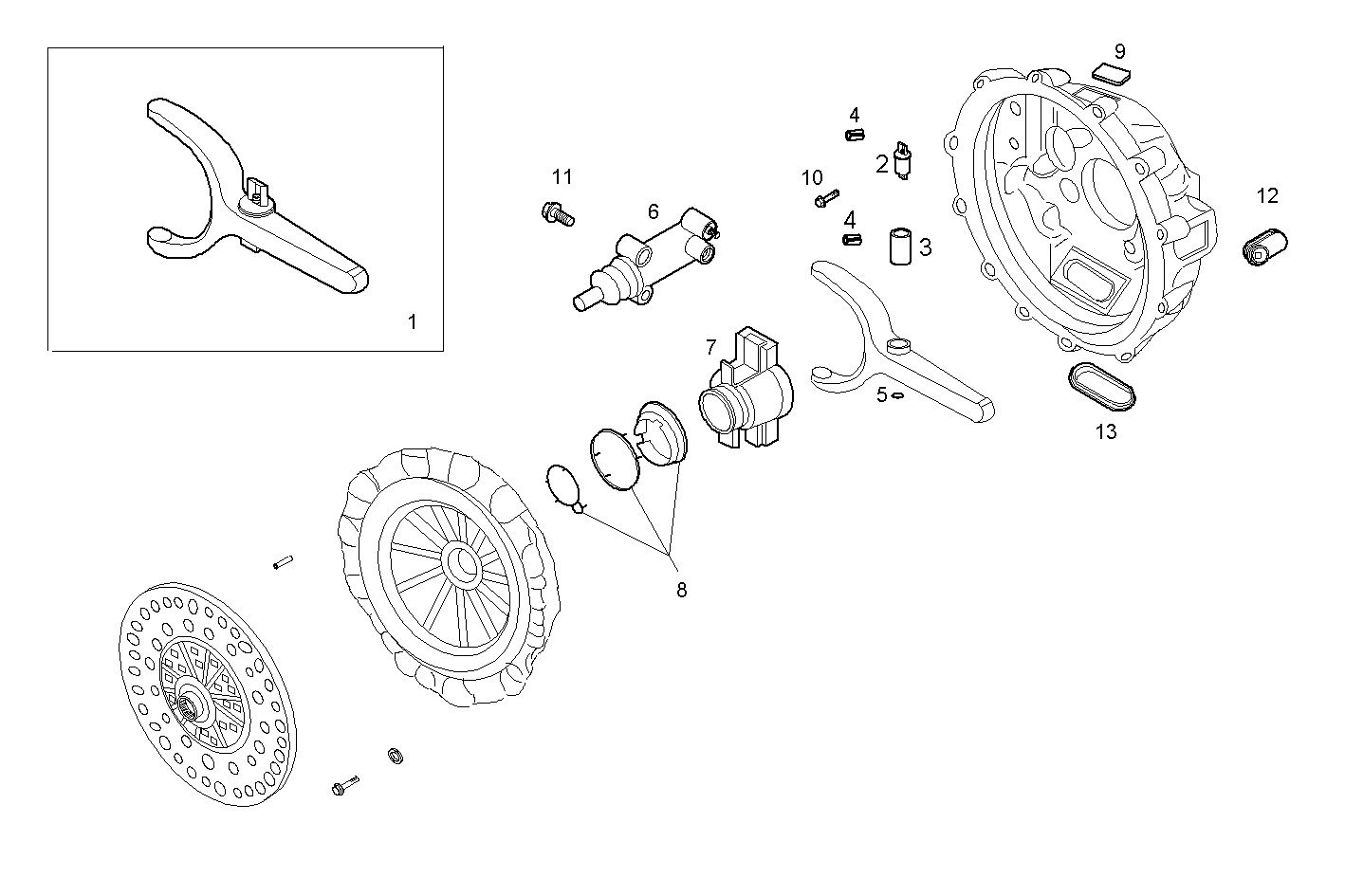

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500367448 | CLUTCH LEVER CLUTCH LEVER | 1 | |
| 2 | 500367451 | SHAFT SHAFT | 1 | |
| 3 | 500335355 | BUSH BUSH | 1 | |
| 4 | 42115306 | DOWEL PIN DOWEL PIN | 2 | |
| 5 | 17853076 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 6 | 500357840 | SLAVE CYLINDER SLAVE CYLINDER | 1 | |
| 7 | 1905274 | RELEASE SLEEVE RELEASE SLEEVE | 1 | |
| 8 | 93161927 | KIT-CLUTCH PLATE KIT-CLUTCH PLATE | 1 | |
| 9 | 504066904 | PLUG PLUG | 1 | |
| 10 | 16587425 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 16592424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 42115305 | PROTECTIVE HOOD PROTECTIVE HOOD | 1 | |
| 13 | 500368049 | COVER COVER | 1 |
