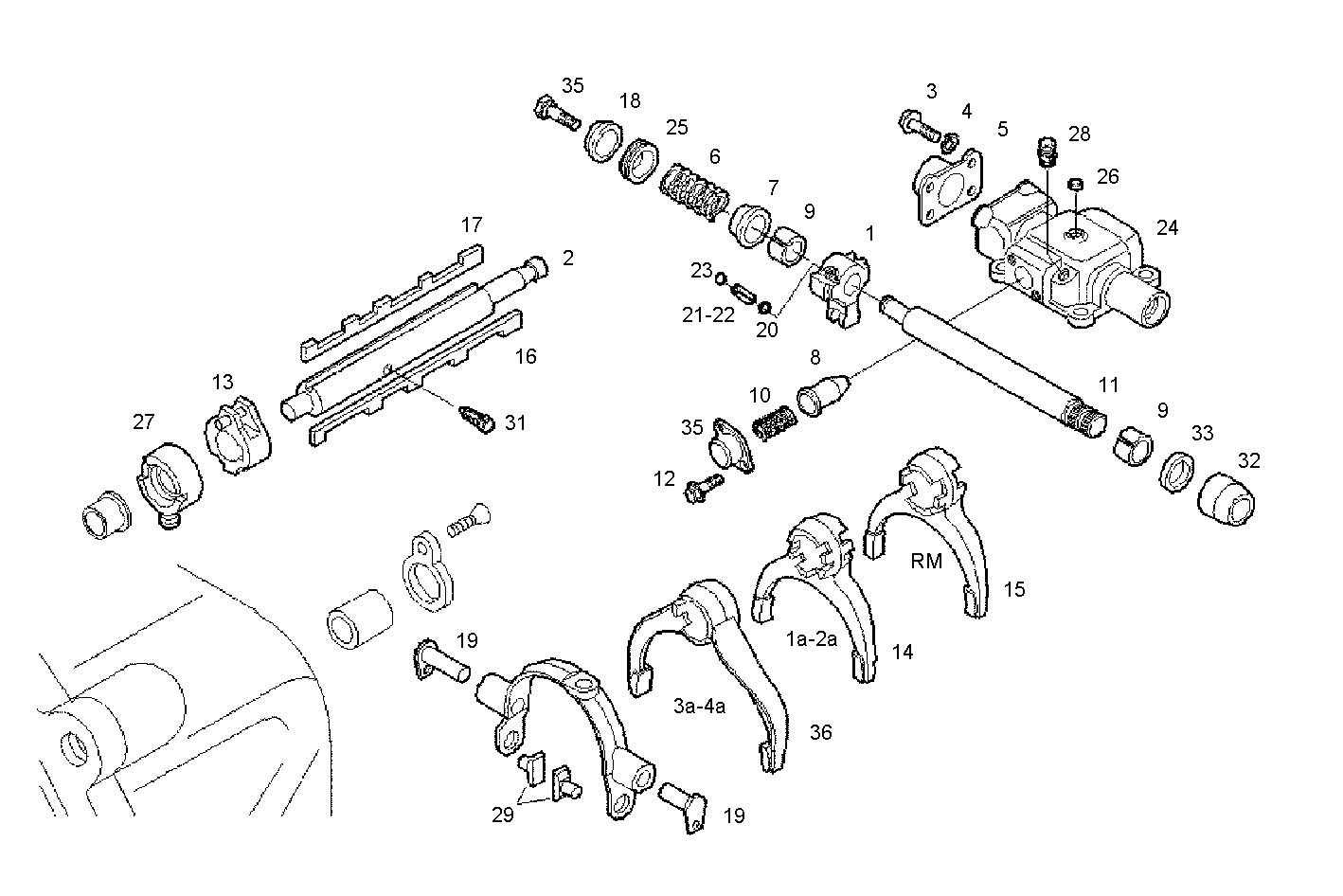

TRANSMISSION
N40ENTC21.00A015 — NEF 4 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8870657 | GEAR SELECT.SLEEVE GEAR SELECT.SLEEVE | 1 | |
| 2 | 8870639 | SHIFT FORK ROD SHIFT FORK ROD | 1 | |
| 3 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 17096824 | WASHER WASHER | 4 | |
| 5 | 8859107 | COVER COVER | 1 | |
| 6 | 8863475 | SPRING SPRING | 1 | |
| 7 | 8859111 | CAP CAP | 1 | |
| 8 | 8868402 | CONTROL PISTON CONTROL PISTON | 1 | |
| 9 | 8859274 | BUSH BUSH | 2 | |
| 10 | 8863476 | SPRING SPRING | 1 | |
| 11 | 8870876 | SHIFT FORK ROD SHIFT FORK ROD | 1 | |
| 12 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 8870693 | GEAR SELECTOR GEAR SELECTOR | 1 | |
| 14 | 8870643 | SHIFT FORK SHIFT FORK | 1 | |
| 15 | 8870645 | SHIFT FORK SHIFT FORK | 1 | |
| 16 | 8870640 | LOCKING PLATE LOCKING PLATE | 1 | |
| 17 | 8870641 | LOCKING PLATE LOCKING PLATE | 1 | |
| 18 | 8859145 | CAP CAP | 1 | |
| 19 | 8859232 | PIN PIN | 2 | |
| 20 | 16870373 | CIRCLIP CIRCLIP | 1 | |
| 21 | 17257870 | DOWEL PIN DOWEL PIN | 1 | |
| 22 | 17261270 | DOWEL PIN DOWEL PIN | 1 | |
| 23 | 8870804 | PLUG PLUG | 1 | |
| 24 | 8870654 | UPPER G.BOX COVER UPPER G.BOX COVER | 1 | |
| 25 | 8863591 | SPACING BAR SPACING BAR | 1 | |
| 26 | 16988301 | LOCK PLUG LOCK PLUG | 1 | |
| 27 | 8870646 | HUB HUB | 1 | |
| 28 | 13411990 | BREATHER BREATHER | 1 | |
| 29 | 8859231 | SLIDING SHOE SLIDING SHOE | 2 | |
| 30 | 8859230 | SHIFT FORK SHIFT FORK | 1 | |
| 31 | 8859313 | SCREW SCREW | 1 | |
| 32 | 8867468 | PROTECTION PROTECTION | 1 | |
| 33 | 40101080 | SHAFT SEAL SHAFT SEAL | 1 | |
| 34 | 18138424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 35 | 8868305 | COVER COVER | 1 | |
| 36 | 8870644 | SHIFT FORK SHIFT FORK | 1 |
