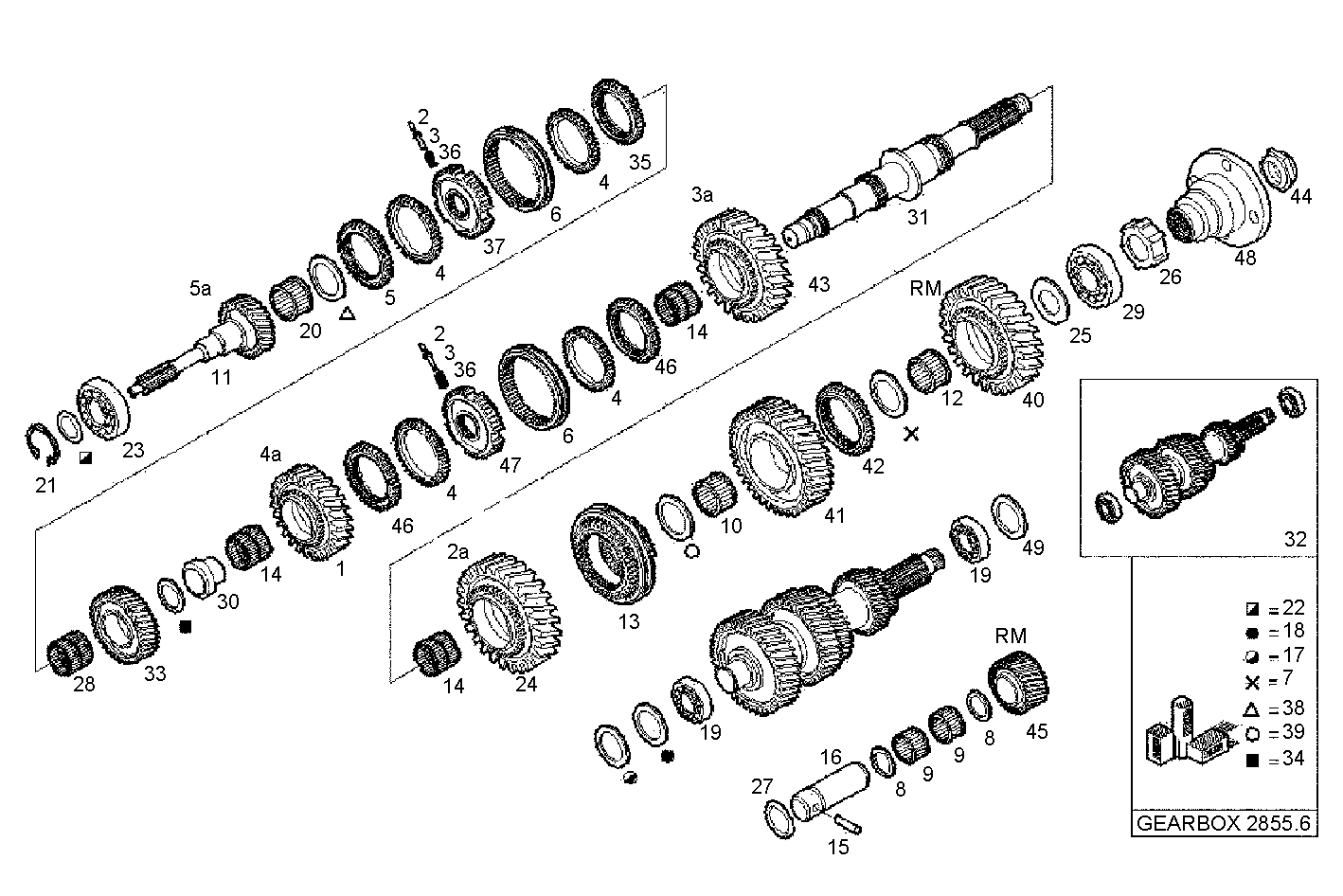

TRANSMISSION
N40ENTC21.00A015 — NEF 4 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8859268 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 2 | 8856938 | PARALLEL ROLLER PARALLEL ROLLER | 6 | |
| 3 | 8860354 | CONTROL PISTON CONTROL PISTON | 6 | |
| 4 | 8867446 | SYNCHRONIZER SYNCHRONIZER | 4 | |
| 5 | 8861579 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 6 | 8870651 | SLIDING SLEEVE SLIDING SLEEVE | 2 | |
| 7 | 8860776 | SET OF SHIMS SET OF SHIMS | 1 | |
| 8 | 8860343 | STOP WASHER STOP WASHER | 2 | |
| 9 | 1905254 | ROLLER CAGE ROLLER CAGE | 2 | |
| 10 | 1905253 | ROLLER CAGE ROLLER CAGE | 1 | |
| 11 | 8868346 | INPUT SHAFT INPUT SHAFT | 1 | |
| 12 | 1905243 | ROLLER CAGE ROLLER CAGE | 1 | |
| 13 | 8871354 | SYNCHRONIZ.COMPLET SYNCHRONIZ.COMPLET | 1 | |
| 14 | 1905241 | ROLLER CAGE ROLLER CAGE | 3 | |
| 15 | 17259070 | DOWEL PIN DOWEL PIN | 1 | |
| 16 | 8861569 | RETURN SHAFT RETURN SHAFT | 1 | |
| 17 | 2992481 | SET OF SHIMS SET OF SHIMS | 2 | |
| 18 | 8860774 | SHIM SHIM | 1 | |
| 19 | 1905252 | GEARBOX BEARINGS GEARBOX BEARINGS | 2 | |
| 20 | 1905270 | ROLLER CAGE ROLLER CAGE | 1 | |
| 21 | 16868373 | CIRCLIP CIRCLIP | 1 | |
| 22 | 8870942 | SET OF SHIMS SET OF SHIMS | 1 | |
| 23 | 1905490 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 24 | 8859266 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 25 | 8859871 | STOP WASHER STOP WASHER | 1 | |
| 26 | 8859212 | WORM WORM | 1 | |
| 27 | 17282481 | O-RING O-RING | 1 | |
| 28 | 1905258 | ROLLER CAGE ROLLER CAGE | 1 | |
| 29 | 1905396 | DRIVE BEARING DRIVE BEARING | 1 | |
| 30 | 8869113 | PLUG-IN SLEEVE PLUG-IN SLEEVE | 1 | |
| 31 | 8869112 | MAIN SHAFT MAIN SHAFT | 1 | |
| 32 | 99808057 | COUNTERSHAFT COUNTERSHAFT | 1 | |
| 33 | 8863110 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 34 | 8861809 | SET OF SHIMS SET OF SHIMS | 1 | |
| 35 | 8861640 | SYNCHRONIZER SYNCHRONIZER | 1 | |
| 36 | 8870696 | SPRING SPRING | 6 | |
| 37 | 8870652 | GEAR BOX HUB GEAR BOX HUB | 1 | |
| 38 | 8861510 | SET OF SHIMS SET OF SHIMS | 1 | |
| 39 | 8859775 | REVERSE GEAR REVERSE GEAR | 1 | |
| 40 | 8859759 | REVERSE GEAR REVERSE GEAR | 1 | |
| 41 | 8859757 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 42 | 8859329 | GEAR BOX HUB GEAR BOX HUB | 1 | |
| 43 | 8859267 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 44 | 8858586 | NUT NUT | 1 | |
| 45 | 8860775 | REVERSE GEAR REVERSE GEAR | 1 | |
| 46 | 8861581 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 47 | 8870653 | GEAR BOX HUB GEAR BOX HUB | 1 | |
| 48 | 8859401 | SHIFT SLEEVE SHIFT SLEEVE | 1 | |
| 49 | 8870691 | SPACING BAR SPACING BAR | 1 |
