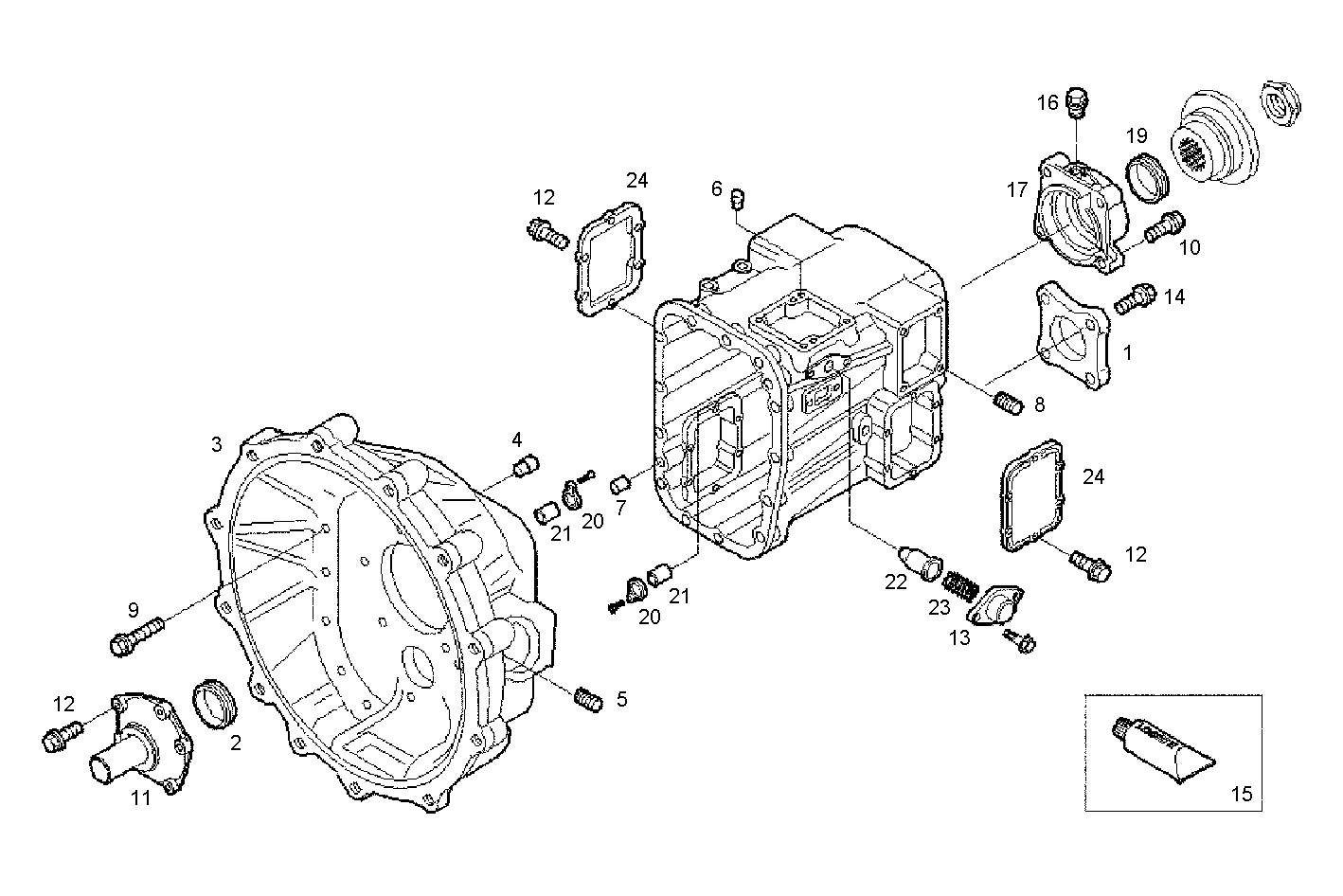

TRANSMISSION
N40ENTC21.00A015 — NEF 4 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8858971 | COVER COVER | 1 | |
| 2 | 40101843 | SHAFT SEAL SHAFT SEAL | 1 | |
| 3 | 99808221 | CLUTCH HOUSING CLUTCH HOUSING | 1 | |
| 4 | 8868506 | DOWEL PIN DOWEL PIN | 2 | |
| 5 | 17849770 | THREADED INSERT THREADED INSERT | 2 | |
| 6 | 17275410 | DOWEL PIN DOWEL PIN | 2 | |
| 7 | 8867620 | DOWEL PIN DOWEL PIN | 2 | |
| 8 | 17849870 | THREADED INSERT THREADED INSERT | 2 | |
| 9 | 16592724 | HEXAGON BOLT HEXAGON BOLT | 13 | |
| 10 | 16587425 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 11 | 8870303 | FRONT G.BOX COVER FRONT G.BOX COVER | 1 | |
| 12 | 18139524 | HEXAGON BOLT HEXAGON BOLT | 17 | |
| 13 | 8870650 | COVER COVER | 1 | |
| 14 | 16677834 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 1903673 | ADHESIVE/STICKER ADHESIVE/STICKER | 1 | |
| 16 | 8863564 | THREADED PLUG THREADED PLUG | 2 | |
| 17 | 8859216 | REAR G.BOX COVER REAR G.BOX COVER | 1 | |
| 18 | 8870638 | TRANSMISSION CASE TRANSMISSION CASE | 1 | |
| 19 | 40100503 | SHAFT SEAL SHAFT SEAL | 1 | |
| 20 | 8870802 | WASHER WASHER | 2 | |
| 21 | 8870658 | BUSH BUSH | 2 | |
| 22 | 8870648 | CONTROL PISTON CONTROL PISTON | 1 | |
| 23 | 8870795 | SPRING SPRING | 1 | |
| 24 | 8859471 | SIDE G.BOX COVER SIDE G.BOX COVER | 2 |
