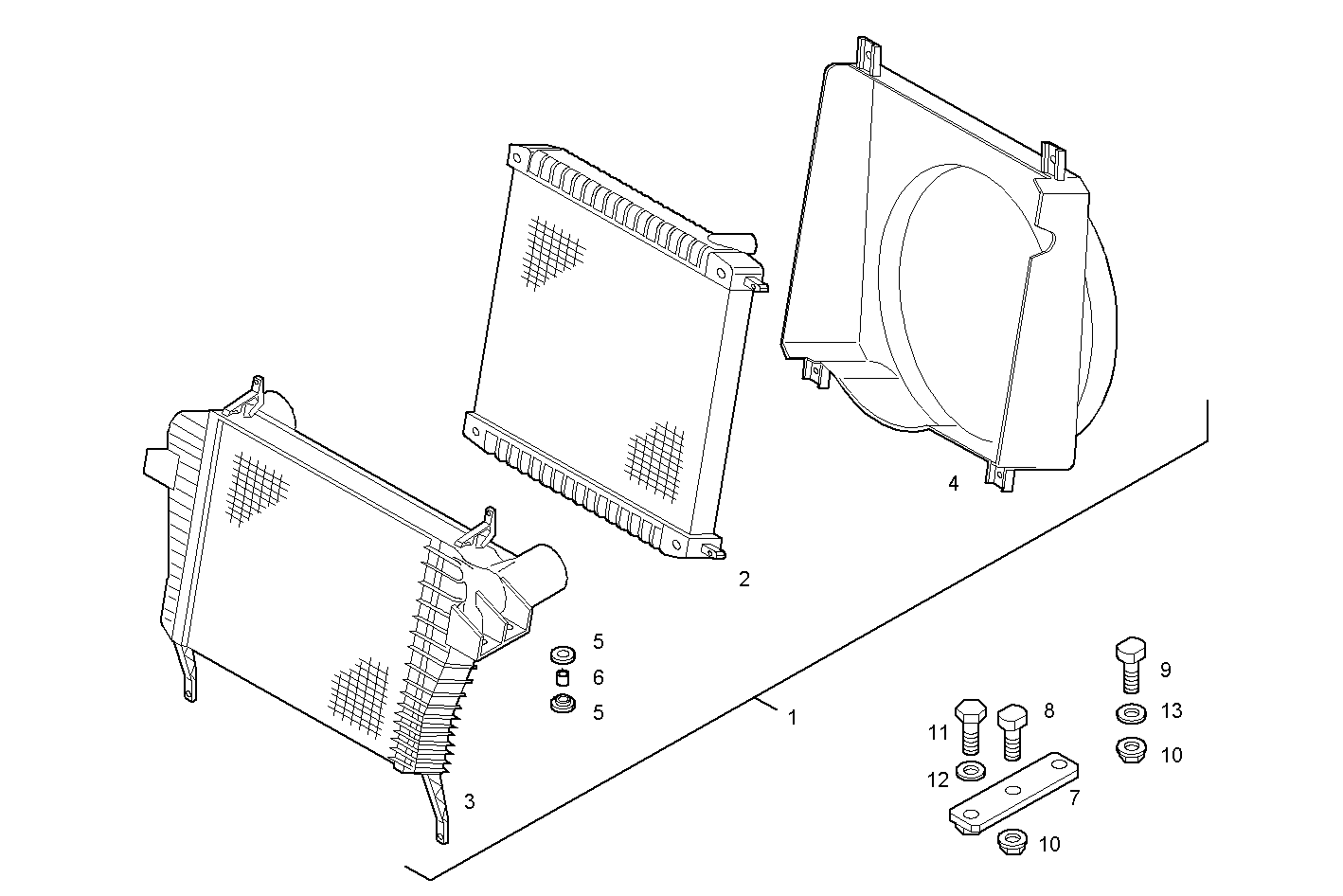

ACCESSORIES
N40ENTC21.00A016 — NEF 4 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504000185 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 500380655 | WATER RADIATOR WATER RADIATOR | 1 | |
| 3 | 500380659 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 4 | 504000186 | AIR HOOD AIR HOOD | 1 | |
| 5 | 504127750 | RUBBER PAD RUBBER PAD | 8 | |
| 6 | 504127752 | SPACING BAR SPACING BAR | 4 | |
| 7 | 500368578 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 8 | 500372469 | SCREW SCREW | 2 | |
| 9 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 16750325 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 16587625 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 500365203 | WASHER WASHER | 4 | |
| 13 | 16665604 | WASHER WASHER | 2 |
