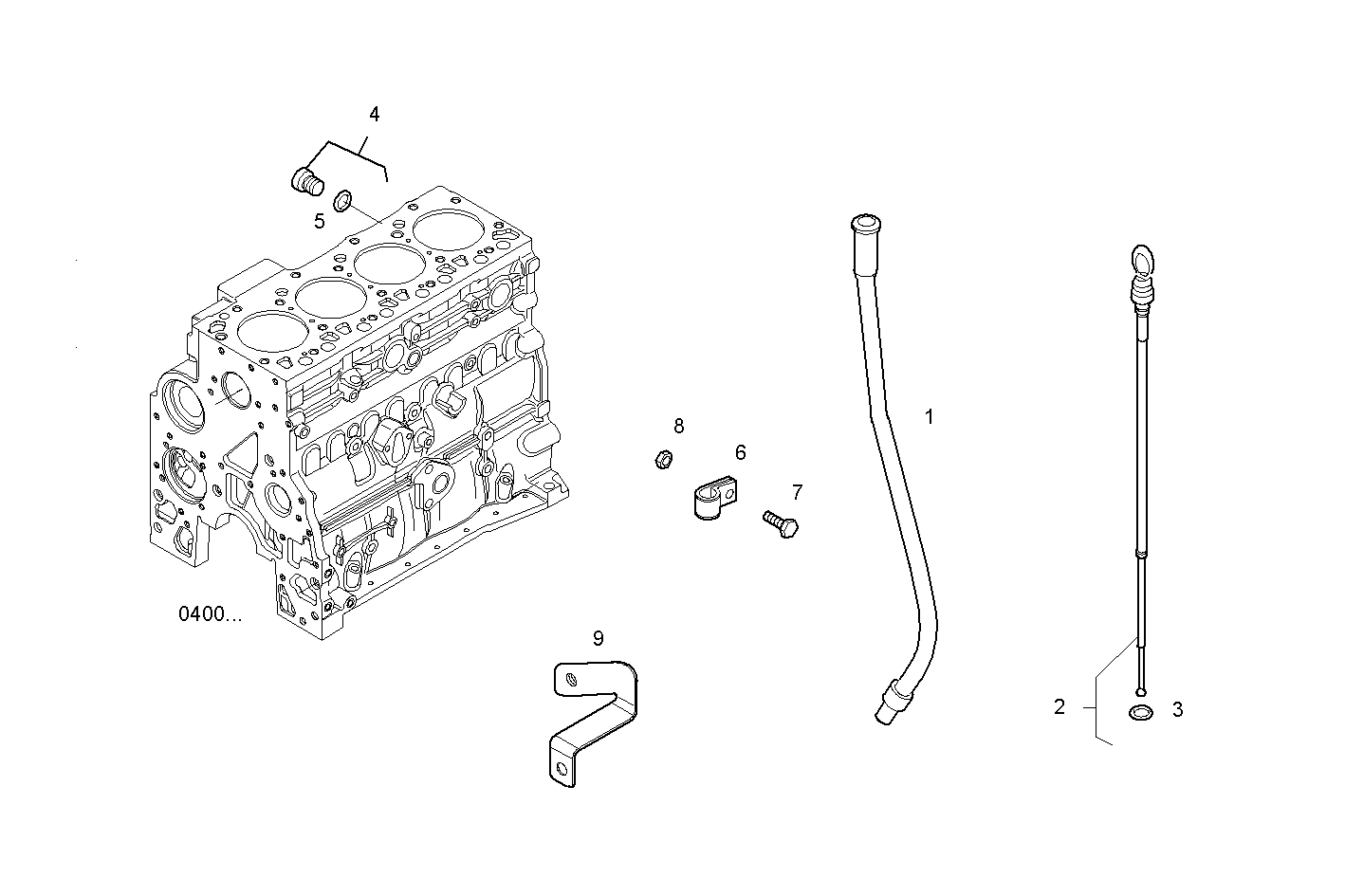

LONG OIL DIPSTICK RIGHT SIDE
N40ENTD20.00 — NEF 4 electron. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504100837 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 2 | 504081024 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 3 | 4898502 | O-RING O-RING | 1 | |
| 4 | 4897330 | PLUG PLUG | 1 | |
| 5 | 4895610 | O-RING O-RING | 1 | |
| 6 | 17310601 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 7 | 16609724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17044625 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 8038916 | RETAINER RETAINER | 1 |
