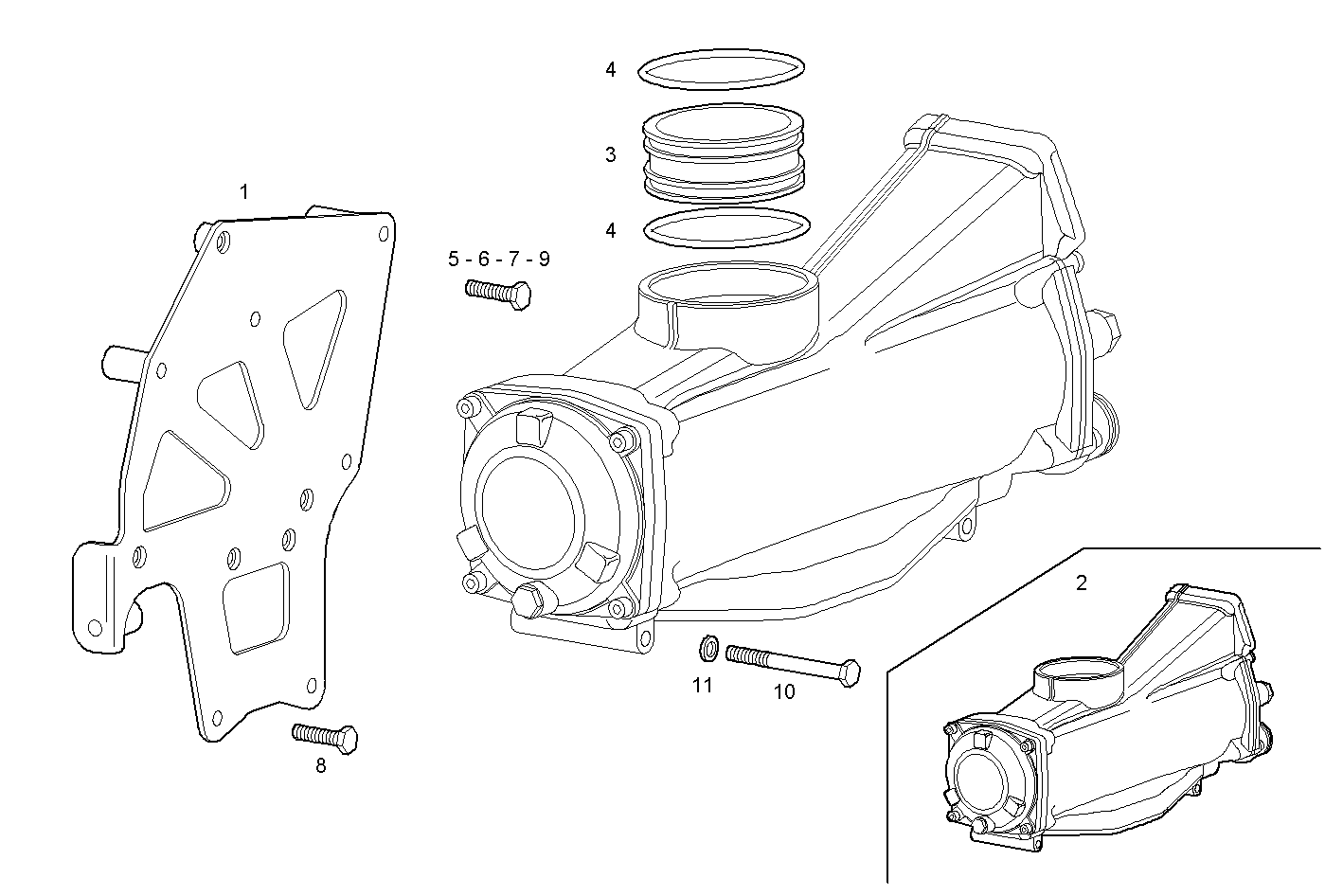

AIR - WATER HEAT EXCHANGER
N40ENTM25.10 — NEF 4 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037891 | SUPPORT SUPPORT | 1 | |
| 2 | 8036076 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 3 | 8031755 | WATER PIPE WATER PIPE | 1 | |
| 4 | 17297081 | O-RING O-RING | 2 | |
| 5 | 16592424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 16586925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 16586624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 16592224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 16045521 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 11 | 17094914 | WASHER WASHER | 3 |
