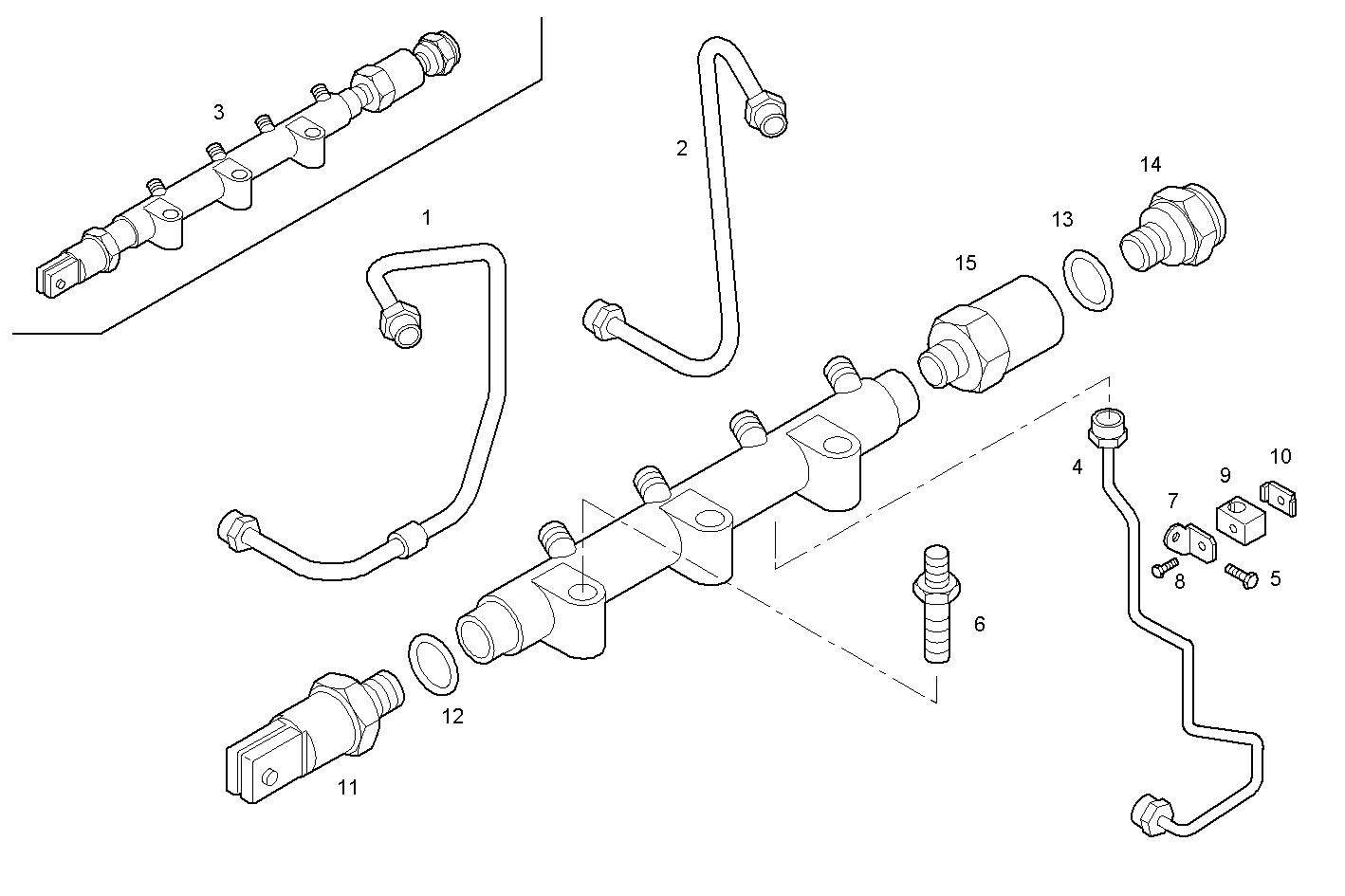

HYDRAUL. ACCUMULATOR
N40ENTM25.10 — NEF 4 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 2830615 | FUEL LINE FUEL LINE | 2 | |
| 2 | 4899323 | FUEL LINE FUEL LINE | 2 | |
| 3 | 4899337 | HYDRAULIC CYLINDER HYDRAULIC CYLINDER | 1 | |
| 4 | 8038800 | FUEL LINE FUEL LINE | 1 | |
| 5 | 16586225 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 504053874 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 8032120 | RETAINER RETAINER | 1 | |
| 8 | 4895310 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 4894674 | RUBBER PAD RUBBER PAD | 2 | |
| 10 | 4898195 | CONNECTING PLATE CONNECTING PLATE | 1 | |
| 11 | 2831362 | SENSOR SENSOR | 1 | |
| 12 | 500372236 | WASHER WASHER | 1 | |
| 13 | 16508360 | WASHER WASHER | 1 | |
| 14 | 4899828 | THREADED UNION THREADED UNION | 1 | |
| 15 | 4899804 | VALVE VALVE | 1 |
