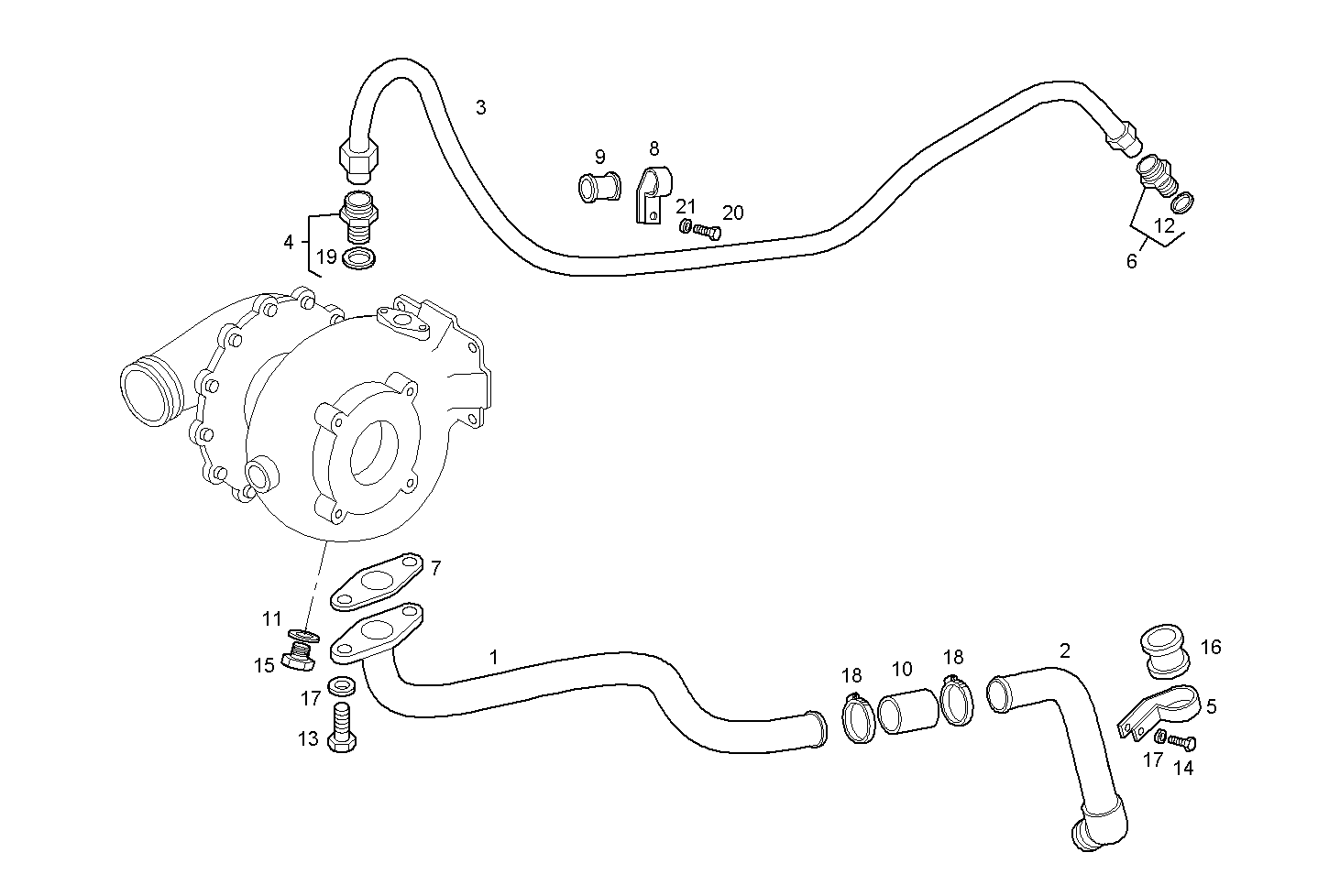

LUBE OIL LINES
N40ENTM25.10 — NEF 4 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8039393 | OIL LINE OIL LINE | 1 | |
| 2 | 8039341 | OIL LINE OIL LINE | 1 | |
| 3 | 8039382 | OIL LINE OIL LINE | 1 | |
| 4 | 8032268 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 8039436 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 8032096 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 98415923 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 9 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 10 | 8109346 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 11 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 12 | 4895610 | O-RING O-RING | 1 | |
| 13 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 16605424 | SCREW SCREW | 1 | |
| 15 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 16 | 4757122 | RUBBER PAD RUBBER PAD | 1 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 18 | 17764593 | CLIP CLIP | 2 | |
| 19 | 17281881 | O-RING O-RING | 1 | |
| 20 | 16922524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 17091074 | WASHER WASHER | 1 |
