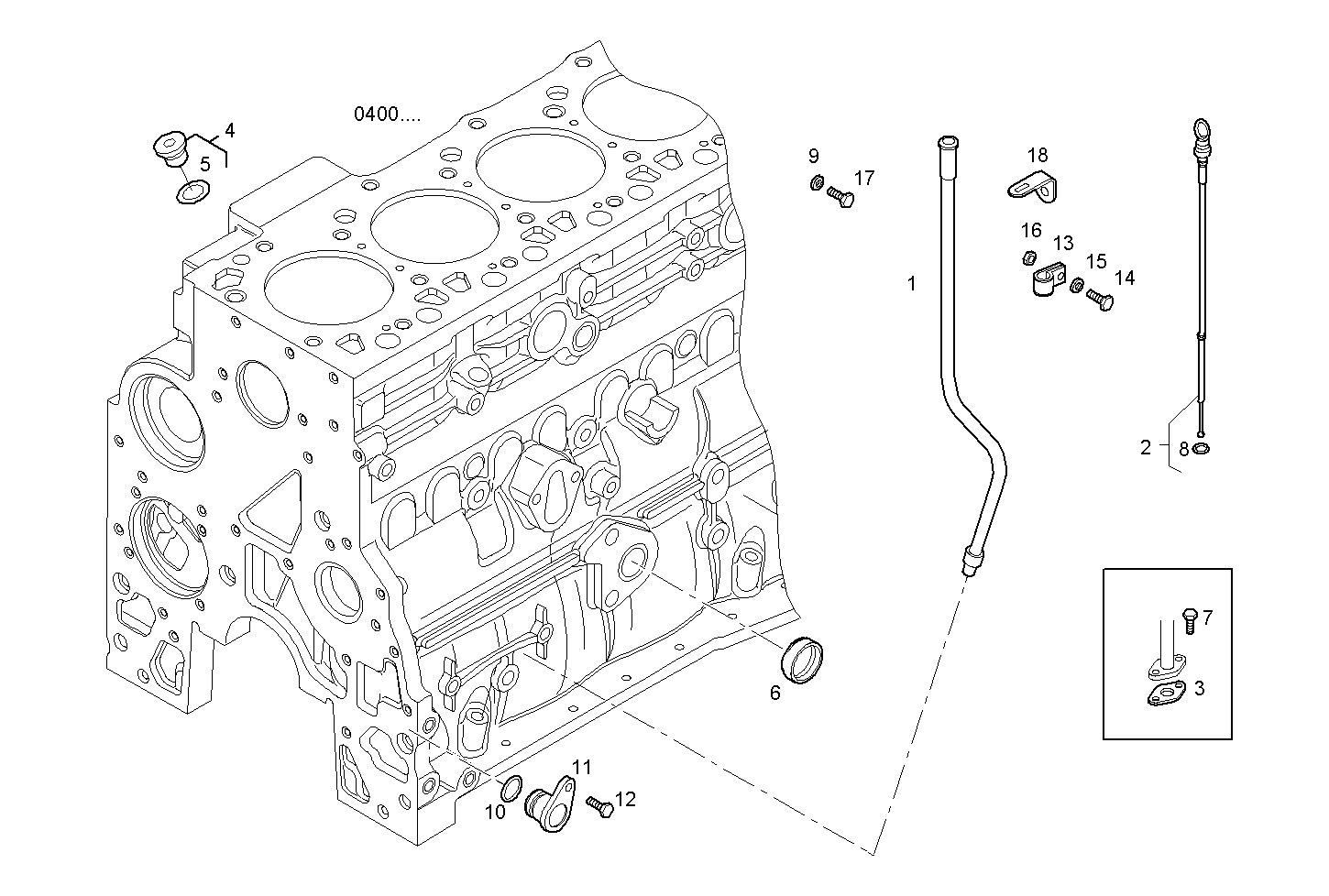

OIL DIPSTICK
N40ENTM25.10 — NEF 4 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8039471 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 2 | 8039561 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 3 | 98401052 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4897330 | PLUG PLUG | 2 | |
| 5 | 4895610 | O-RING O-RING | 2 | |
| 6 | 4895037 | PLUG PLUG | 2 | |
| 7 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17277981 | O-RING O-RING | 1 | |
| 9 | 17088774 | WASHER WASHER | 1 | |
| 10 | 17281881 | O-RING O-RING | 1 | |
| 11 | 504058975 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 12 | 16597225 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17316592 | PIPE CLIP PIPE CLIP | 1 | |
| 14 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17089574 | WASHER WASHER | 1 | |
| 16 | 17044725 | HEXAGON NUT HEXAGON NUT | 1 | |
| 17 | 16609724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 8031803 | FASTENING BRACKET FASTENING BRACKET | 1 |
