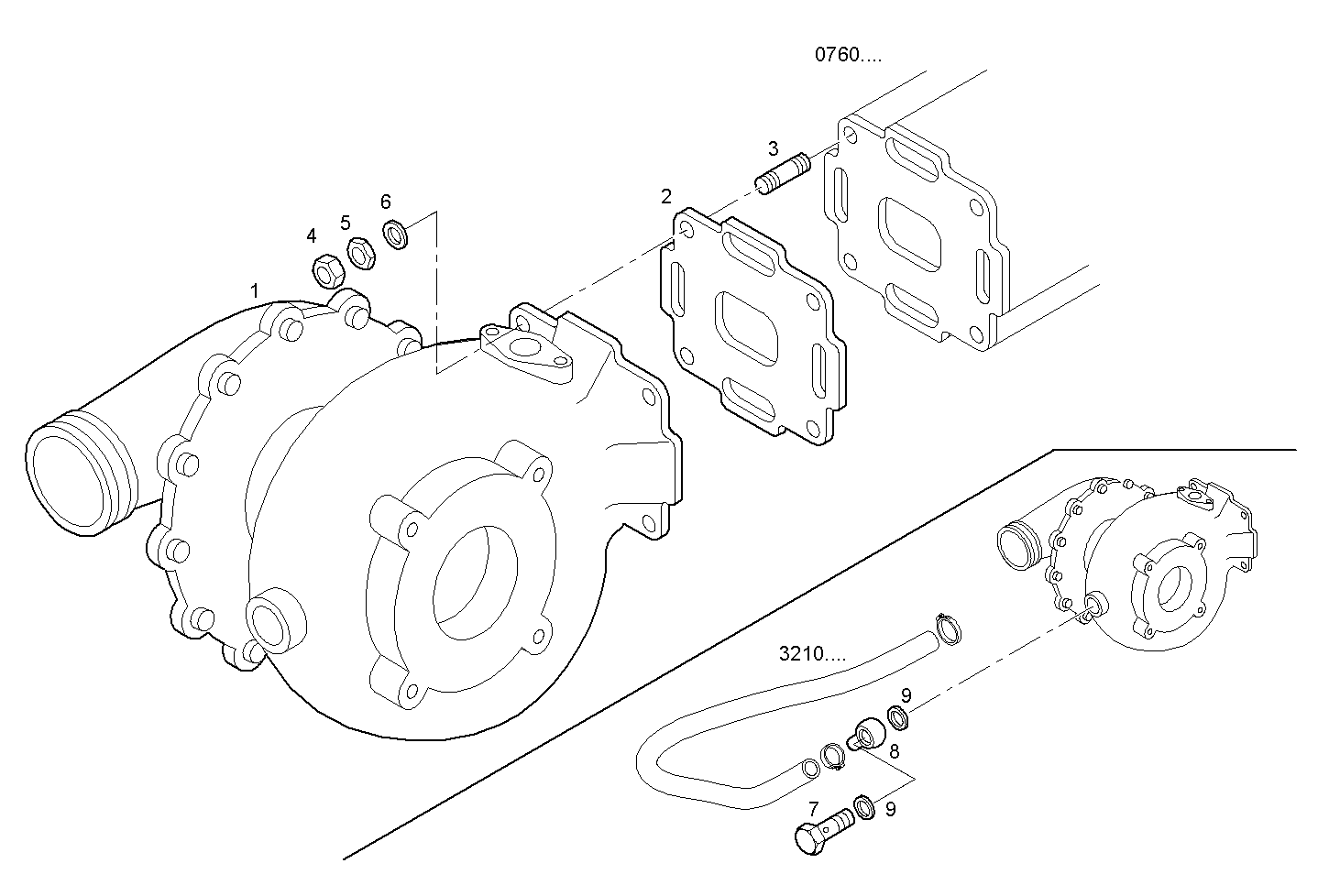

TURBOCHARGER
N40ENTM25.10 — NEF 4 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036080 | WATER COOL.TURBOCHARGER WATER COOL.TURBOCHARGER | 1 | |
| 2 | 8027510 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16731434 | STUD STUD | 4 | |
| 4 | 16979635 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17038131 | HEXAGON NUT HEXAGON NUT | 4 | |
| 6 | 17090074 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 8094682 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 8 | 8094683 | BANJO COUPLING BANJO COUPLING | 1 | |
| 9 | 8094684 | SEAL GASKET SEAL GASKET | 2 |
