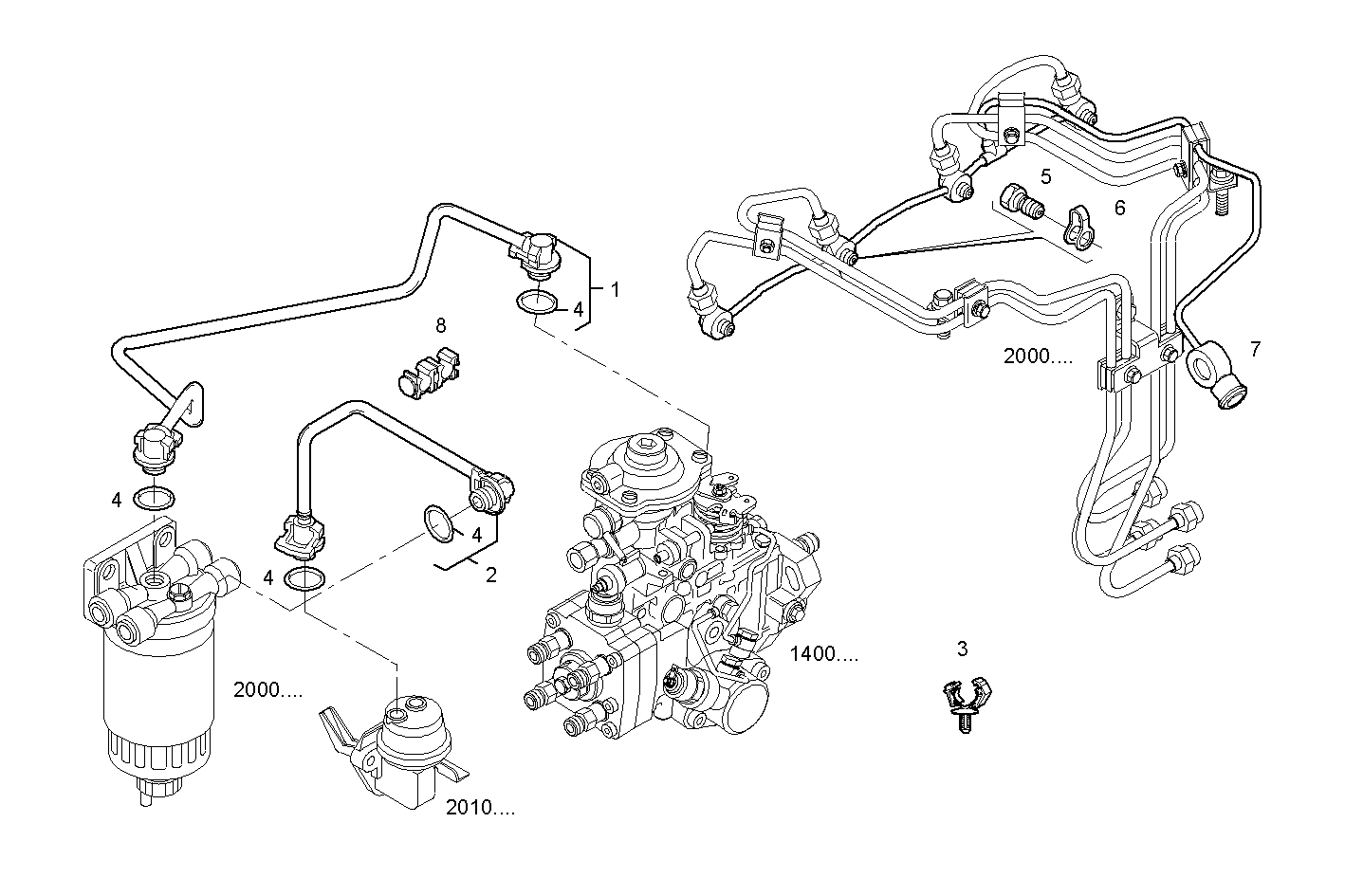

FUEL LINES
F4BE0454A*D601 — NEF 4 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504025707 | FUEL LINE FUEL LINE | 1 | |
| 2 | 504025720 | FUEL LINE FUEL LINE | 1 | |
| 3 | 504065285 | SPRING CLAMP SPRING CLAMP | 1 | |
| 4 | 4894095 | O-RING O-RING | 4 | |
| 5 | 4895244 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 6 | 4895305 | SEAL GASKET SEAL GASKET | 4 | |
| 7 | 504046196 | FUEL LINE FUEL LINE | 1 | |
| 8 | 98429625 | SPRING CLAMP SPRING CLAMP | 1 |
