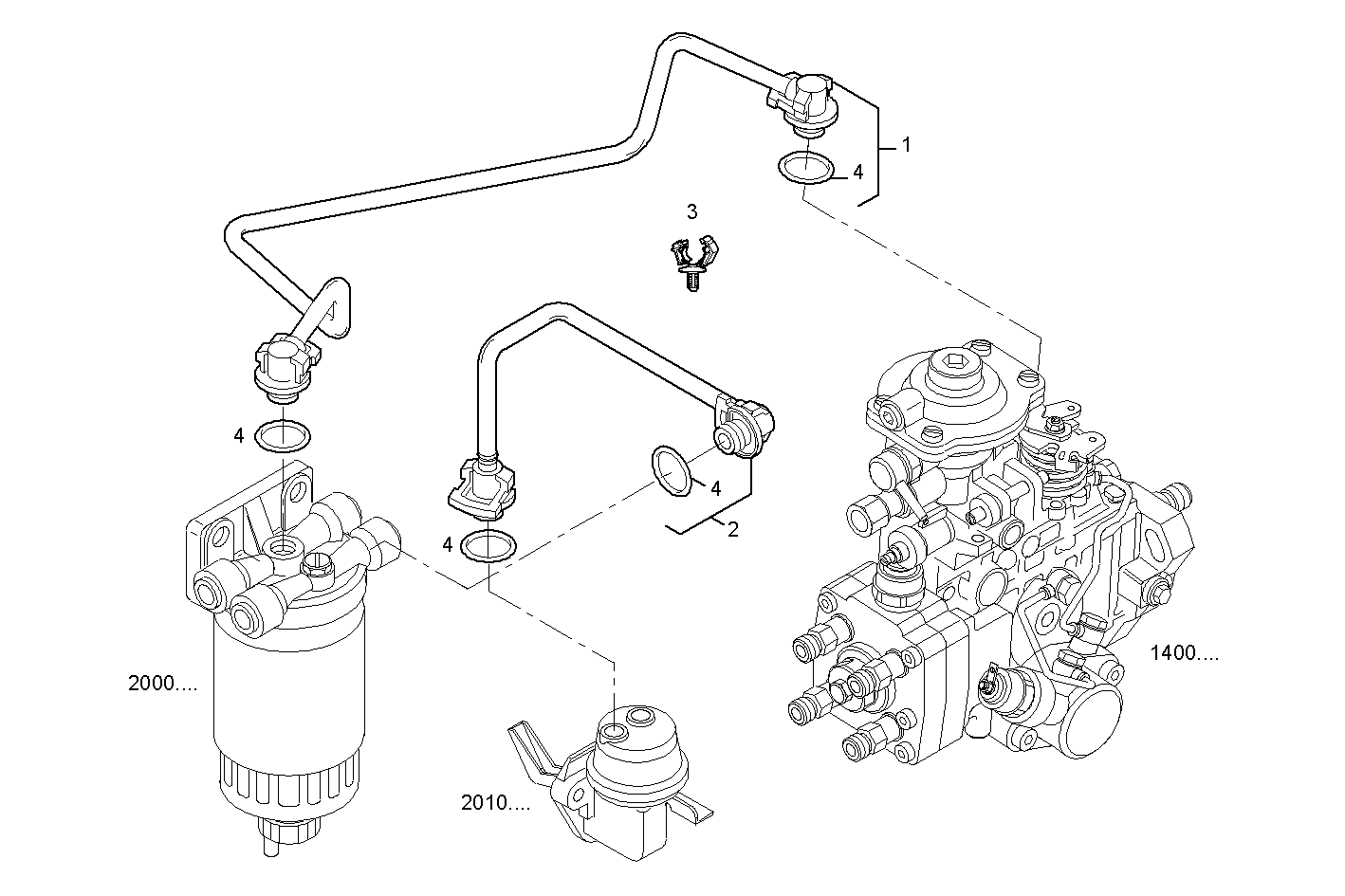

FUEL LINES
F4GE0404B*D650 — NEF 4 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504057288 | FUEL PIPES FUEL PIPES | 1 | |
| 2 | 504025720 | FUEL LINE FUEL LINE | 1 | |
| 3 | 504065285 | SPRING CLAMP SPRING CLAMP | 1 | |
| 4 | 4894095 | O-RING O-RING | 4 |
F4GE0404B*D650 — NEF 4 mechanic. - TIER 2
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504057288 | FUEL PIPES FUEL PIPES | 1 | |
| 2 | 504025720 | FUEL LINE FUEL LINE | 1 | |
| 3 | 504065285 | SPRING CLAMP SPRING CLAMP | 1 | |
| 4 | 4894095 | O-RING O-RING | 4 |
