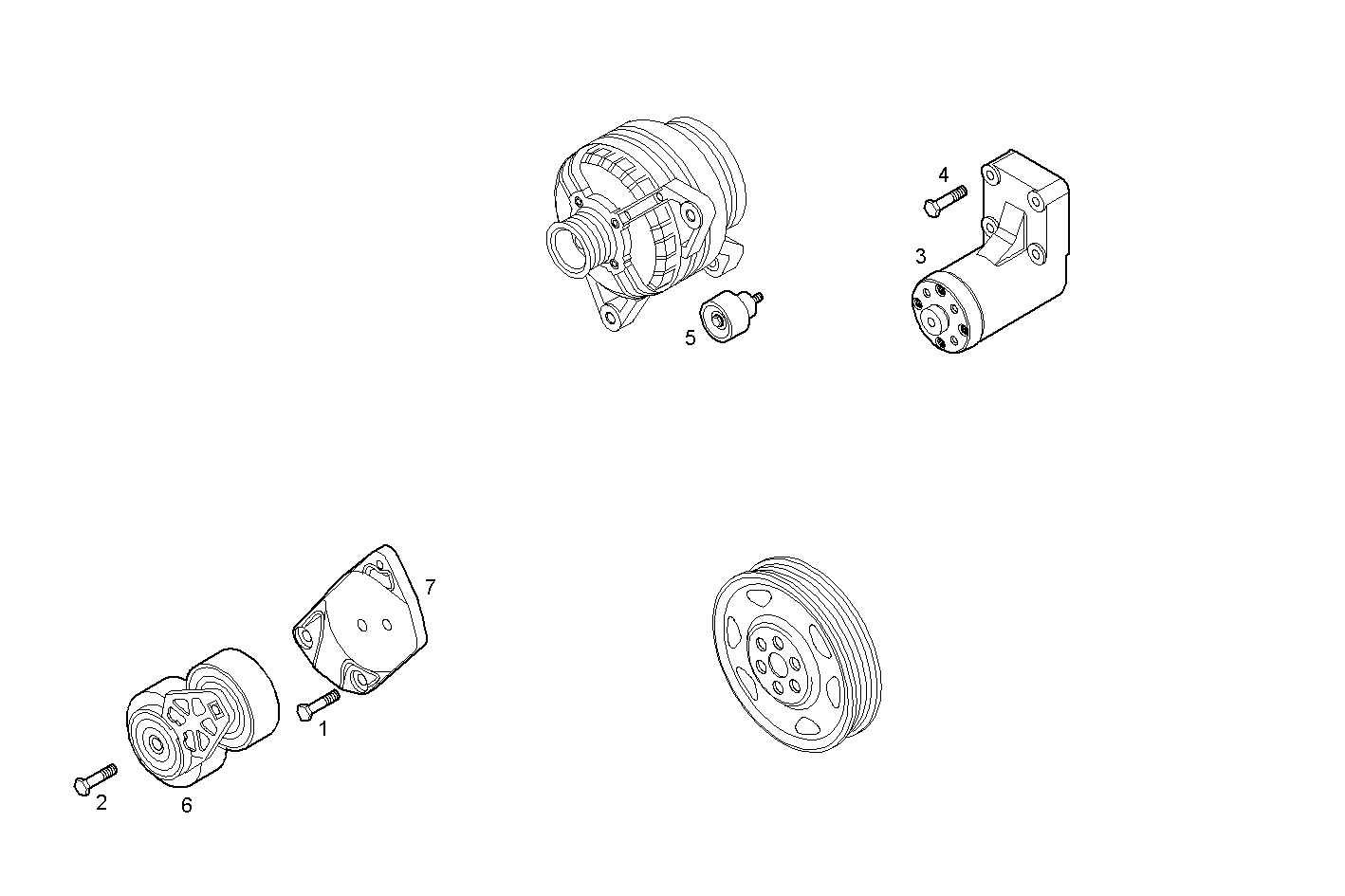

WATER PUMP DRIVE
F4GE0404B*D650 — NEF 4 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4899031 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 4899109 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 3 | 504035148 | SUPPORT SUPPORT | 1 | |
| 4 | 4899053 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 504065880 | PULLEY PULLEY | 1 | |
| 6 | 504028028 | BELT TENSIONER BELT TENSIONER | 1 | |
| 7 | 504064340 | SUPPORT SUPPORT | 1 |
