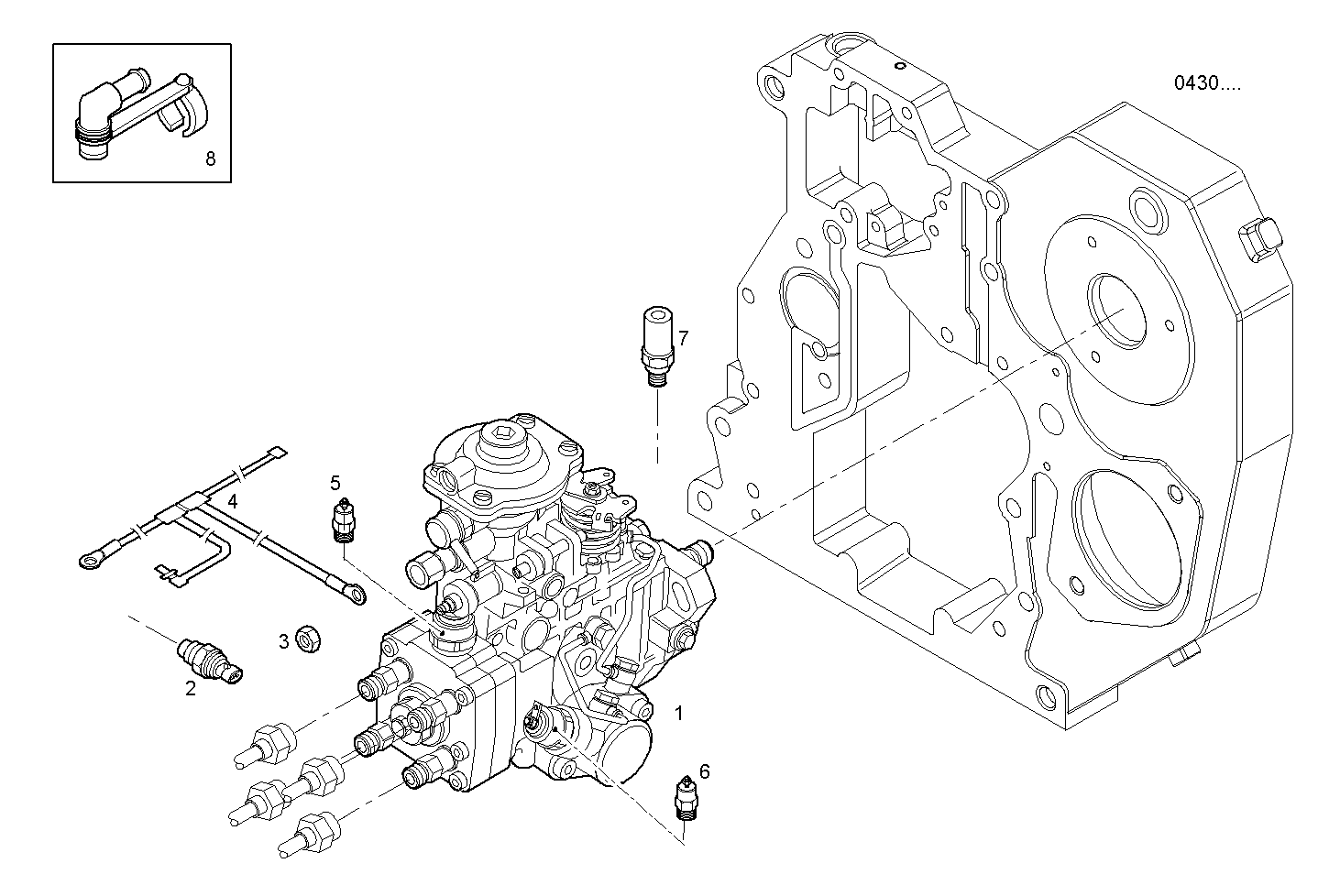

INJECTION PUMP ASSY
N45MNSE00.00A002 — NEF 4 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504048467 | DISTRIB.INJ.PUMP DISTRIB.INJ.PUMP | 1 | |
| 2 | 504032877 | SENSOR SENSOR | 1 | |
| 3 | 16979231 | HEXAGON NUT HEXAGON NUT | 2 | |
| 4 | 504060728 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 42533181 | ELECTROVALVE ELECTROVALVE | 1 | |
| 6 | 93192974 | MAGNETO MAGNETO | 1 | |
| 7 | 8094678 | THREADED UNION THREADED UNION | 1 | |
| 8 | 8034419 | ELBOW COUPLING ELBOW COUPLING | 1 |
