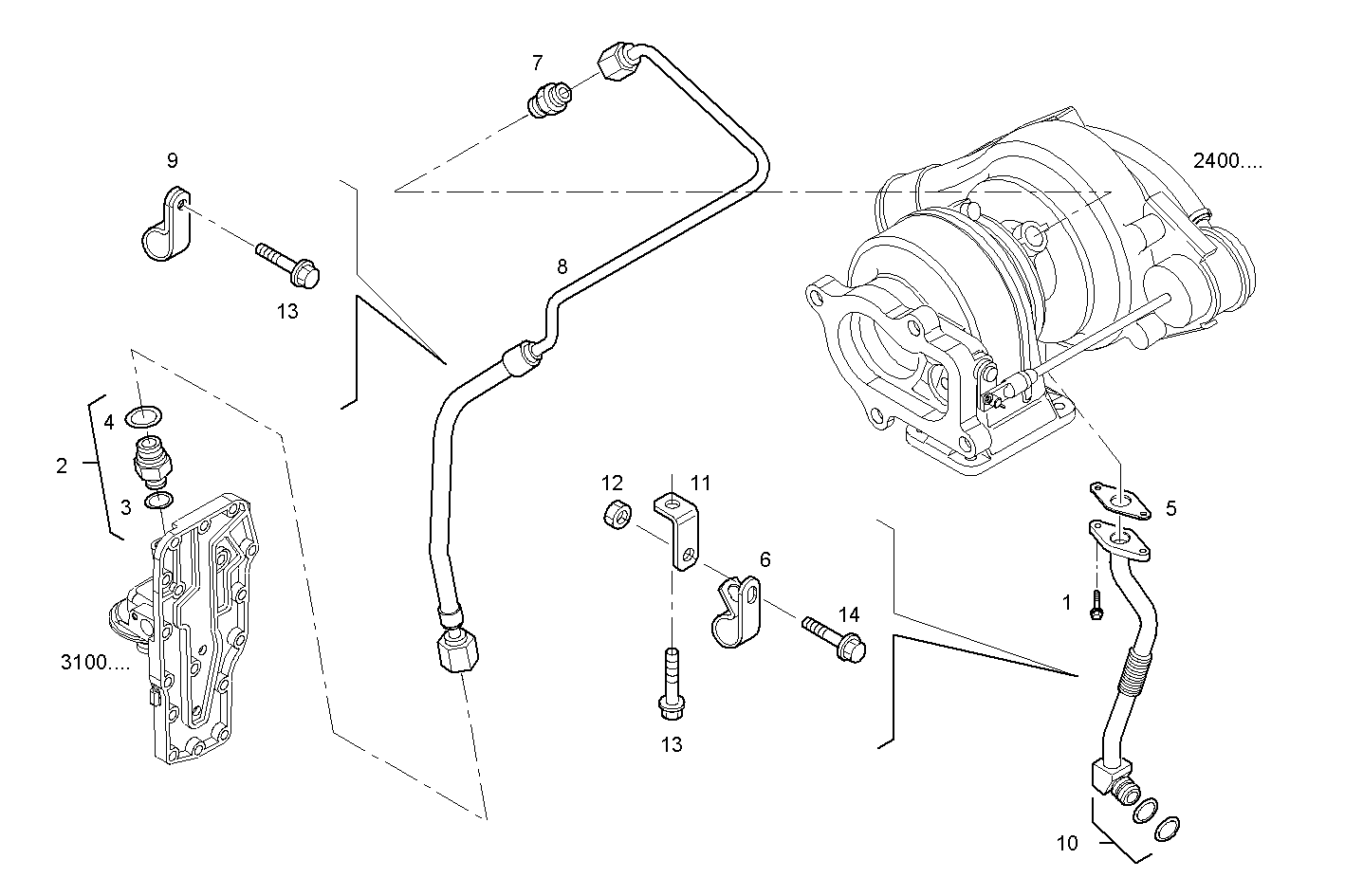

LUBE OIL LINES
N45MNTD20.00A002 — NEF 4 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4895164 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 4895107 | THREADED UNION THREADED UNION | 1 | |
| 3 | 4899107 | O-RING O-RING | 1 | |
| 4 | 4899108 | O-RING O-RING | 1 | |
| 5 | 4899467 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4899519 | BRACKET BRACKET | 1 | |
| 7 | 504010815 | THREADED UNION THREADED UNION | 1 | |
| 8 | 504036457 | OIL LINE OIL LINE | 1 | |
| 9 | 17316399 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 10 | 504053911 | OIL LINE OIL LINE | 1 | |
| 11 | 504053894 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 12 | 4899003 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 16586225 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 1 |
