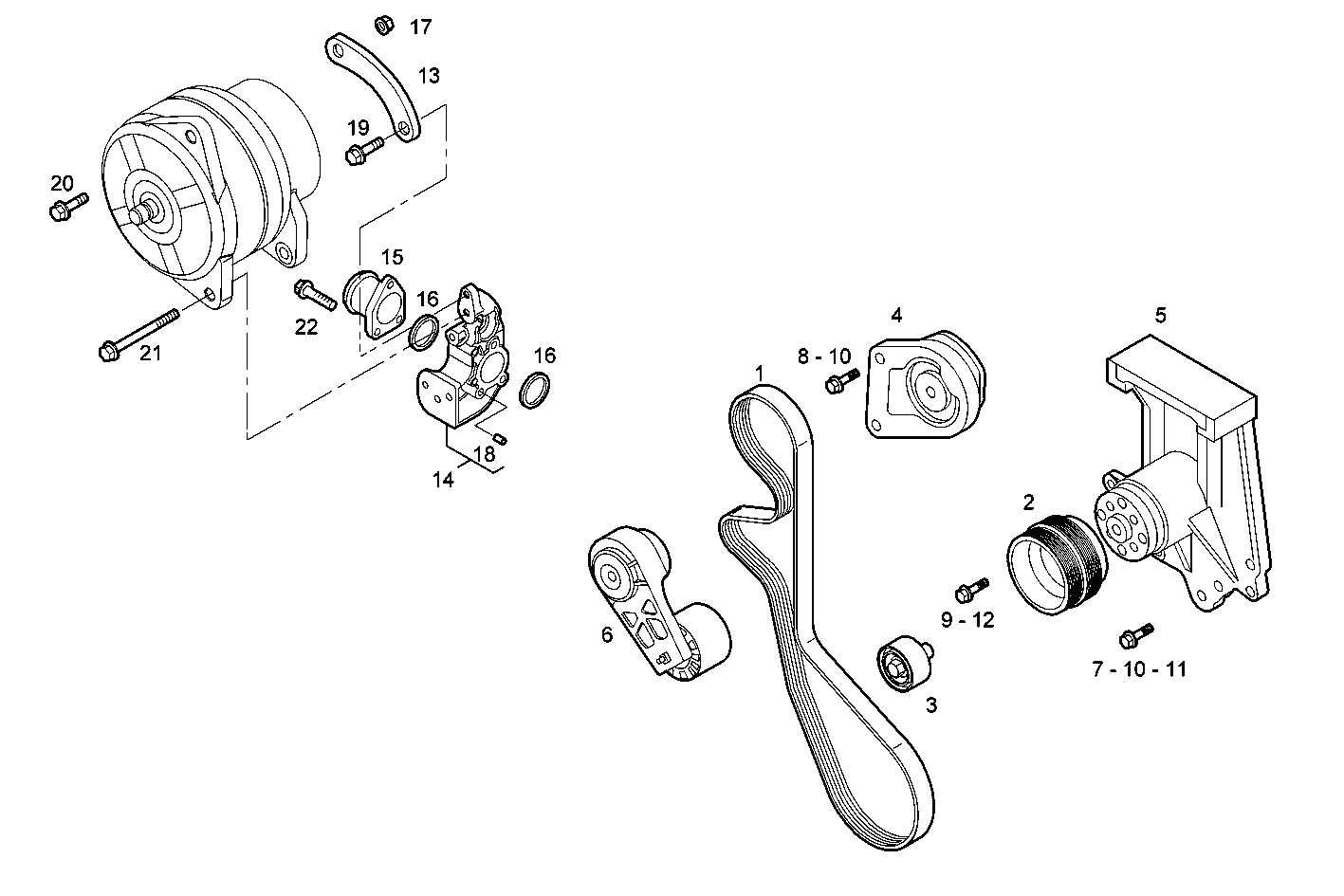

PREARRANGEMENT FOR FAN
N45MSSD00.50 — NEF 4 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 50038760 | V-BELT V-BELT | 1 | |
| 2 | 4899155 | PULLEY PULLEY | 1 | |
| 3 | 500390511 | PULLEY PULLEY | 1 | |
| 4 | 504044558 | SUPPORT SUPPORT | 1 | |
| 5 | 4893217 | SUPPORT SUPPORT | 1 | |
| 6 | 504028028 | BELT TENSIONER BELT TENSIONER | 1 | |
| 7 | 4895323 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 4895292 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 16587525 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 11 | 16673835 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 4899032 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 13 | 4893840 | RETAINER RETAINER | 1 | |
| 14 | 500387647 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 15 | 504018245 | WATER PIPE WATER PIPE | 1 | |
| 16 | 504062710 | WASHER WASHER | 2 | |
| 17 | 4895166 | HEXAGON NUT HEXAGON NUT | 1 | |
| 18 | 4895576 | DOWEL PIN DOWEL PIN | 2 | |
| 19 | 4895291 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 20 | 4899093 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 4899122 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 22 | 16592925 | HEXAGON BOLT HEXAGON BOLT | 3 |
