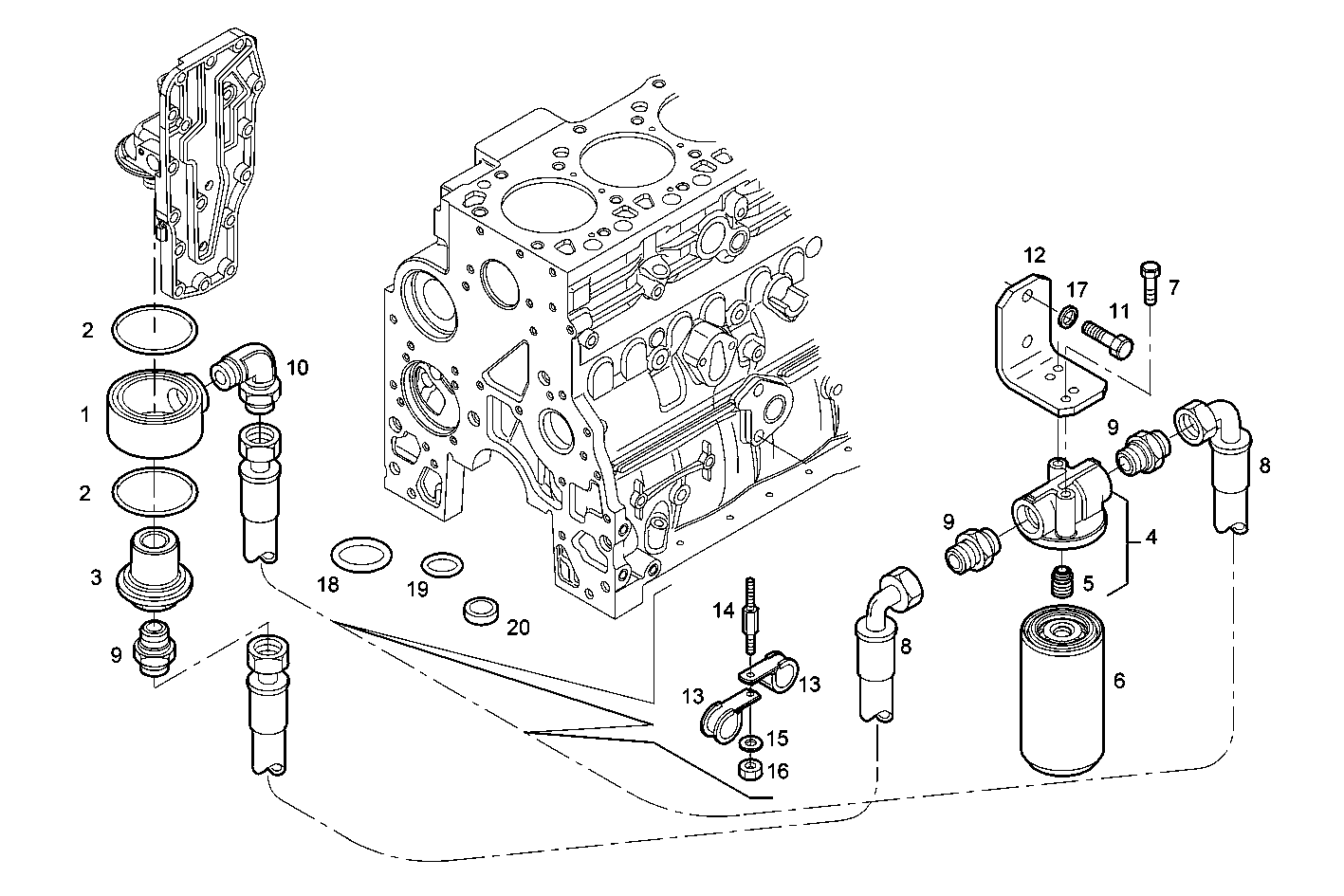

OIL FILTERS
N45MSTD20.50 — NEF 4 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500389886 | SUPPORT SUPPORT | 1 | |
| 2 | 17290181 | O-RING O-RING | 2 | |
| 3 | 500396330 | THREADED UNION THREADED UNION | 1 | |
| 4 | 504039282 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 5 | 4893391 | THREADED UNION THREADED UNION | 1 | |
| 6 | 2992242 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 7 | 16586325 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 504008148 | HOSE HOSE | 2 | |
| 9 | 8031468 | THREADED UNION THREADED UNION | 3 | |
| 10 | 8031805 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 11 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 504043539 | RETAINER RETAINER | 1 | |
| 13 | 504031832 | FASTENING BRACKET FASTENING BRACKET | 4 | |
| 14 | 8036424 | SCREW SCREW | 2 | |
| 15 | 17089574 | WASHER WASHER | 2 | |
| 16 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 | |
| 17 | 17091074 | WASHER WASHER | 2 | |
| 18 | 17278581 | O-RING O-RING | 2 | |
| 19 | 17288381 | O-RING O-RING | 2 | |
| 20 | 17088574 | WASHER WASHER | 2 |
