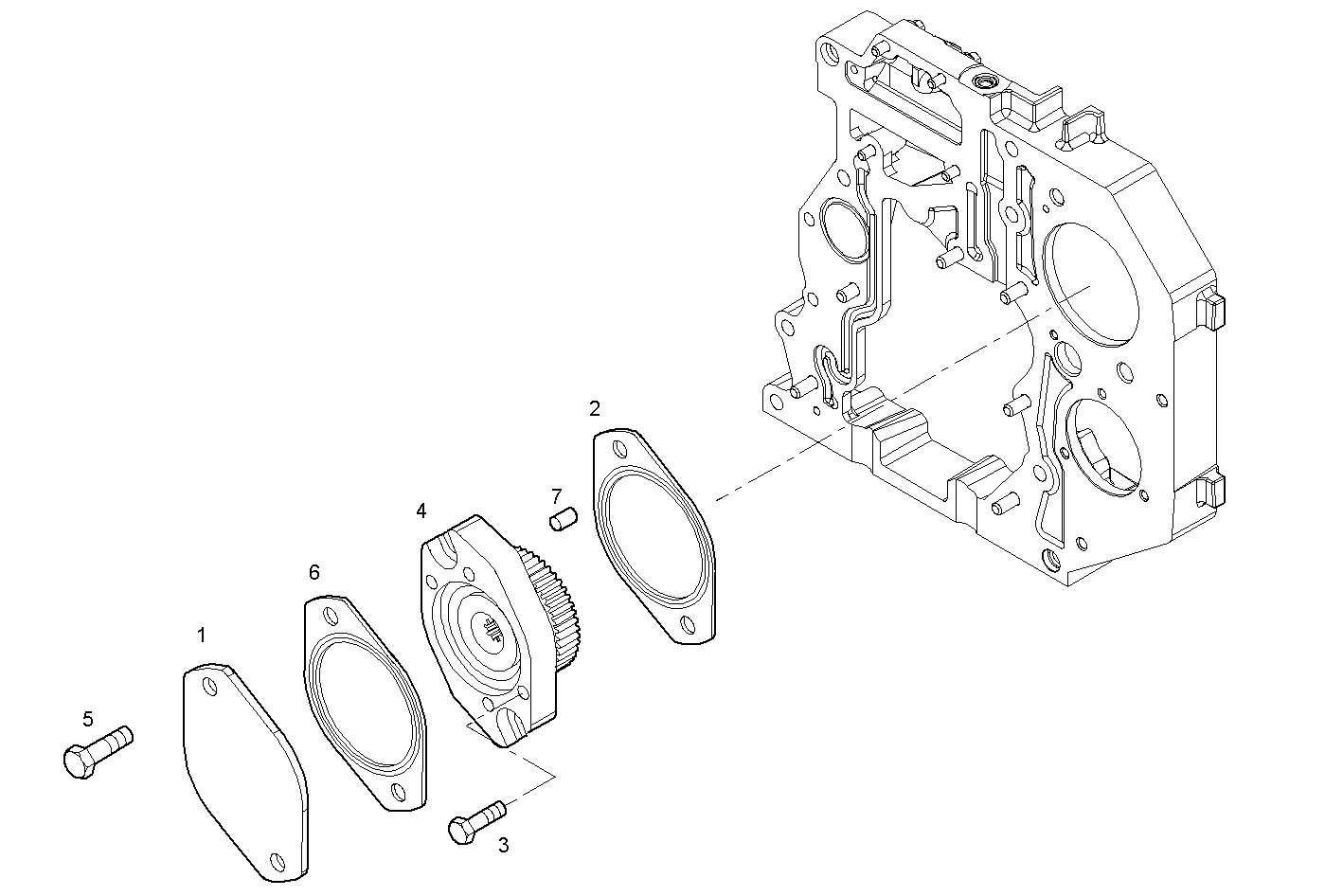

ARRANGED FOR HYDRAULIC PUMP
N45MSTD22.50 — NEF 4 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504024782 | COVER COVER | 1 | |
| 2 | 4896897 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16678135 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 504074770 | POWER TAKE OFF POWER TAKE OFF | 1 | |
| 5 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 504024783 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 504074786 | DOWEL PIN DOWEL PIN | 1 |
