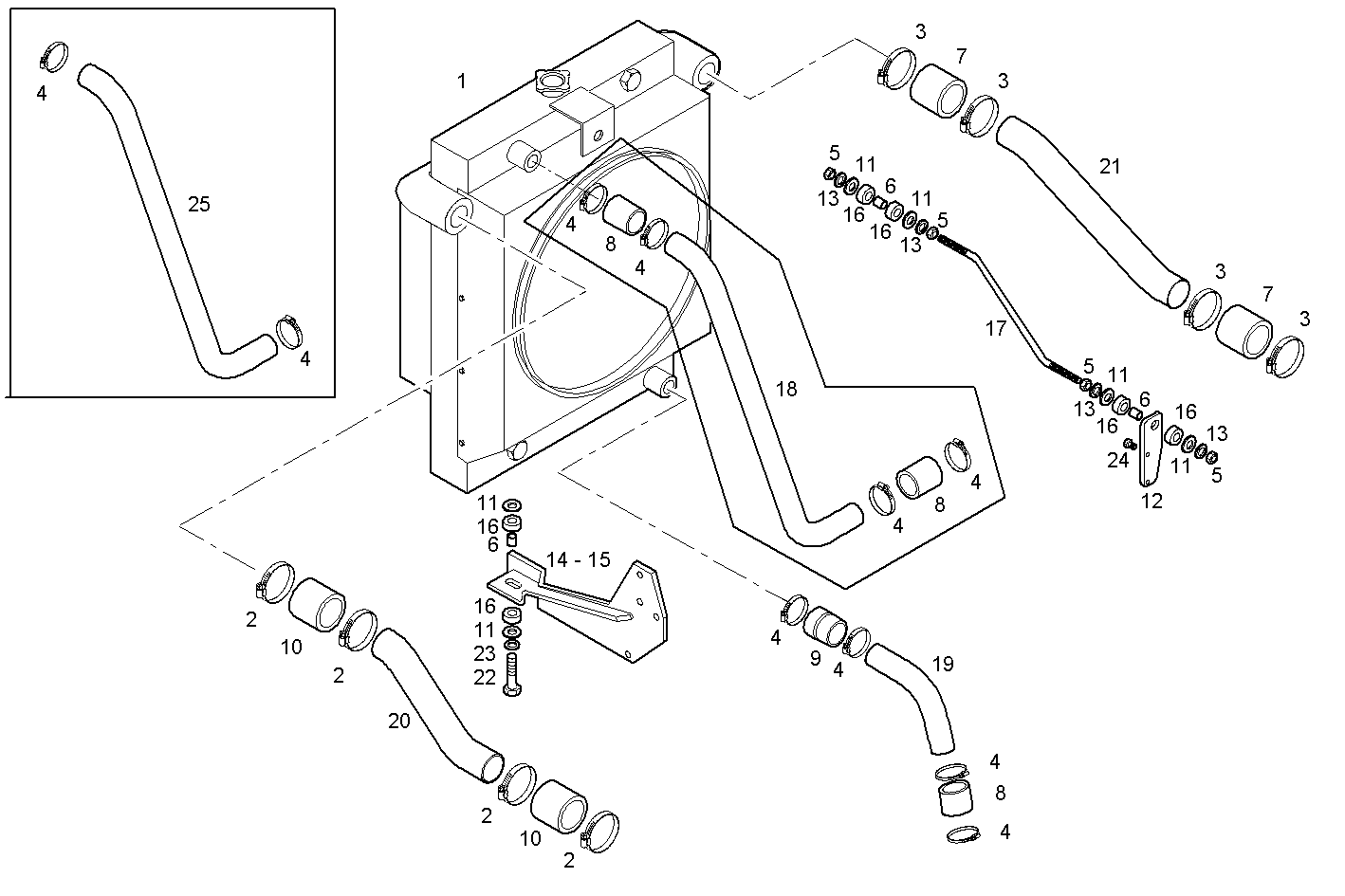

RADIATOR 2 CIRCUITS AIR/WATER
N45MNTX20.00 — NEF 4 mechanic. - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8034774 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 17765191 | CLIP CLIP | 4 | |
| 3 | 18089191 | CLIP CLIP | 4 | |
| 4 | 17764991 | CLIP CLIP | 8 | |
| 5 | 17038425 | HEXAGON NUT HEXAGON NUT | 4 | |
| 6 | 741571 | SPACING BAR SPACING BAR | 4 | |
| 7 | 8036376 | WATER HOSE WATER HOSE | 2 | |
| 8 | 4863960 | WATER HOSE WATER HOSE | 3 | |
| 9 | 8036102 | WATER HOSE WATER HOSE | 1 | |
| 10 | 4863960 | WATER HOSE WATER HOSE | 3 | |
| 11 | 741570 | WASHER WASHER | 8 | |
| 12 | 8033610 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 13 | 17091074 | WASHER WASHER | 4 | |
| 14 | 8034789 | SUPPORT SUPPORT | 1 | |
| 15 | 8034790 | SUPPORT SUPPORT | 1 | |
| 16 | 741569 | RUBBER PAD RUBBER PAD | 6 | |
| 17 | 8033596 | TIE ROD TIE ROD | 1 | |
| 18 | 8035801 | WATER PIPE WATER PIPE | 1 | |
| 19 | 8033603 | WATER PIPE WATER PIPE | 1 | |
| 20 | 8036099 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 21 | 8036101 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 22 | 16608525 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 23 | 17090274 | WASHER WASHER | 2 | |
| 24 | 16586425 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 25 | 8045294 | WATER HOSE WATER HOSE | 1 |
