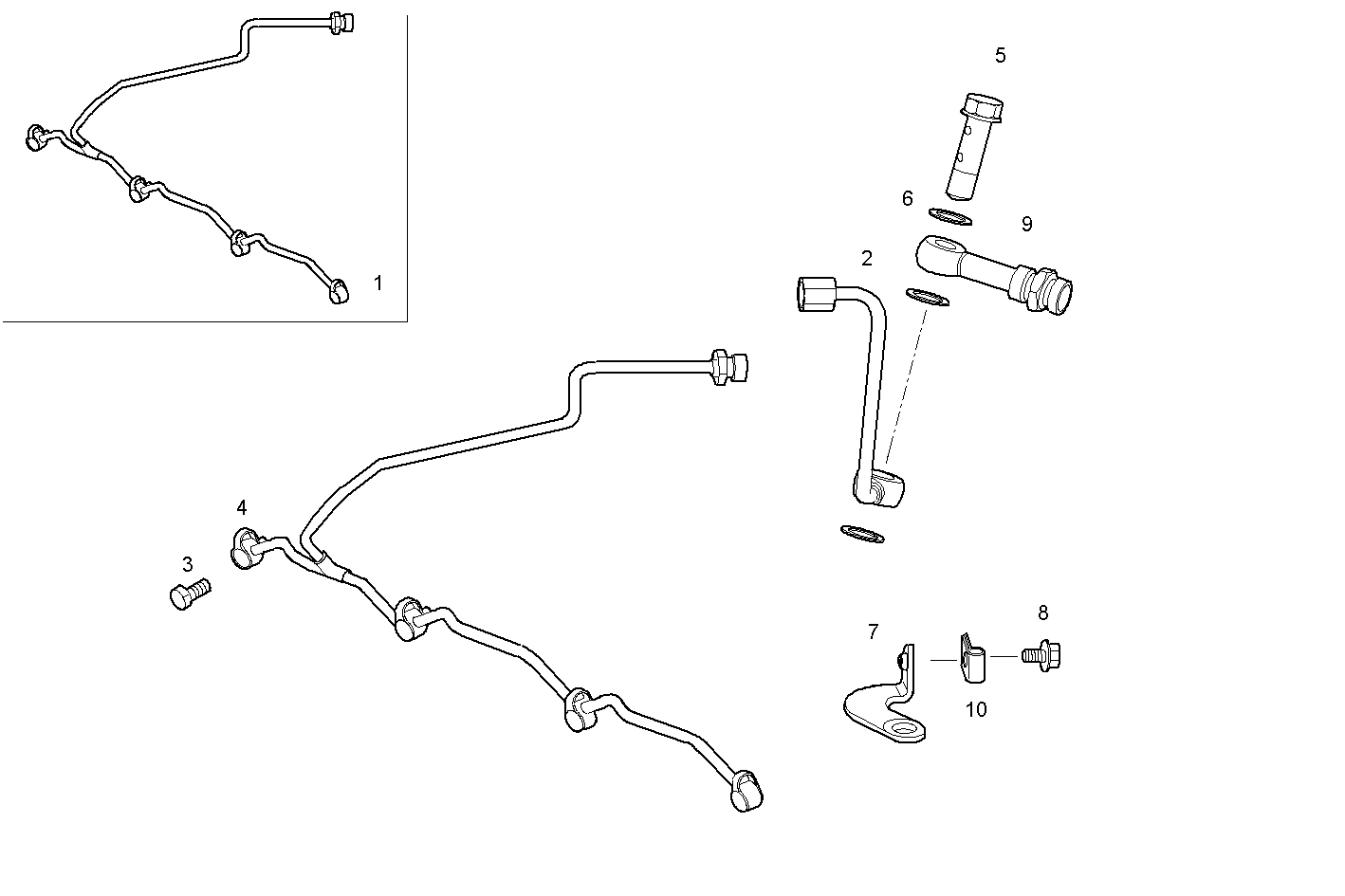

FUEL LINES
F4GE0487A*B600 — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504118529 | FUEL LINE FUEL LINE | 1 | |
| 2 | 504148572 | FUEL LINE FUEL LINE | 1 | |
| 3 | 4895244 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 4 | 4895305 | SEAL GASKET SEAL GASKET | 4 | |
| 5 | 8016191 | BANJO BOLT BANJO BOLT | 1 | |
| 6 | 98474306 | WASHER WASHER | 3 | |
| 7 | 504148574 | RETAINER RETAINER | 1 | |
| 8 | 16596924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 8029417 | BANJO COUPLING BANJO COUPLING | 1 | |
| 10 | 17314590 | RETAINER RETAINER | 1 |
