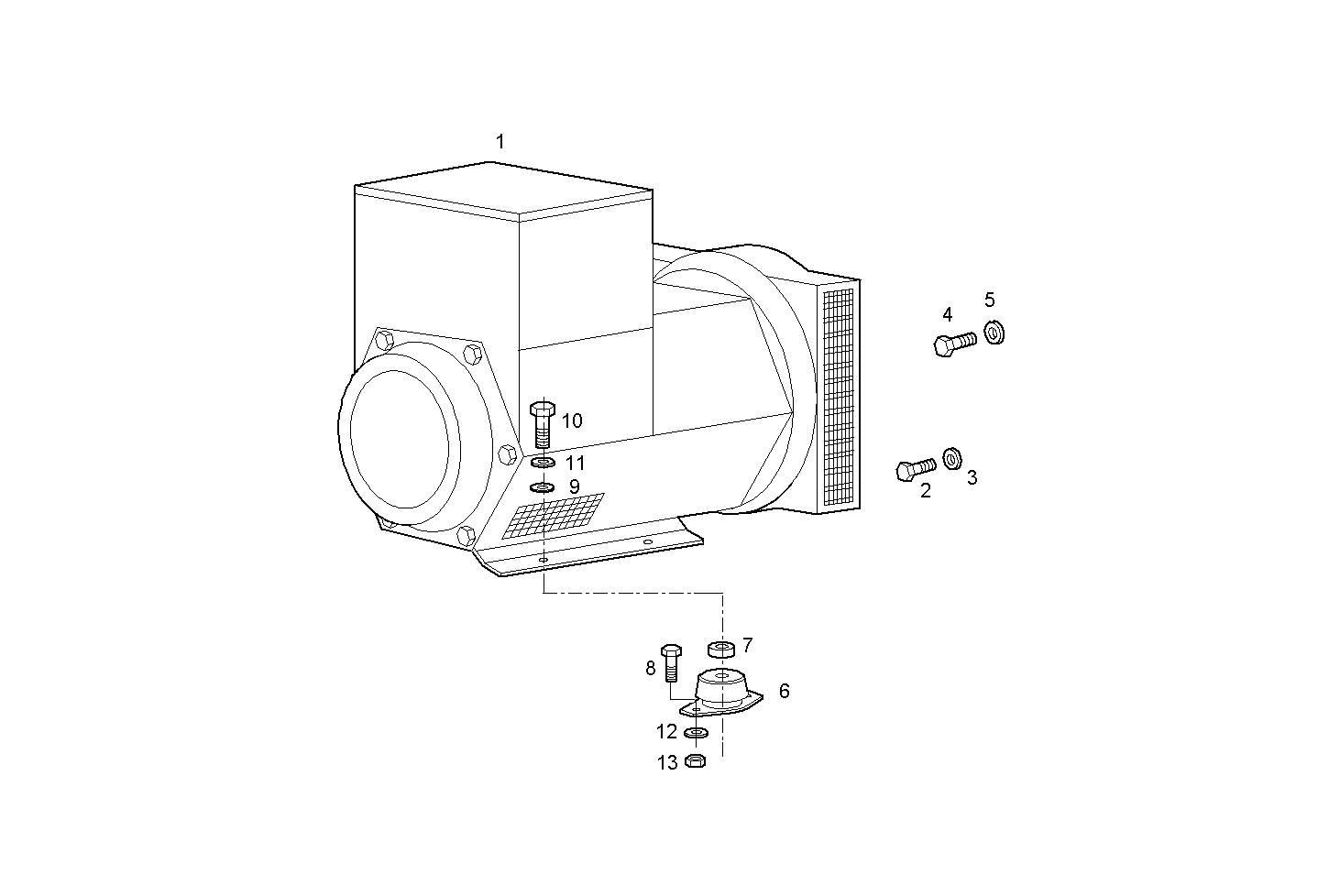

ELECTRIC MACHINE
GENEF100M.R980 — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 503113049 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 16619124 | SCREW SCREW | 8 | |
| 5 | 17798374 | SPRING WASHER SPRING WASHER | 8 | |
| 6 | 503111672 | RUBBER PAD RUBBER PAD | 2 | |
| 7 | 503112944 | SPACING BAR SPACING BAR | 2 | |
| 8 | 16607734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 17095724 | WASHER WASHER | 2 | |
| 10 | 16614824 | SCREW SCREW | 2 | |
| 11 | 17092174 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 17090474 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 17038125 | NUT NUT | 4 |
