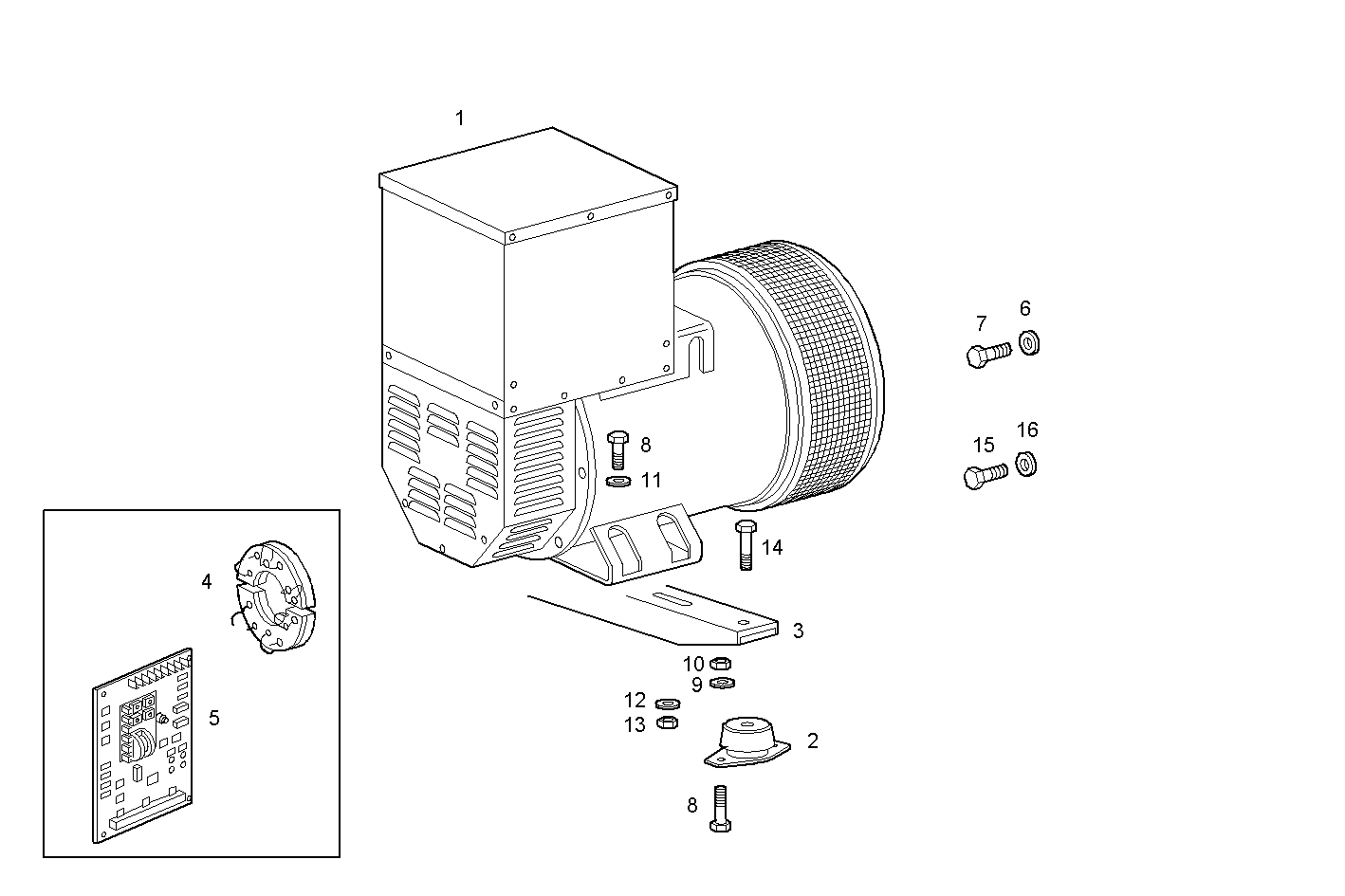

ELECTRIC MACHINE
GENEF45M-5.A71M — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8027352 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 503111672 | RUBBER PAD RUBBER PAD | 2 | |
| 3 | 503113378 | TIE TIE | 1 | |
| 4 | 8093763 | EL.MACH.DIODE BRIDGE EL.MACH.DIODE BRIDGE | 1 | |
| 5 | 8093717 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 | |
| 6 | 17494934 | WASHER WASHER | 8 | |
| 7 | 16619124 | SCREW SCREW | 8 | |
| 8 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 17090474 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 17038131 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 17095724 | WASHER WASHER | 2 | |
| 12 | 17092174 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 17038925 | NUT NUT | 2 | |
| 14 | 16614524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 12 |
