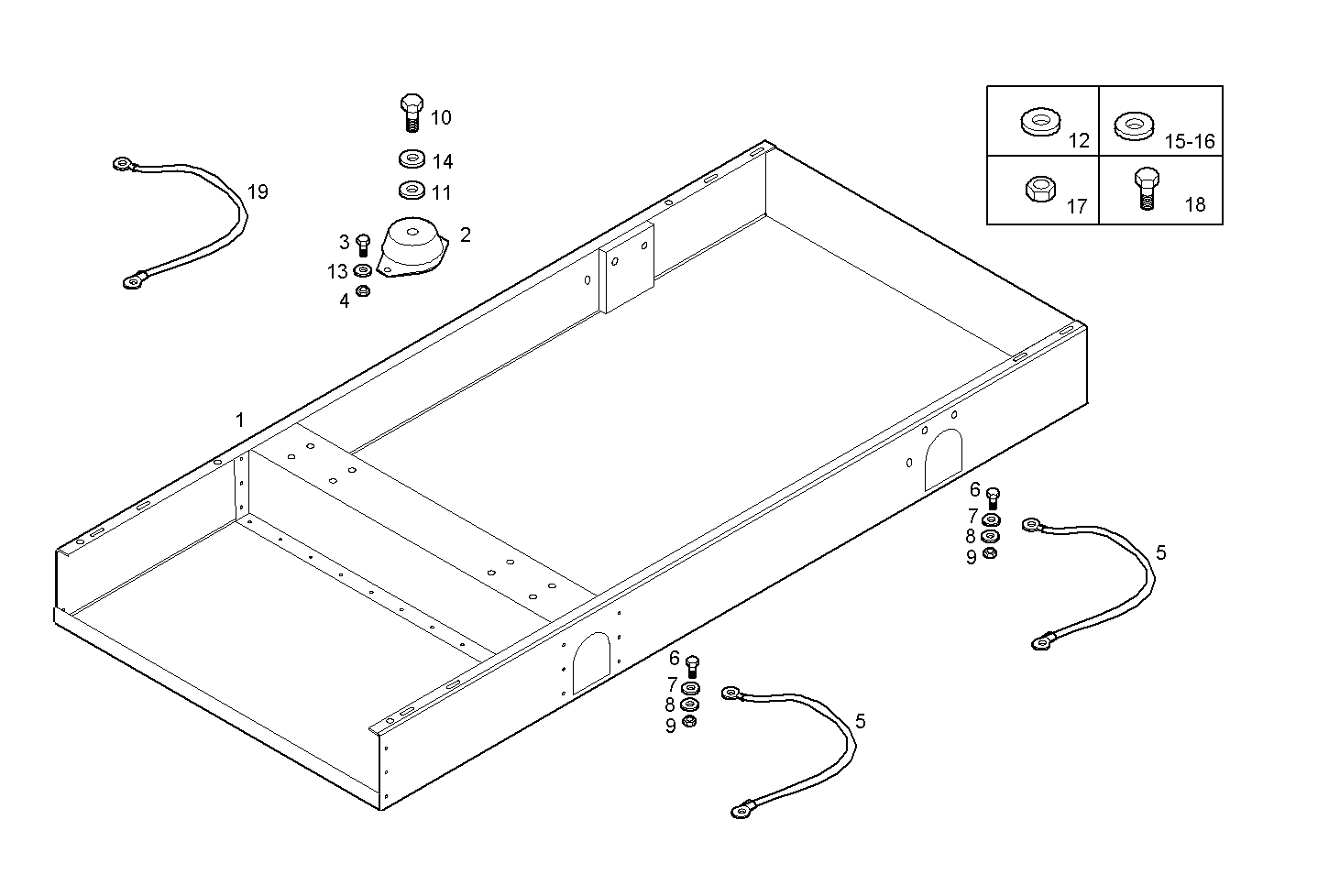

SUBBASE FOR GENERATOR UNIT
GENEF60M.R980 — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 503113177 | SUBBSAE-SUPPORT FRAME SUBBSAE-SUPPORT FRAME | 1 | |
| 2 | 503111673 | RUBBER PAD RUBBER PAD | 2 | |
| 3 | 16607625 | SCREW SCREW | 4 | |
| 4 | 17038125 | NUT NUT | 4 | |
| 5 | 8031723 | EARTH WIRE EARTH WIRE | 2 | |
| 6 | 16609725 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 17094724 | WASHER WASHER | 4 | |
| 8 | 17710074 | WASHER WASHER | 4 | |
| 9 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 16614934 | SCREW SCREW | 2 | |
| 11 | 17092174 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 17091074 | WASHER WASHER | 4 | |
| 13 | 17090474 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 17095724 | WASHER WASHER | 2 | |
| 15 | 17095304 | WASHER WASHER | 4 | |
| 16 | 17710374 | WASHER WASHER | 4 | |
| 17 | 17038425 | HEXAGON NUT HEXAGON NUT | 6 | |
| 18 | 16609825 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 19 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 |
