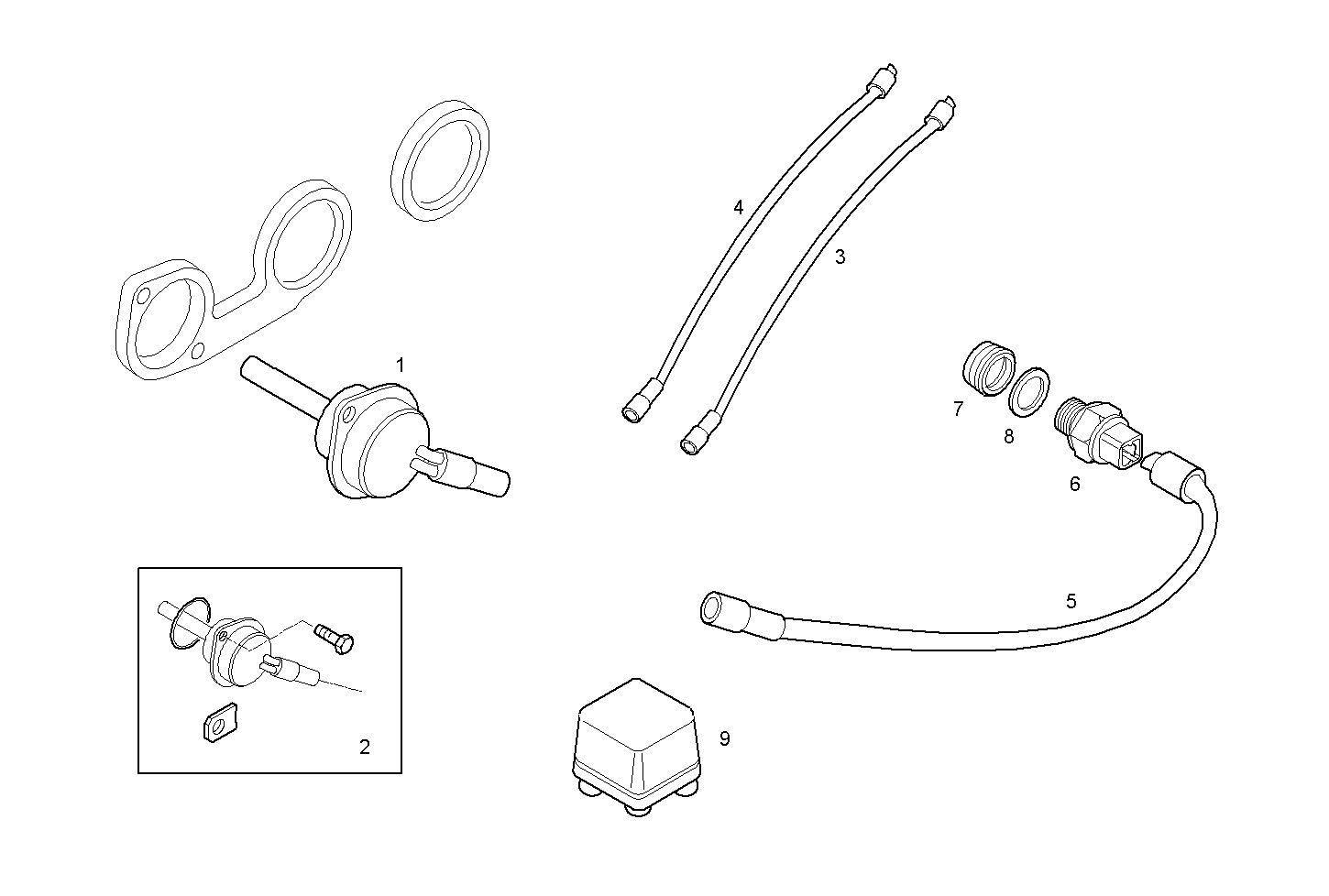

WATER PREHEATER DEVICE - 230V
GENEF75M-5.A71M — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8038705 | HEATER HEATER | 1 | |
| 2 | 8094793 | KIT KIT | 1 | |
| 3 | 8038507 | WIRE/CABLE WIRE/CABLE | 1 | |
| 4 | 503111089 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 504084179 | WIRE/CABLE WIRE/CABLE | 1 | |
| 6 | 8038597 | THERMOSWITCH THERMOSWITCH | 1 | |
| 7 | 8033022 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 8038599 | RELAY RELAY | 1 |
