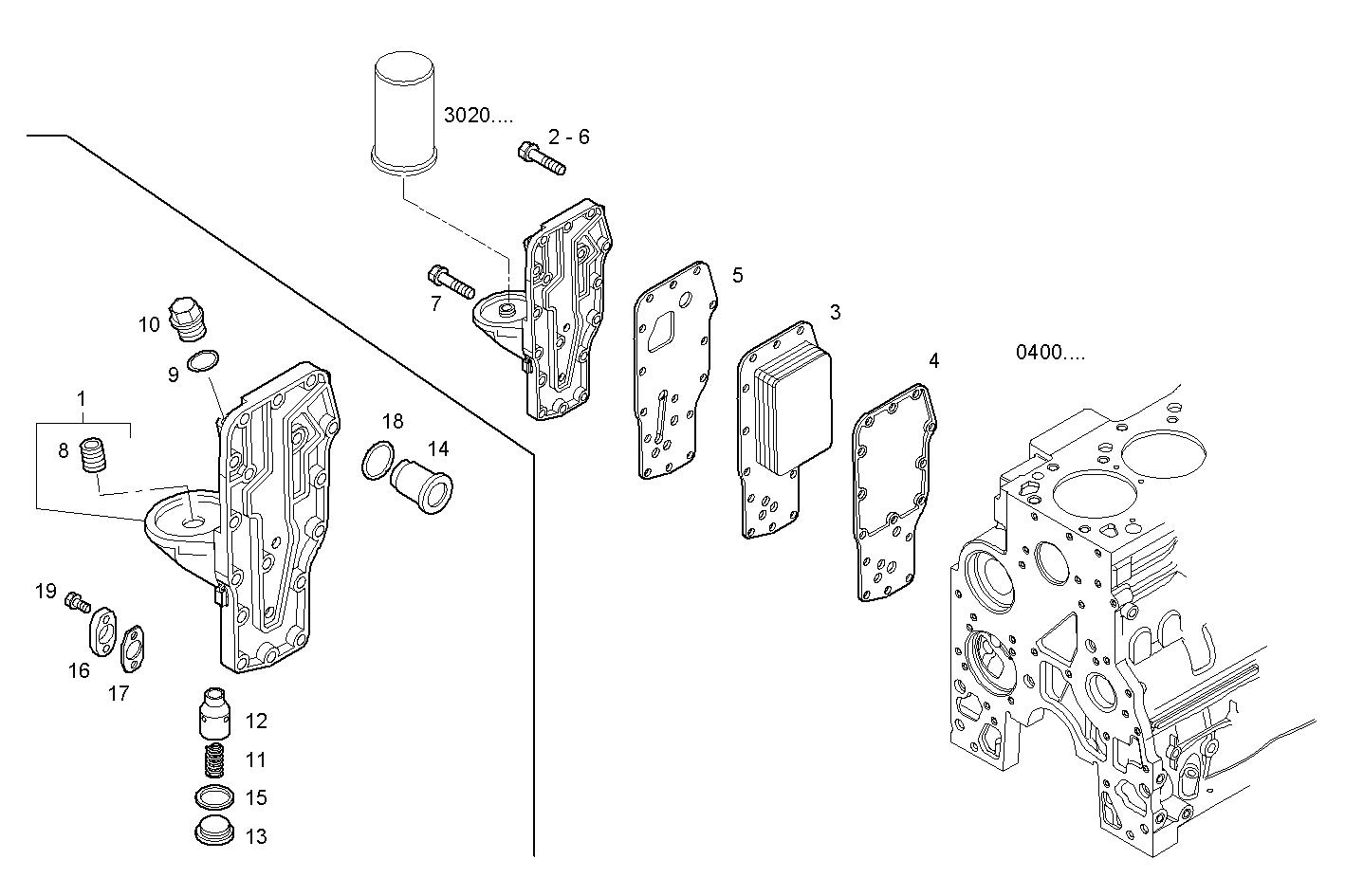

OIL - WATER HEAT EXCHANGER
N45MNAM10.00 — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504132320 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 2 | 4899019 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 3 | 504047616 | OIL COOLER OIL COOLER | 1 | |
| 4 | 2830559 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 2831317 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4899041 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 16598324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 4893391 | THREADED UNION THREADED UNION | 1 | |
| 9 | 4858607 | WASHER WASHER | 1 | |
| 10 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 11 | 4895045 | VALVE SPRING VALVE SPRING | 1 | |
| 12 | 4896404 | VALVE HOUSING VALVE HOUSING | 1 | |
| 13 | 504096409 | THREADED PLUG THREADED PLUG | 1 | |
| 14 | 4896410 | VALVE VALVE | 1 | |
| 15 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 16 | 8036953 | COVER COVER | 1 | |
| 17 | 8037176 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 18 | 17916280 | O-RING O-RING | 1 | |
| 19 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 2 |
