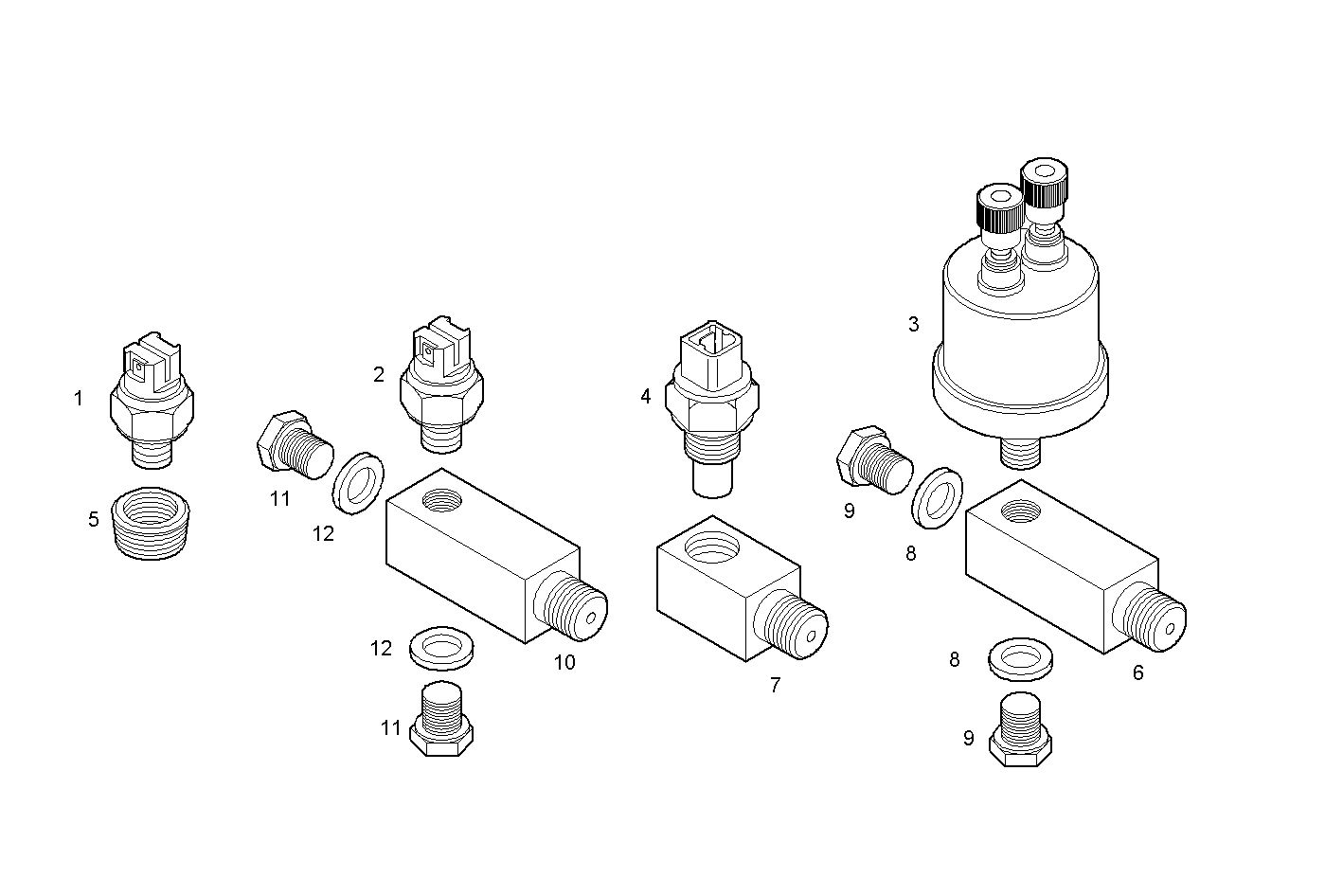

SENDER UNITS ALARMS INSTRUMENT - 12/24V
N45MNAM10.00 — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8114030 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8046585 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 503110072 | TRANSMITTER TRANSMITTER | 1 | |
| 4 | 8031886 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 8033022 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 8038680 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 8034938 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 16550760 | GASKET GASKET | 2 | |
| 9 | 16992111 | THREADED PLUG THREADED PLUG | 2 | |
| 10 | 8039492 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 12 | 16508060 | SEAL GASKET SEAL GASKET | 2 |
