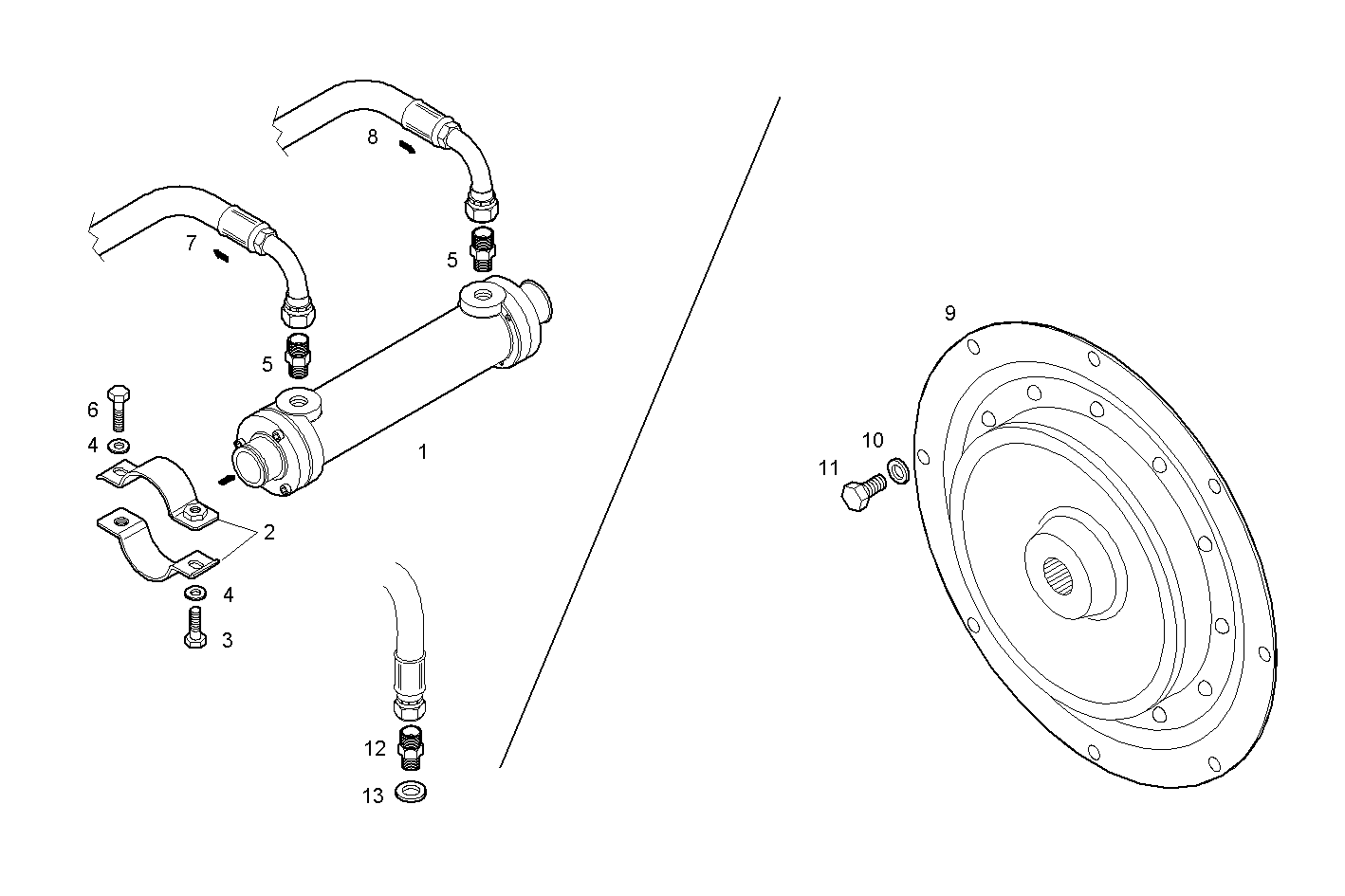

ARRANGED FOR TM MARINE GEAR
N45MNAM10.01 — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 2 | 8039731 | CLIP CLIP | 2 | |
| 3 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 16605724 | SCREW SCREW | 2 | |
| 7 | 4935779 | HOSE HOSE | 1 | |
| 8 | 8105620 | HOSE HOSE | 1 | |
| 9 | 8005343 | FLEXPLATE FLEXPLATE | 1 | |
| 10 | 17798374 | SPRING WASHER SPRING WASHER | 8 | |
| 11 | 15970524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 12 | 8023701 | PIPE SOCKET PIPE SOCKET | 2 | |
| 13 | 11270460 | GASKET GASKET | 2 |
