NEF 4 mechanic./N45MNAM10.01/DOUBLE WALL INJECTION PIPES

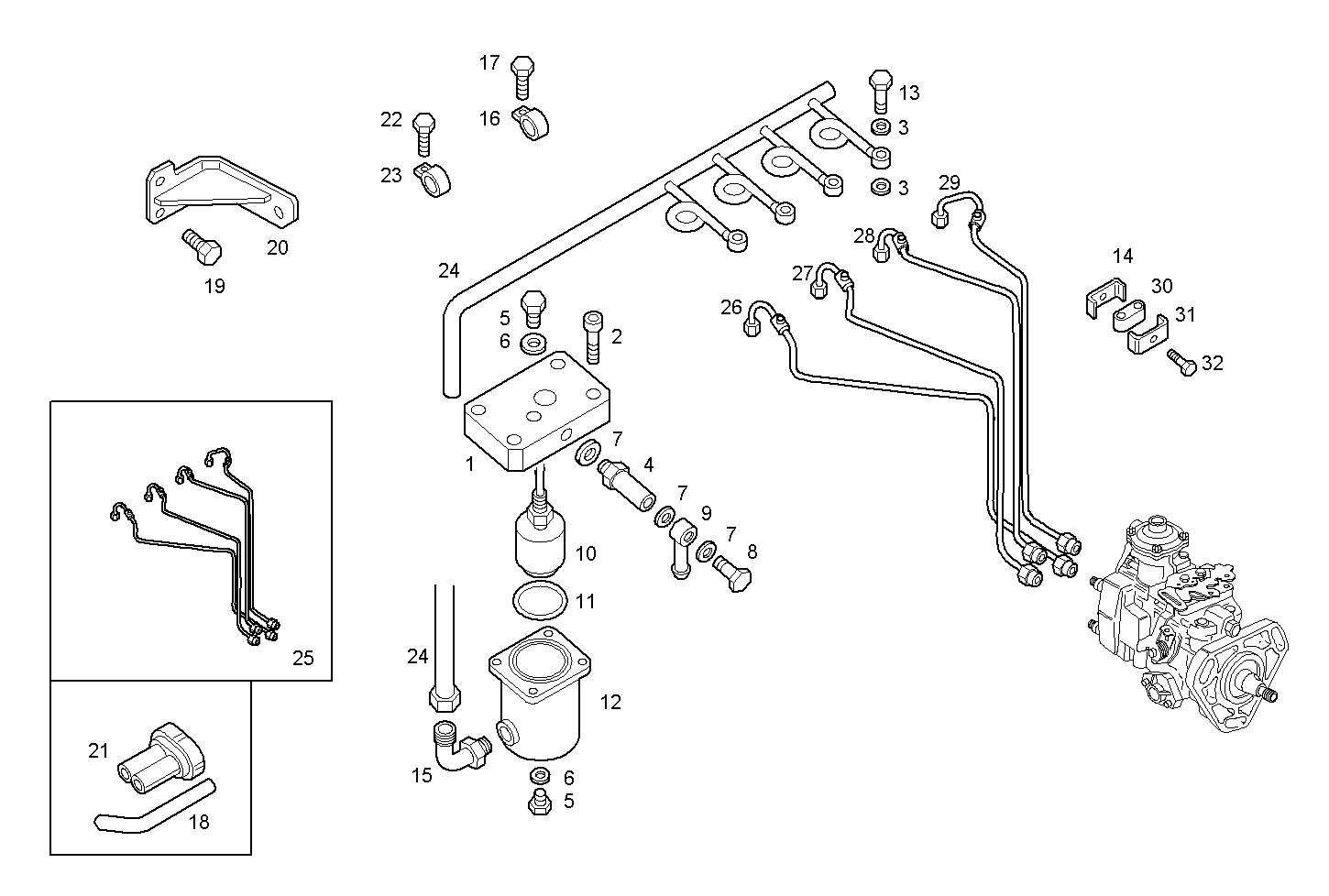

DOUBLE WALL INJECTION PIPES

N45MNAM10.01 — NEF 4 mechanic.

Parts List

#	Part No	Name / Description	Qty
1	8020291	DISTRIBUTOR DISTRIBUTOR	1
2	16689424	SOCKET-HEAD SCREW SOCKET-HEAD SCREW	4
3	98474303	WASHER WASHER	8
4	8102465	VALVE VALVE	1
5	16992211	THREADED PLUG THREADED PLUG	2
6	4858607	WASHER WASHER	2
7	4858608	SEAL GASKET SEAL GASKET	4
8	4864083	SCREW CONNECTOR SCREW CONNECTOR	1
9	98404882	PIPE SOCKET PIPE SOCKET	1
10	8102285	INDICATOR INDICATOR	1
11	17290081	O-RING O-RING	1
12	8026365	TANK TANK	1
13	4864078	BANJO BOLT BANJO BOLT	4
14	4659222	CLAMP CLAMP	2
15	8025927	ELBOW COUPLING ELBOW COUPLING	1
16	10450090	PIPE CLIP PIPE CLIP	1
17	18137825	HEXAGON BOLT HEXAGON BOLT	1
18	19120680	LINER LINER	1
19	16588025	HEXAGON BOLT HEXAGON BOLT	2
20	8038159	FASTENING BRACKET FASTENING BRACKET	1
21	8031968	WIRE CONNECTOR WIRE CONNECTOR	1
22	16586224	HEXAGON BOLT HEXAGON BOLT	2
23	17316490	CLIP CLIP	2
24	8041363	INJECTION LINE INJECTION LINE	1
25	8040950	INJECTION LINES SET INJECTION LINES SET	1
26	8040951	INJECTION LINE INJECTION LINE	1
27	8040952	INJECTION LINE INJECTION LINE	1
28	8040953	INJECTION LINE INJECTION LINE	1
29	8040954	INJECTION LINE INJECTION LINE	1
30	4659220	DOWEL DOWEL	2
31	4659221	CLIP CLIP	2
32	16585325	HEXAGON BOLT HEXAGON BOLT	4
