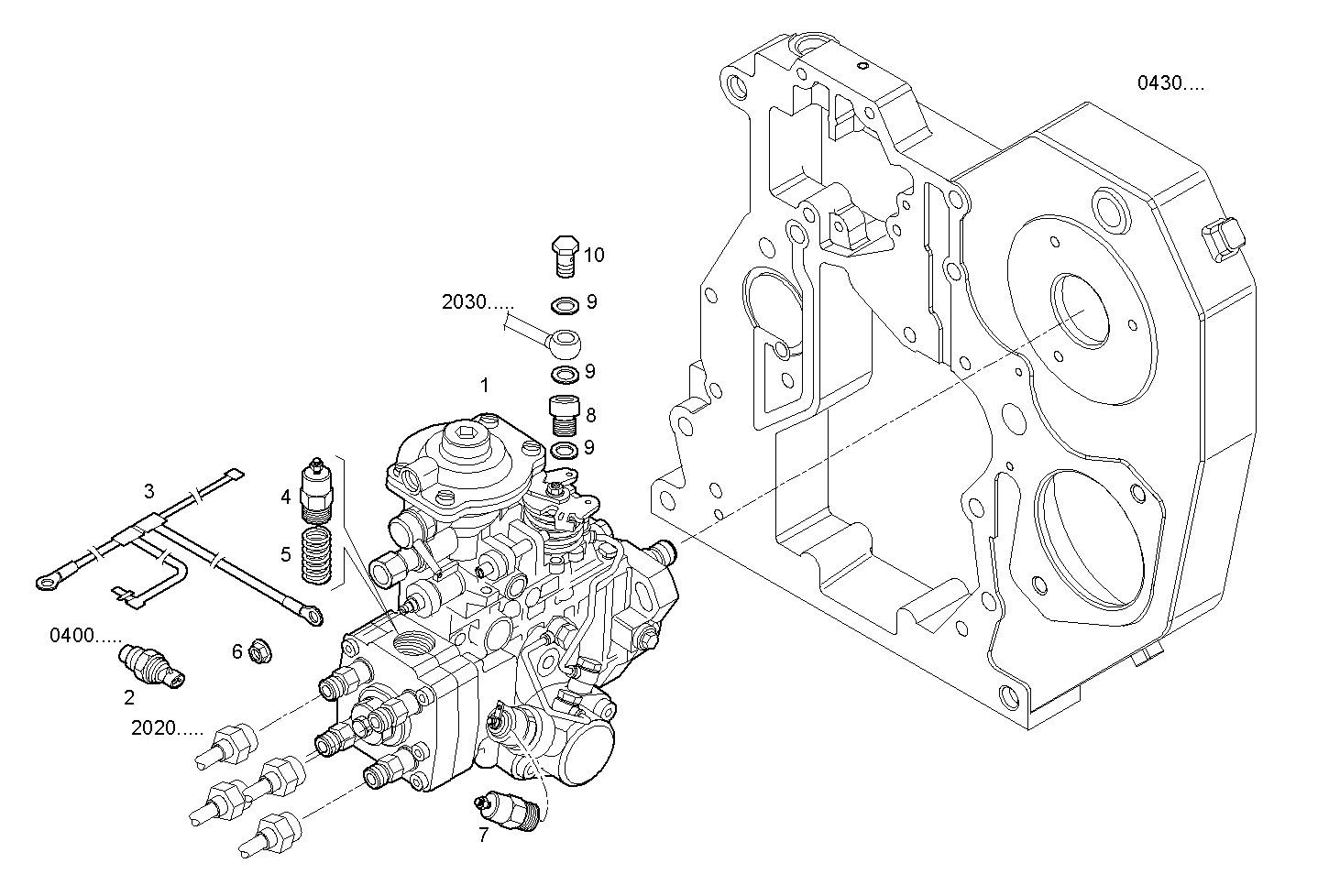

INJECTION PUMP ASSY
N45MNAM10.01 — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504100484 | DISTRIB.INJ.PUMP DISTRIB.INJ.PUMP | 1 | |
| 2 | 504032877 | SENSOR SENSOR | 1 | |
| 3 | 504060728 | WIRE/CABLE WIRE/CABLE | 1 | |
| 4 | 8107346 | ELECTROVALVE ELECTROVALVE | 1 | |
| 5 | 8032965 | SPRING SPRING | 1 | |
| 6 | 16979231 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 93192974 | MAGNETO MAGNETO | 1 | |
| 8 | 99476542 | THREADED UNION THREADED UNION | 1 | |
| 9 | 99489017 | SEAL GASKET SEAL GASKET | 3 | |
| 10 | 4864082 | BANJO BOLT BANJO BOLT | 1 |
