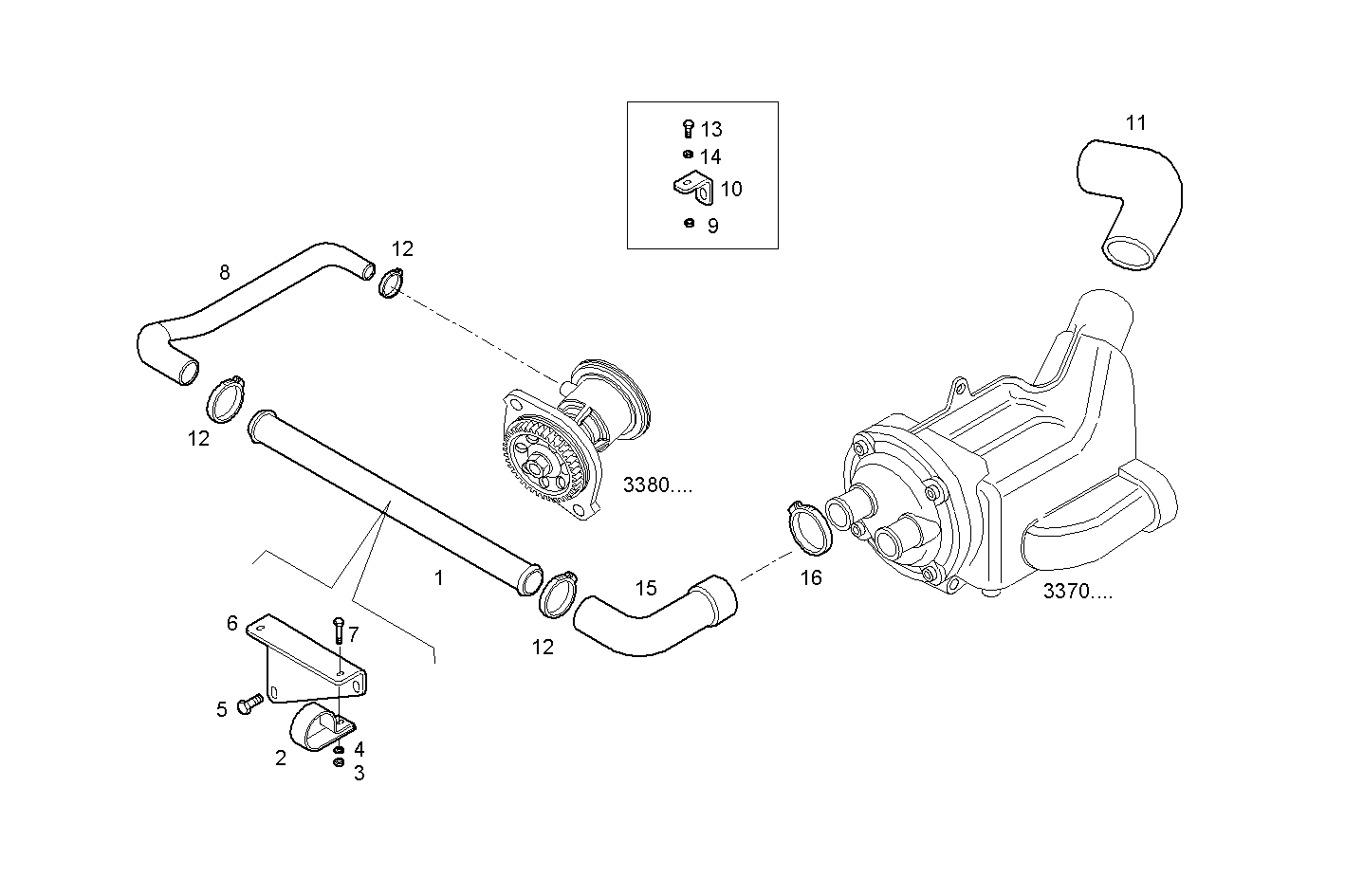

SEA WATER LINES
N45MNAM10.01 — NEF 4 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8039374 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 2 | 8103077 | CLIP CLIP | 2 | |
| 3 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 | |
| 4 | 17094914 | WASHER WASHER | 4 | |
| 5 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 8039259 | RETAINER RETAINER | 1 | |
| 7 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 8043324 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 17038131 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 8039381 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 11 | 8016576 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 17764793 | CLIP CLIP | 3 | |
| 13 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 15 | 8039367 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 17764893 | CLIP CLIP | 1 |
