ELECTRIC WIRING
N45MNTF41.10 — NEF 4 mechanic.

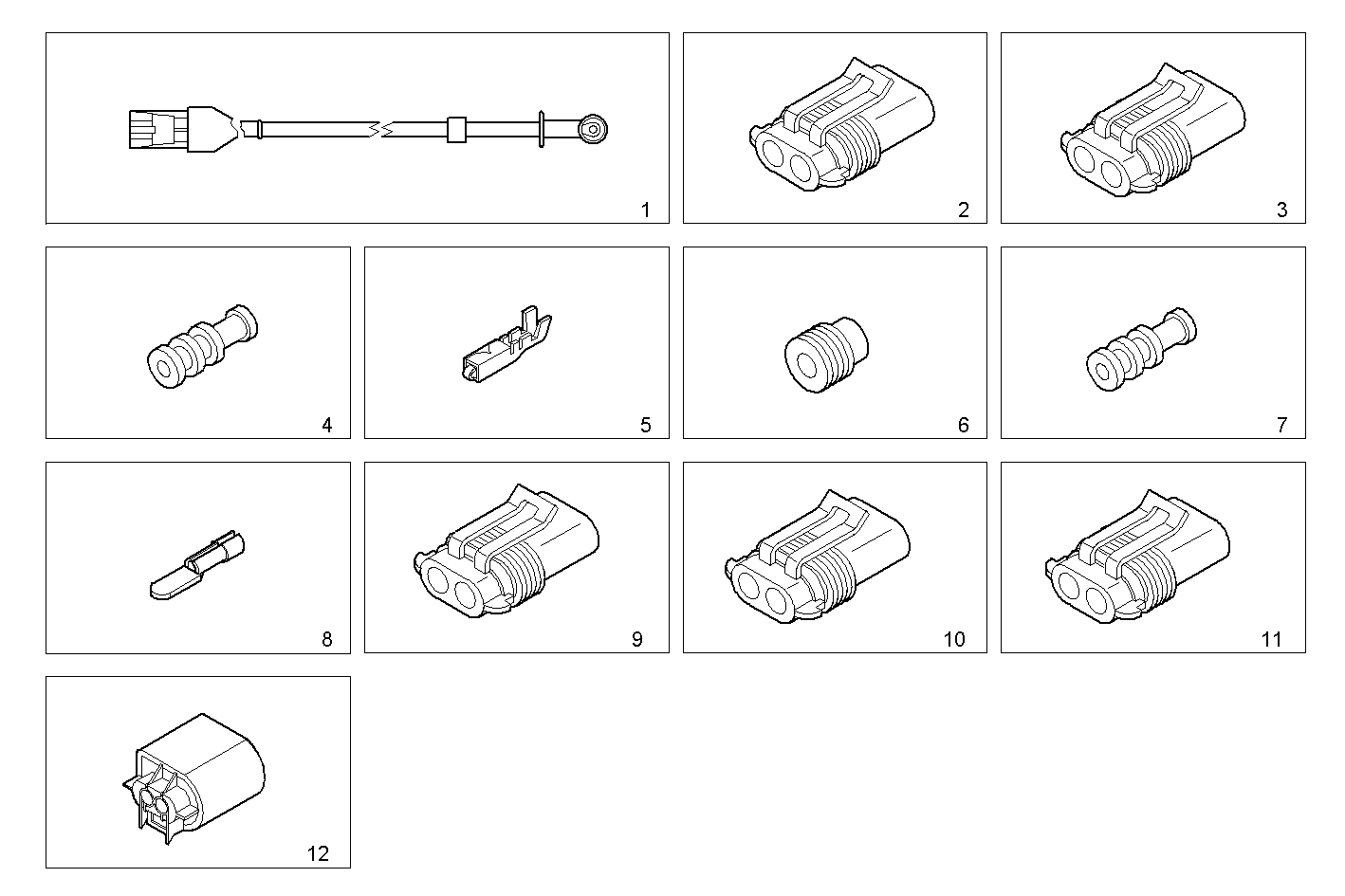

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037858 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 2 | 98435344 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 3 | 98435346 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 4 | 4861936 | RUBBER BUSH RUBBER BUSH | 5 | |
| 5 | 98435372 | TERMINAL TERMINAL | 5 | |
| 6 | 98420215 | PLUG PLUG | 2 | |
| 7 | 4835259 | GASKET GASKET | 2 | |
| 8 | 12309290 | TERMINAL TERMINAL | 2 | |
| 9 | 8042343 | CONNECTION CONNECTION | 1 | |
| 10 | 8042344 | CONNECTION CONNECTION | 1 | |
| 11 | 8033231 | CONNECTION CONNECTION | 1 | |
| 12 | 8030896 | CONNECTION CONNECTION | 1 |
