POWERING

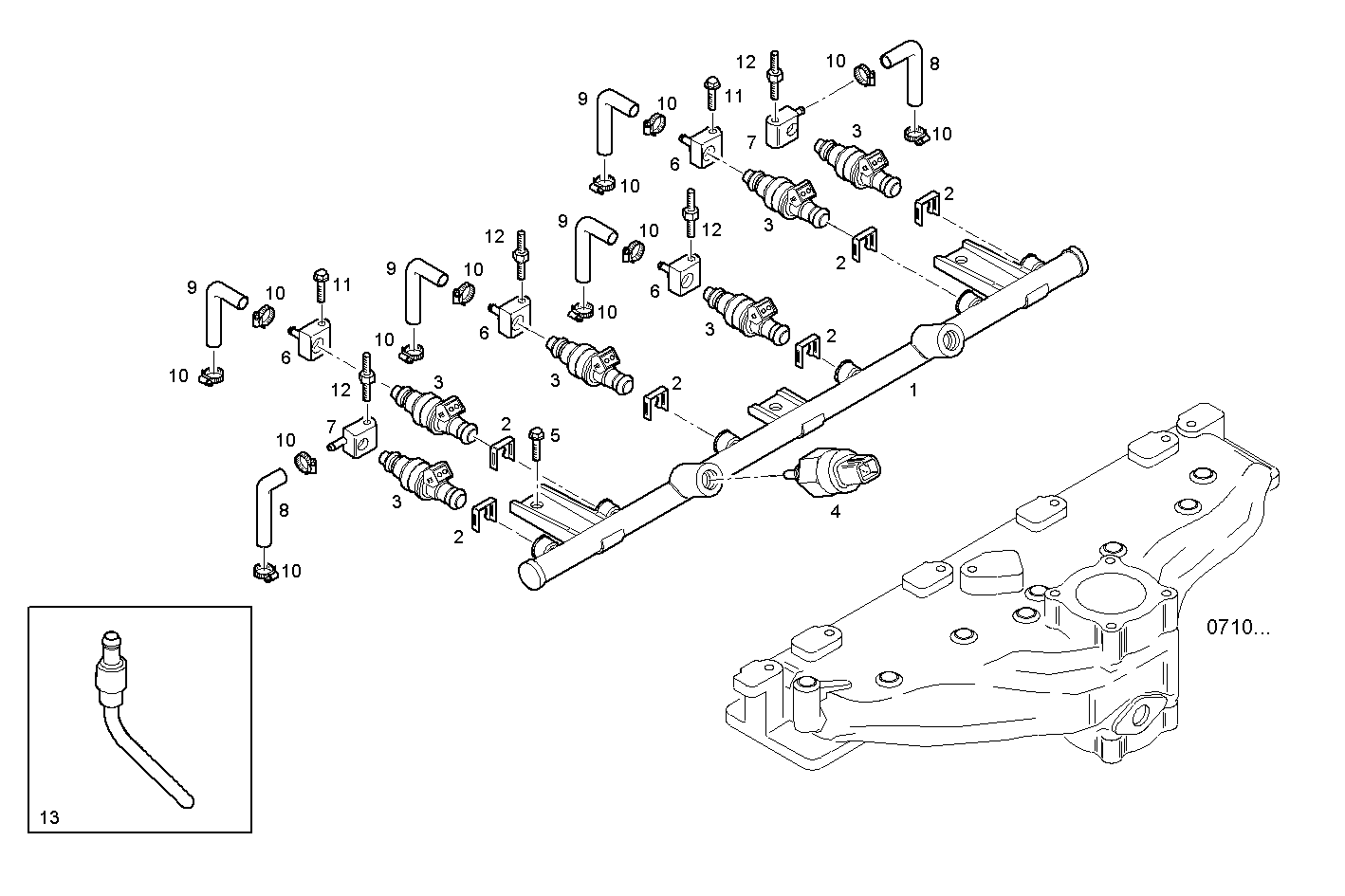

F4BE0641A*G102 — NEF 6 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504030010 | LINE LINE | 1 | |
| 2 | 504030013 | SPRING CLAMP SPRING CLAMP | 6 | |
| 3 | 504079794 | GAS MOTOR ELECT.INJ. GAS MOTOR ELECT.INJ. | 6 | |
| 4 | 504064371 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 5 | 4899068 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 504029930 | PIPE SOCKET PIPE SOCKET | 4 | |
| 7 | 504029931 | PIPE SOCKET PIPE SOCKET | 2 | |
| 8 | 504204110 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 9 | 504204111 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 10 | 504213201 | CLIP CLIP | 12 | |
| 11 | 16586925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 504071005 | SCREW SCREW | 4 | |
| 13 | 504029936 | PIPE SOCKET PIPE SOCKET | 6 |
