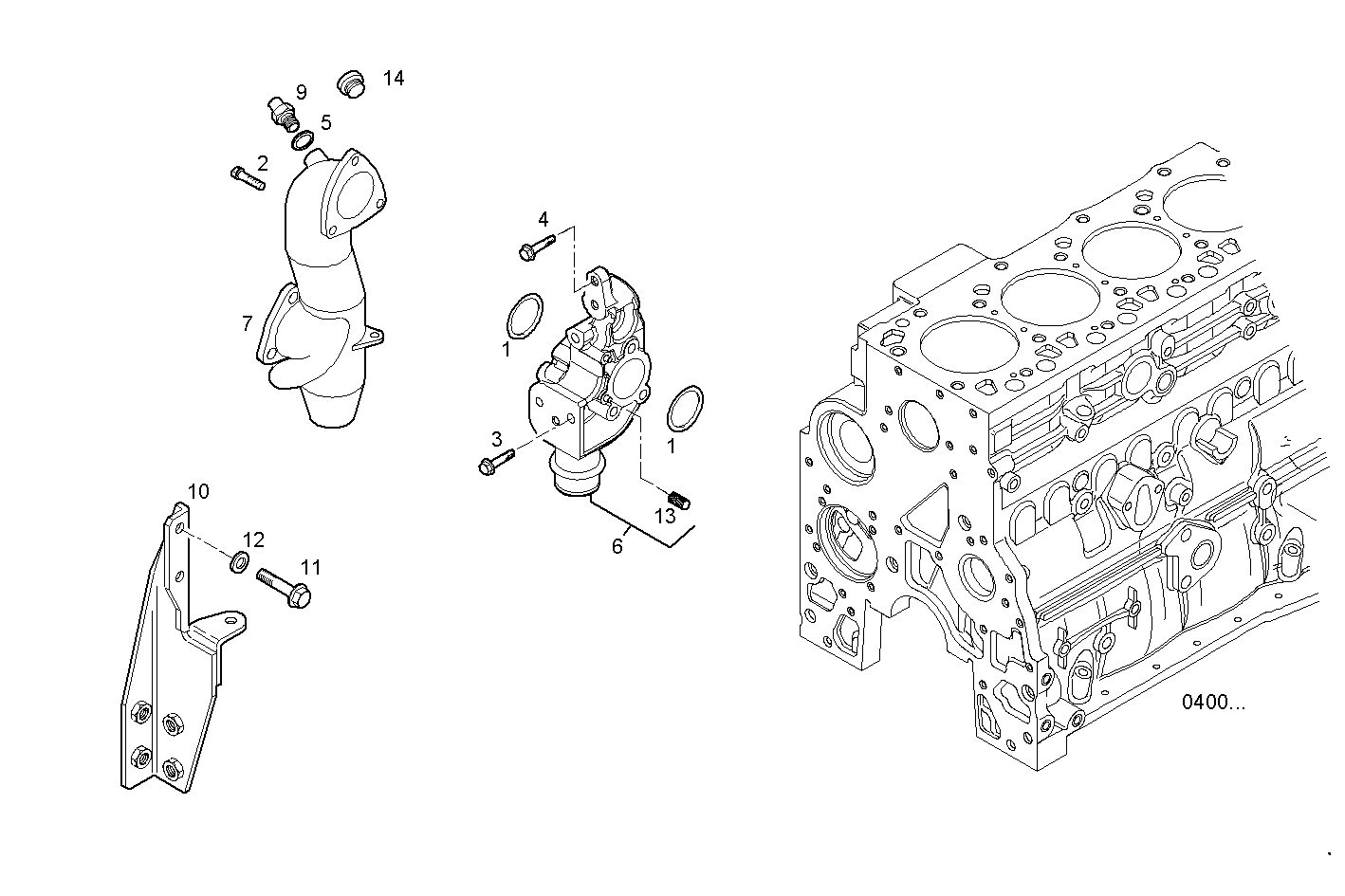

WATER LINES
F4BE0641A*G102 — NEF 6 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504062710 | WASHER WASHER | 2 | |
| 2 | 18138424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 4899109 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 16599025 | SCREW SCREW | 2 | |
| 5 | 18064760 | GASKET GASKET | 1 | |
| 6 | 500387647 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 7 | 500387648 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8024797 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 504060512 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 11 | 16677735 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17097124 | WASHER WASHER | 2 | |
| 13 | 4895576 | DOWEL PIN DOWEL PIN | 2 | |
| 14 | 60138528 | THREADED PLUG THREADED PLUG | 1 |
