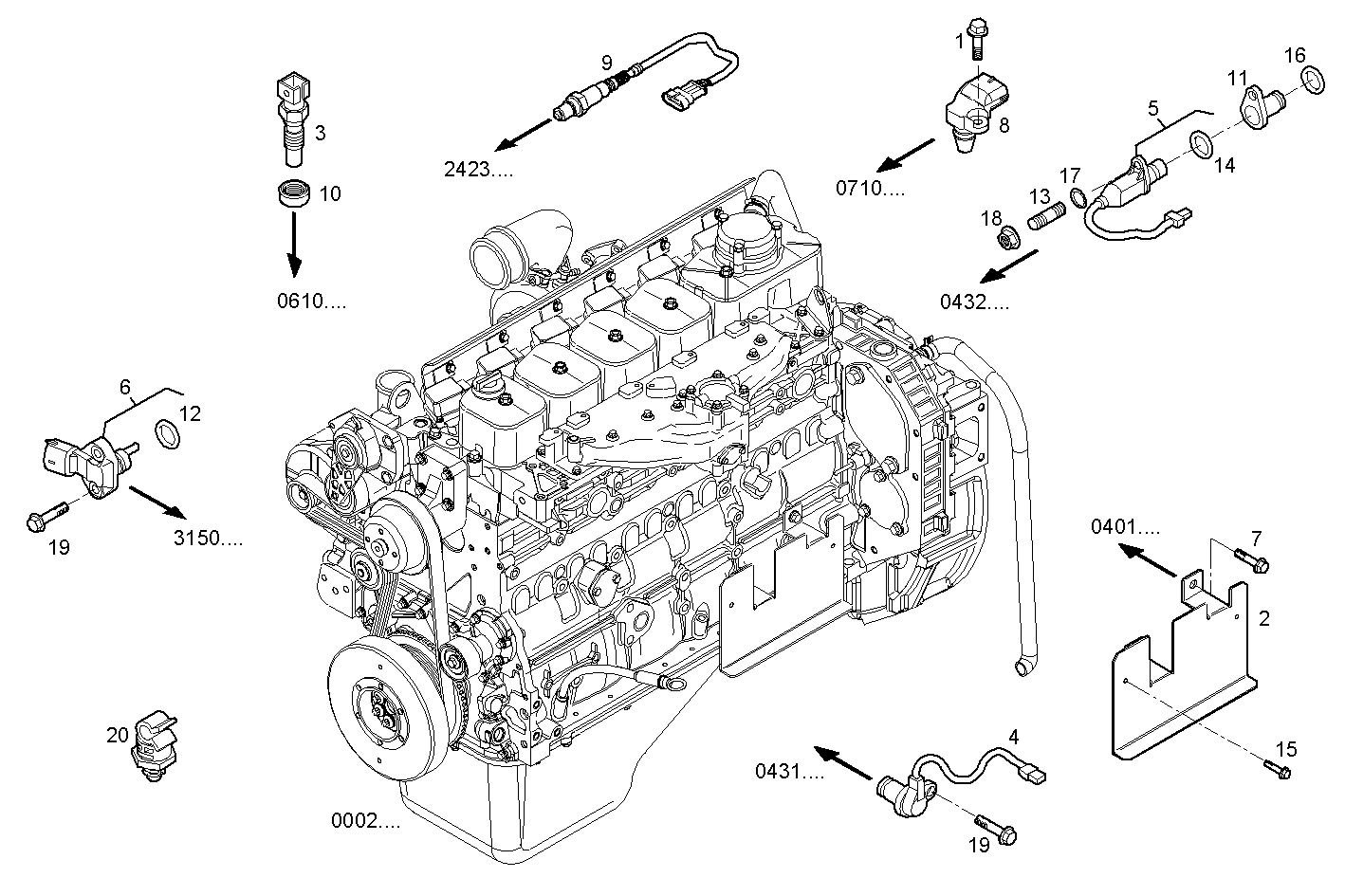

ELECTRONIC CONTROL UNIT
F4BE0647A*B100 — NEF 6 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4895817 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 2 | 504078230 | SUPPORT SUPPORT | 1 | |
| 3 | 4897224 | SENSOR SENSOR | 1 | |
| 4 | 4890189 | SENSOR SENSOR | 1 | |
| 5 | 4890190 | SENSOR SENSOR | 1 | |
| 6 | 4890193 | SENSOR SENSOR | 1 | |
| 7 | 16587925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 504073323 | SENSOR SENSOR | 1 | |
| 9 | 504083015 | SENSOR SENSOR | 1 | |
| 10 | 8033022 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 4892255 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 4895477 | O-RING O-RING | 1 | |
| 13 | 4895157 | STUD STUD | 1 | |
| 14 | 17278481 | O-RING O-RING | 1 | |
| 15 | 16585825 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17278881 | O-RING O-RING | 1 | |
| 17 | 17094614 | WASHER WASHER | 1 | |
| 18 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 19 | 4899110 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 20 | 504063553 | SPRING CLAMP SPRING CLAMP | 1 |
