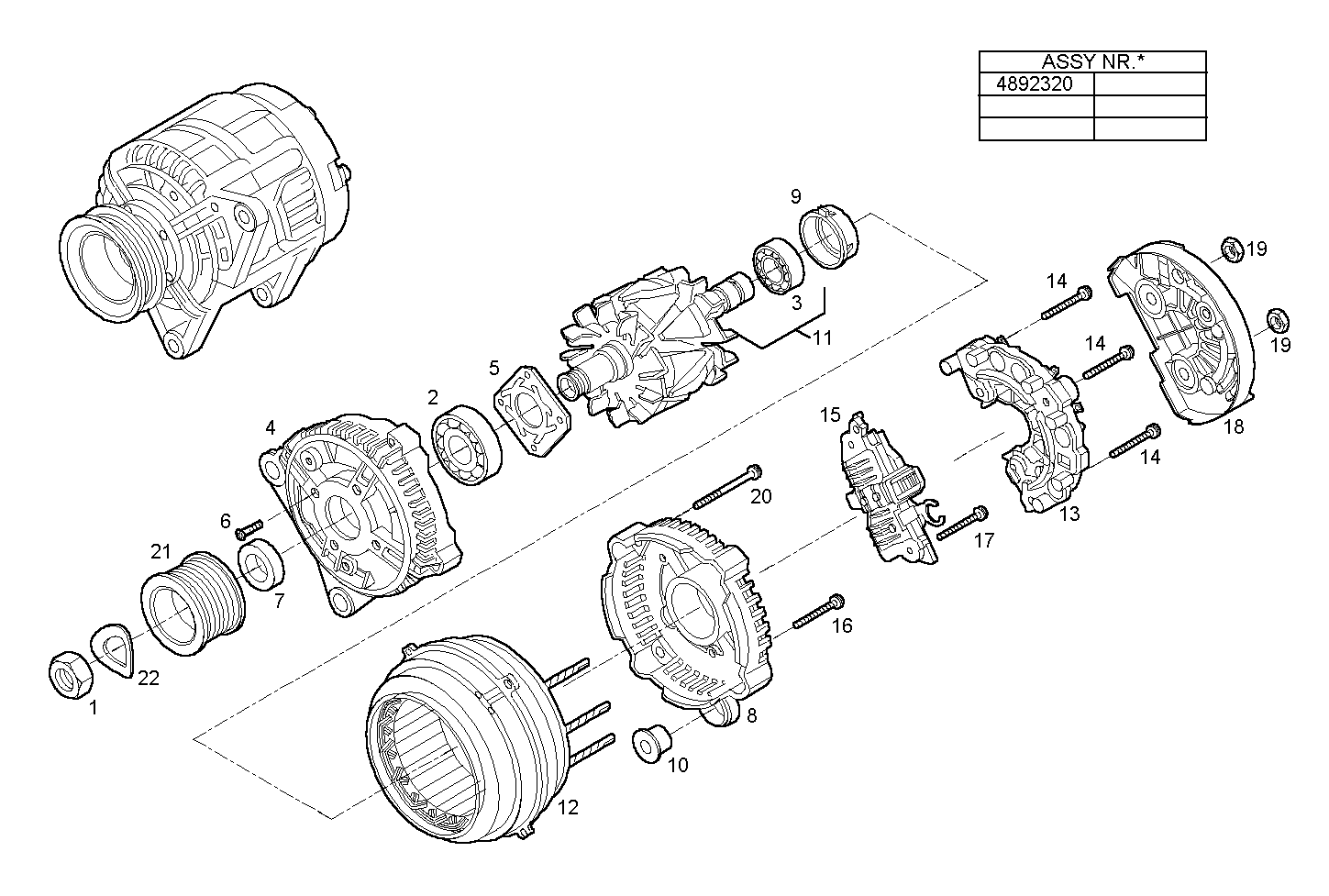

GENERATOR (COMPONENTS)
N60MNTG26.00A002 — NEF 6 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1113178 | NUT NUT | 1 | |
| 2 | 2992372 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 3 | 2991637 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 4 | 42537046 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 5 | 42537047 | PLATE PLATE | 1 | |
| 6 | 42537930 | C'SUNK SCREW C'SUNK SCREW | 4 | |
| 7 | 42537049 | SPACING BAR SPACING BAR | 1 | |
| 8 | 42537050 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 9 | 42533807 | RING RING | 1 | |
| 10 | 42537051 | BUSH BUSH | 2 | |
| 11 | 42537931 | GENERATOR ROTOR GENERATOR ROTOR | 1 | |
| 12 | 42537053 | GENERATOR STATOR GENERATOR STATOR | 1 | |
| 13 | 42537054 | RECTIFIER BRIDGE RECTIFIER BRIDGE | 1 | |
| 14 | 42533812 | SCREW SCREW | 3 | |
| 15 | 42537055 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 16 | 42536305 | SCREW SCREW | 1 | |
| 17 | 42536304 | SCREW SCREW | 2 | |
| 18 | 42533816 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 19 | 42533817 | HEXAGON NUT HEXAGON NUT | 2 | |
| 20 | 42533819 | SCREW SCREW | 4 | |
| 21 | 42535631 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 22 | 42531183 | SPRING WASHER SPRING WASHER | 1 |
