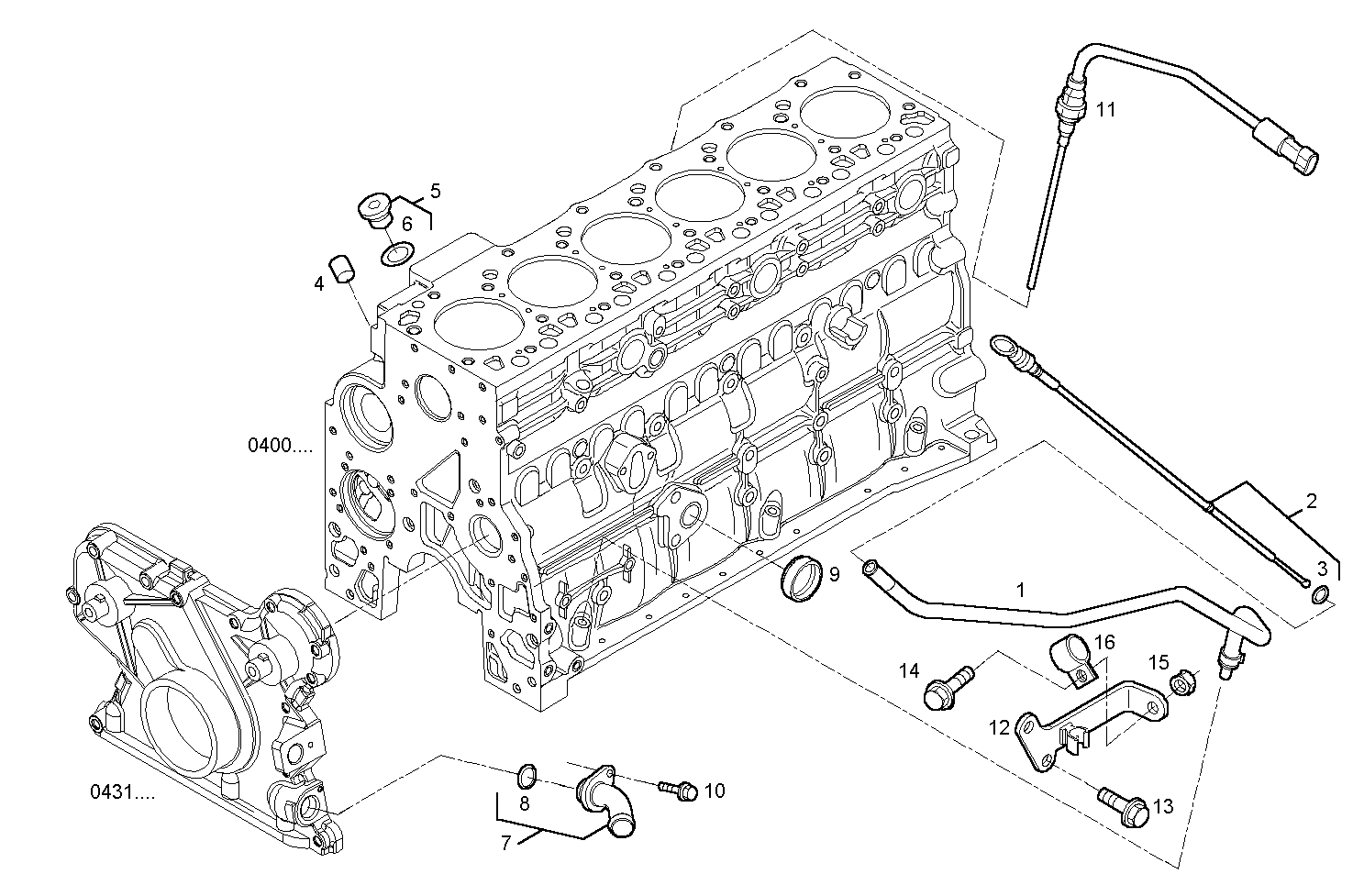

OIL DIPSTICK
F4AE0681D*C150 — NEF 6 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4897784 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 2 | 504017760 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 3 | 4898502 | O-RING O-RING | 1 | |
| 4 | 4899036 | PLUG PLUG | 2 | |
| 5 | 4897330 | PLUG PLUG | 1 | |
| 6 | 4895610 | O-RING O-RING | 1 | |
| 7 | 504046522 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 8 | 17281881 | O-RING O-RING | 1 | |
| 9 | 4895037 | PLUG PLUG | 1 | |
| 10 | 16597224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 4897788 | SENSOR SENSOR | 1 | |
| 12 | 504052656 | RETAINER RETAINER | 1 | |
| 13 | 4899068 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 4895164 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 4899057 | HEXAGON NUT HEXAGON NUT | 1 | |
| 16 | 17315090 | FASTENING BRACKET FASTENING BRACKET | 1 |
