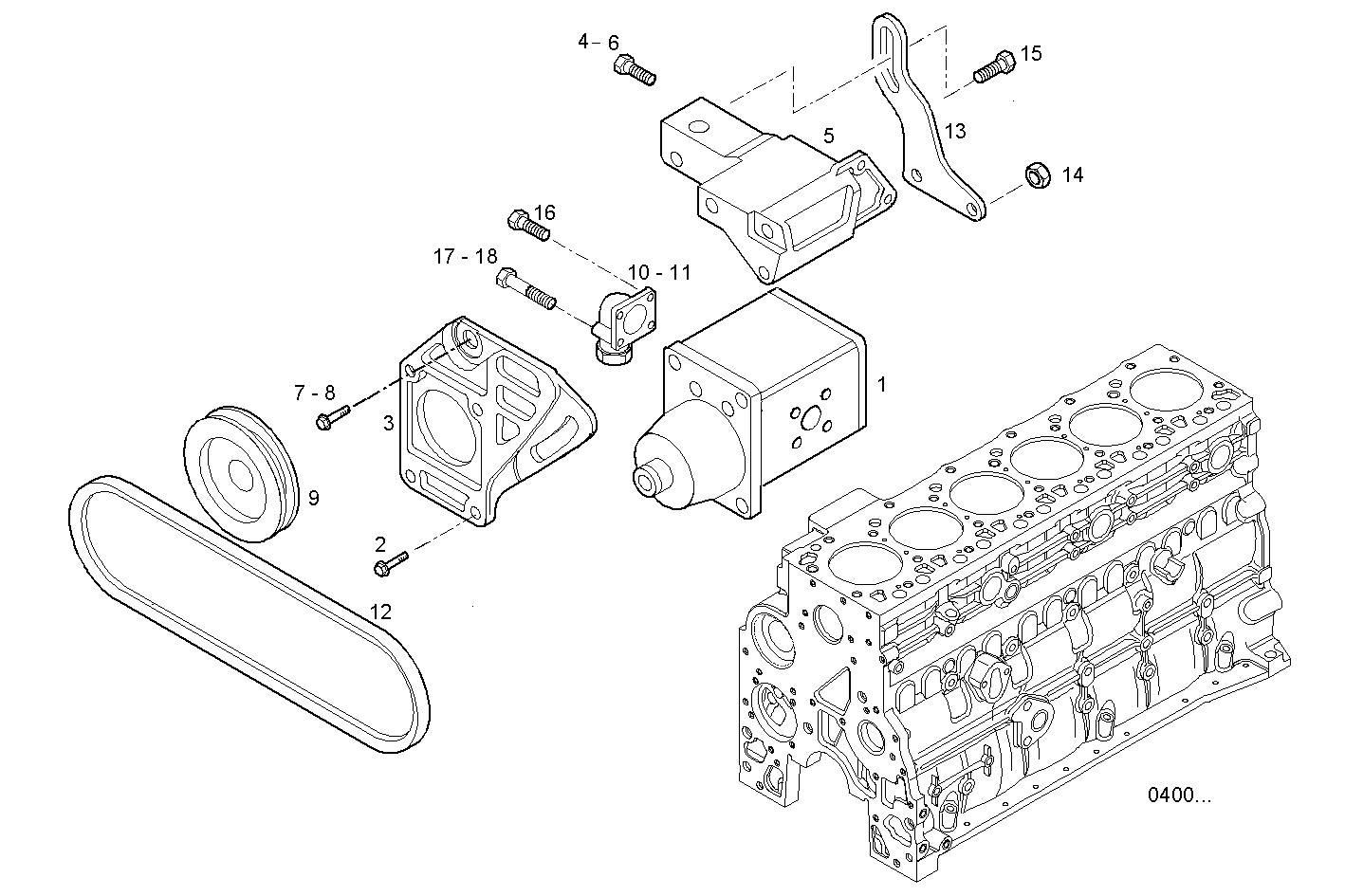

HYDRAULIC PUMP
F4AE0682C*C117 — NEF 6 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500387680 | HYDRAULIC PUMP HYDRAULIC PUMP | 1 | |
| 2 | 16586425 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 500387653 | SUPPORT PLATE SUPPORT PLATE | 1 | |
| 4 | 16677734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 504019287 | SUPPORT SUPPORT | 1 | |
| 6 | 16677934 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 16600024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16600124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 500387665 | PULLEY PULLEY | 1 | |
| 10 | 98437006 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 11 | 98437008 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 12 | 500387663 | V-BELT V-BELT | 1 | |
| 13 | 500393315 | RETAINER RETAINER | 1 | |
| 14 | 17044821 | NUT NUT | 2 | |
| 15 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 4899110 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 4899147 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 4899148 | HEXAGON BOLT HEXAGON BOLT | 2 |
