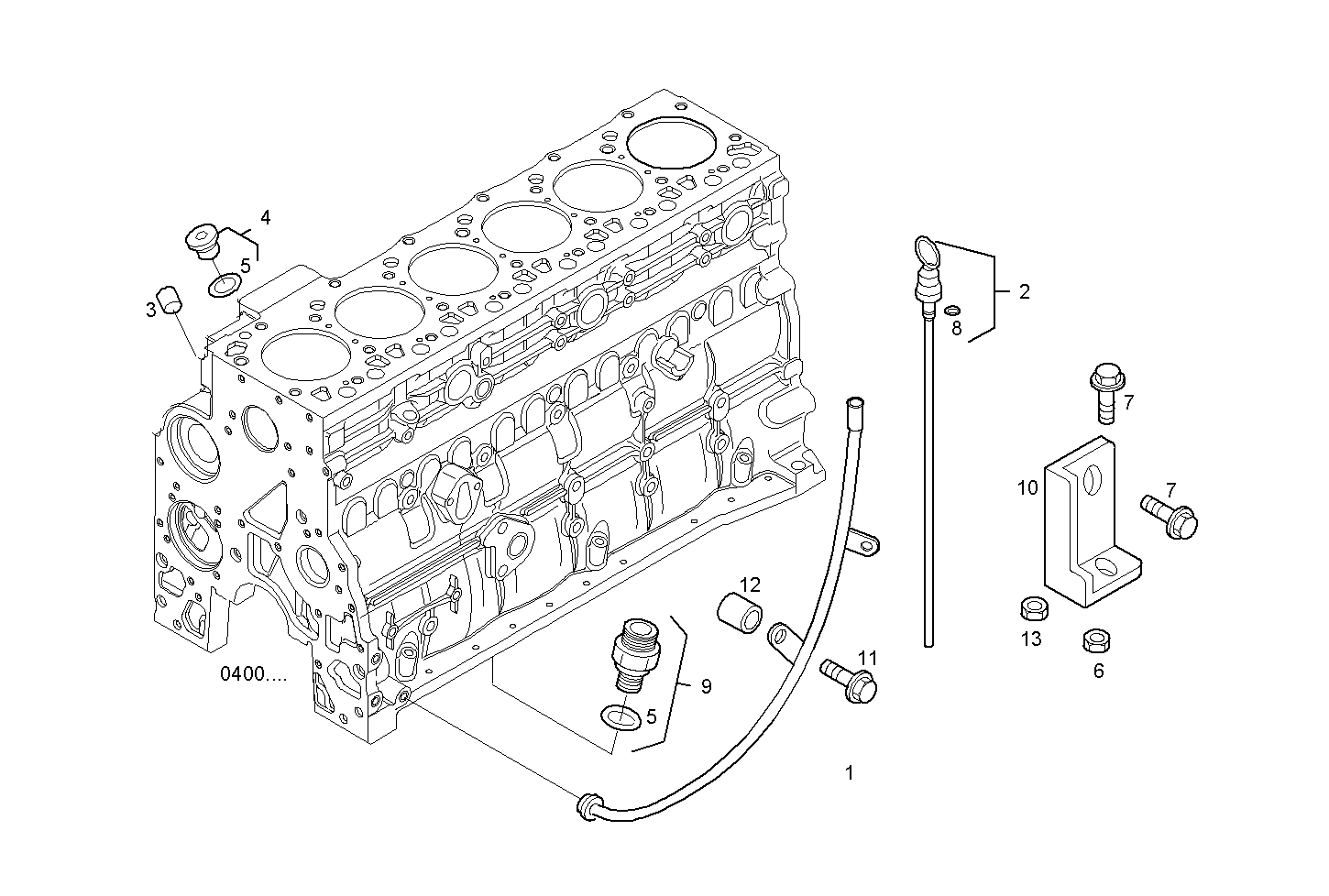

OIL DIPSTICK
F4AE0682C*C119 — NEF 6 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500387688 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 2 | 504034490 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 3 | 4899036 | PLUG PLUG | 3 | |
| 4 | 4897330 | PLUG PLUG | 1 | |
| 5 | 4895610 | O-RING O-RING | 2 | |
| 6 | 17044735 | NUT NUT | 1 | |
| 7 | 4899068 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 4898502 | O-RING O-RING | 1 | |
| 9 | 504012966 | THREADED UNION THREADED UNION | 1 | |
| 10 | 4896026 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 11 | 4895164 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 4895336 | SPACING BAR SPACING BAR | 1 | |
| 13 | 17044625 | HEXAGON NUT HEXAGON NUT | 1 |
