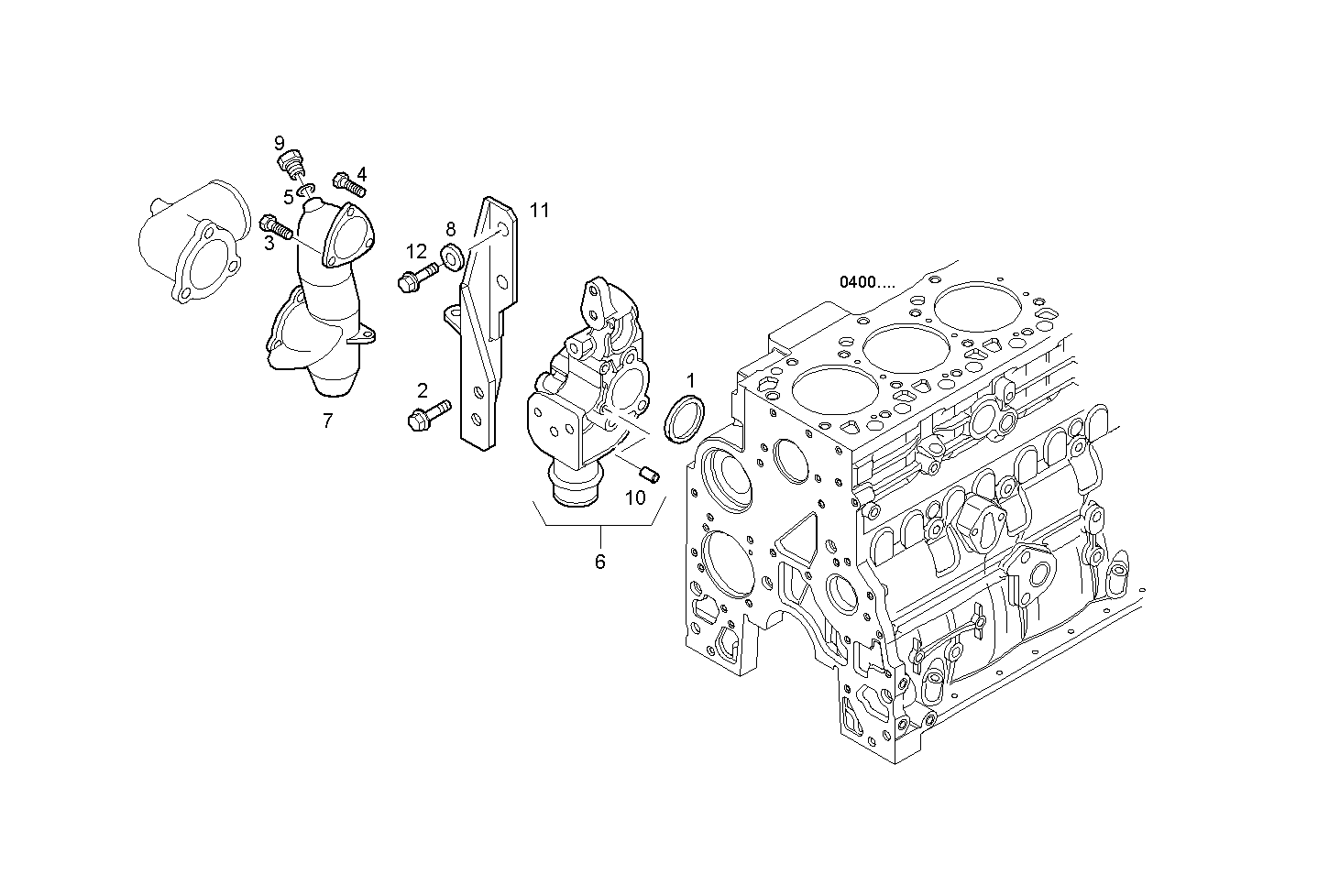

WATER LINES
F4AE0682H*C105 — NEF 6 electron. - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504062710 | WASHER WASHER | 2 | |
| 2 | 16586325 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 3 | 4899109 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 16599024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 18064760 | GASKET GASKET | 1 | |
| 6 | 500387647 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 7 | 500387648 | WATER PIPE WATER PIPE | 1 | |
| 8 | 17097124 | WASHER WASHER | 2 | |
| 9 | 60138528 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 4895576 | DOWEL PIN DOWEL PIN | 2 | |
| 11 | 504060512 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 12 | 4899037 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 |
