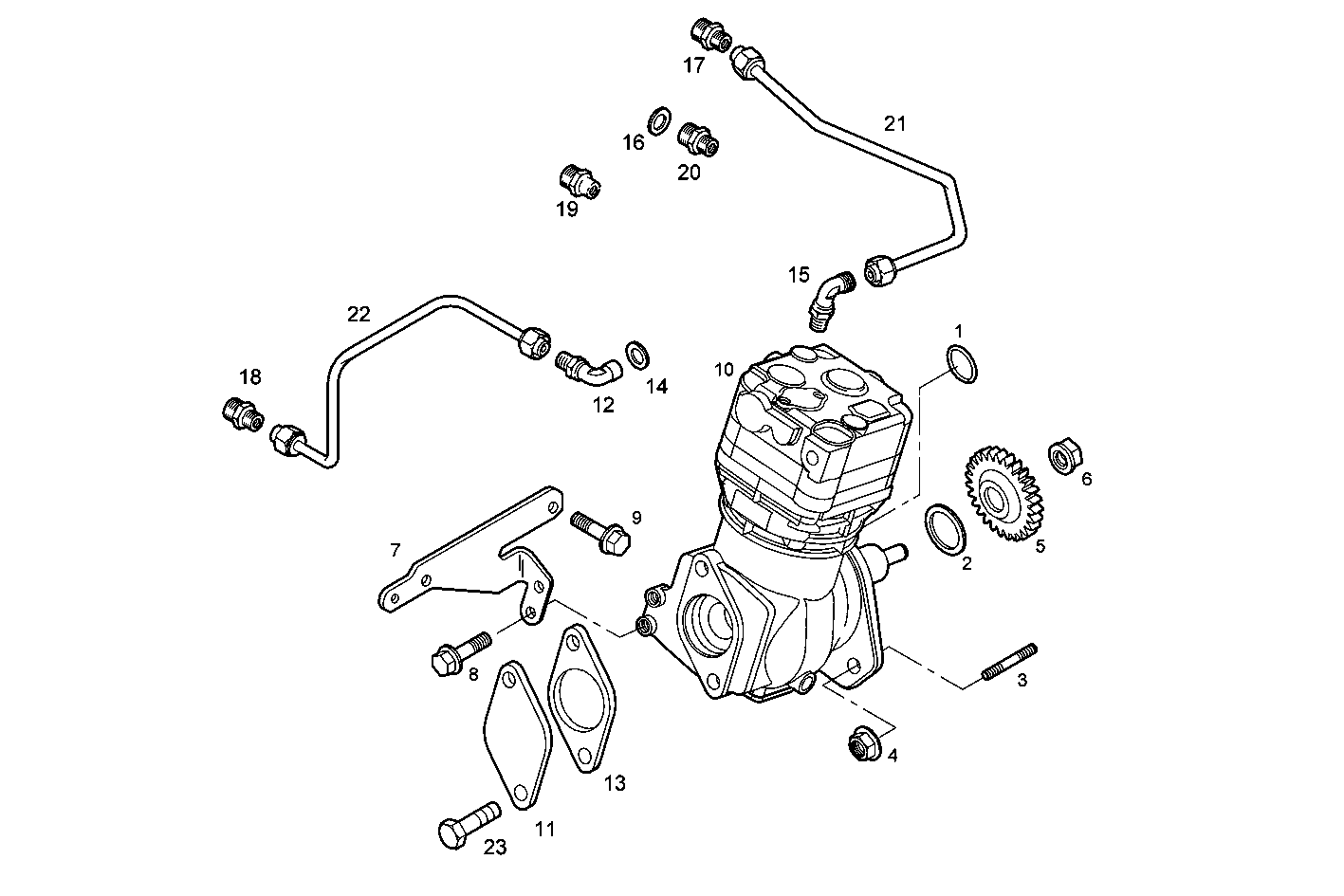

AIR COMPRESSOR
N60ENTD20.00 — NEF 6 electron. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17281381 | O-RING O-RING | 1 | |
| 2 | 504016688 | RUBBER GASKET RUBBER GASKET | 1 | |
| 3 | 4899069 | STUD STUD | 2 | |
| 4 | 4899018 | HEXAGON NUT HEXAGON NUT | 2 | |
| 5 | 4894308 | GEAR GEAR | 1 | |
| 6 | 504016500 | NUT NUT | 1 | |
| 7 | 4897739 | RETAINER RETAINER | 1 | |
| 8 | 16586325 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 4899068 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 504016815 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 11 | 504016777 | COVER COVER | 1 | |
| 12 | 4897881 | THREADED UNION THREADED UNION | 1 | |
| 13 | 504016778 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 14 | 98474309 | WASHER WASHER | 1 | |
| 15 | 4896491 | ELBOW COUPLING ELBOW COUPLING | 2 | |
| 16 | 16508460 | WASHER WASHER | 1 | |
| 17 | 4891285 | THREADED UNION THREADED UNION | 1 | |
| 17 | 504043982 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 41031569 | THREADED UNION THREADED UNION | 1 | |
| 19 | 500359598 | PIPE SOCKET PIPE SOCKET | 1 | |
| 20 | 500380717 | PIPE SOCKET PIPE SOCKET | 1 | |
| 21 | 4896468 | WATER PIPE WATER PIPE | 1 | |
| 21 | 504043980 | WATER PIPE WATER PIPE | 1 | |
| 22 | 4896476 | WATER PIPE WATER PIPE | 1 | |
| 23 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 2 |
