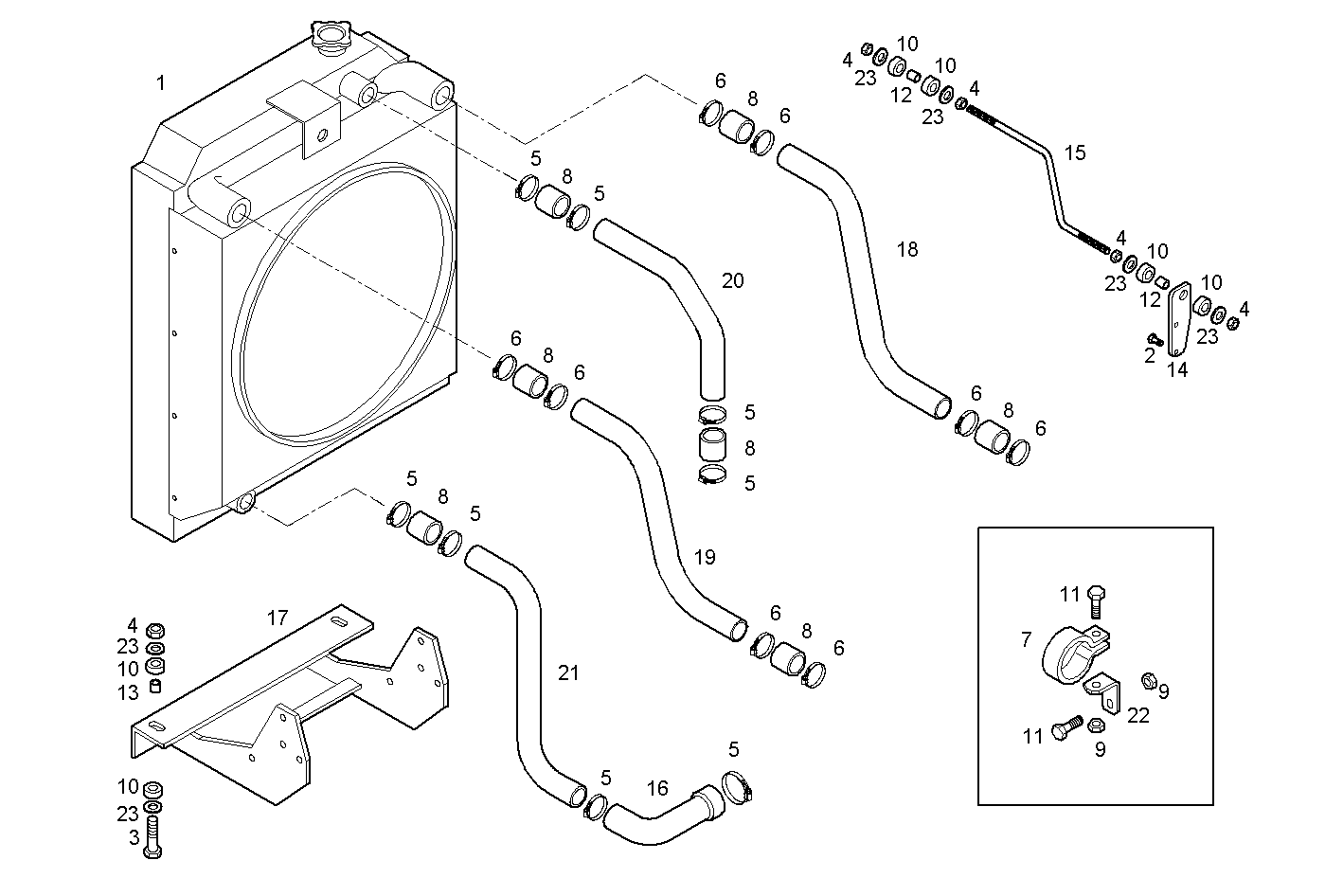

RADIATOR
N60ENTD20.00A801 — NEF 6 electron. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037782 | WATER RADIATOR WATER RADIATOR | 1 | |
| 1 | 8042936 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 16586424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 16588824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16750425 | HEXAGON NUT HEXAGON NUT | 6 | |
| 5 | 17764991 | CLIP CLIP | 8 | |
| 6 | 17765191 | CLIP CLIP | 8 | |
| 7 | 18116704 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 4863960 | WATER HOSE WATER HOSE | 7 | |
| 9 | 4899003 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 741569 | RUBBER PAD RUBBER PAD | 6 | |
| 11 | 16586324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 741571 | SPACING BAR SPACING BAR | 2 | |
| 13 | 8108634 | SPACING BAR SPACING BAR | 2 | |
| 14 | 8037825 | RETAINER RETAINER | 1 | |
| 15 | 8038147 | TIE ROD TIE ROD | 1 | |
| 16 | 8039375 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 17 | 8039640 | SUPPORT SUPPORT | 1 | |
| 18 | 8039662 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 19 | 8039663 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 20 | 8039696 | WATER PIPE WATER PIPE | 1 | |
| 21 | 8039697 | WATER PIPE WATER PIPE | 1 | |
| 22 | 8103023 | RETAINER RETAINER | 1 | |
| 23 | 741570 | WASHER WASHER | 7 |
