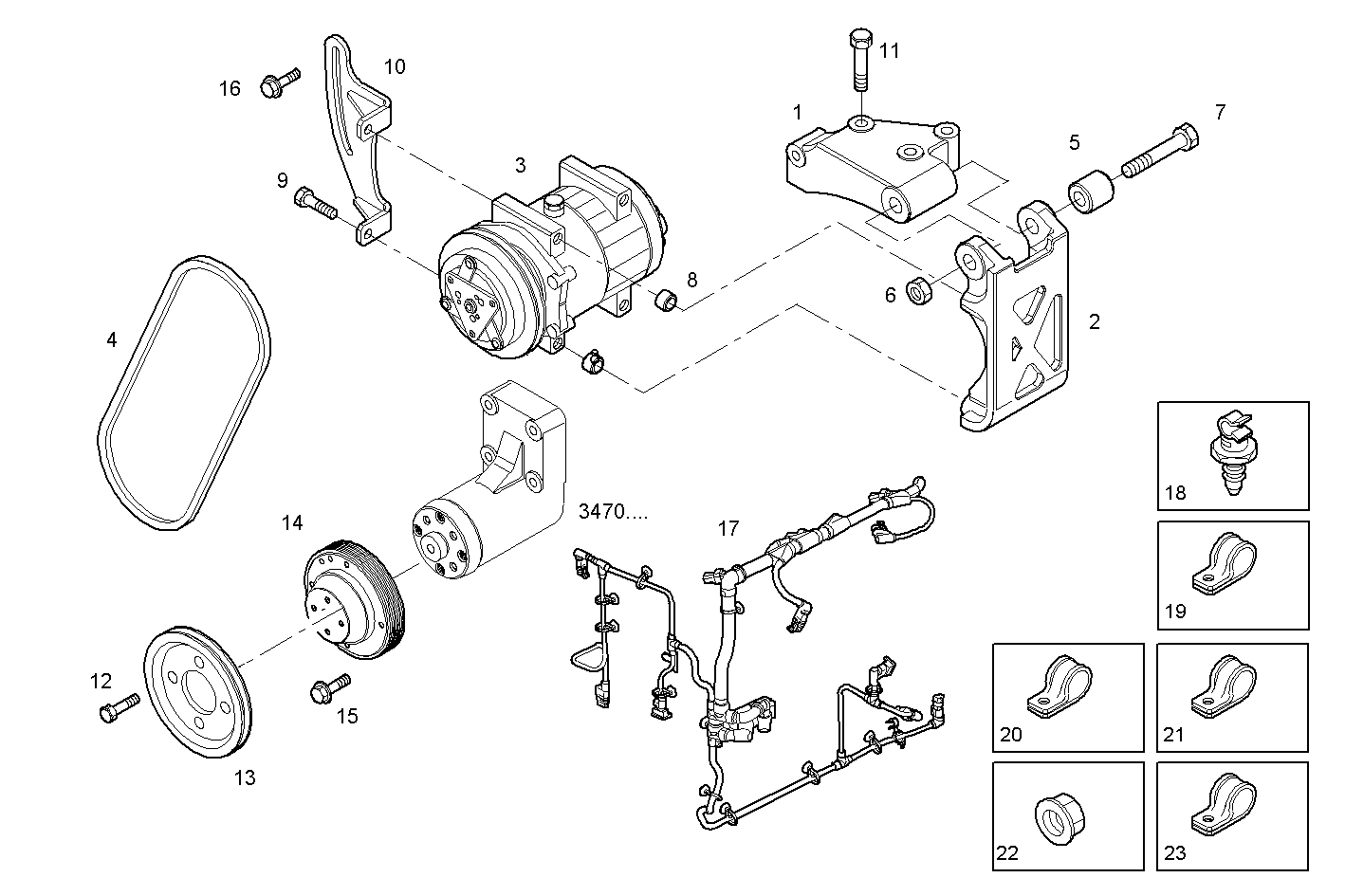

COMPRESSOR AIR CONDITIONING
N60ENTE20.00 — NEF 6 electron. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500387902 | SUPPORT SUPPORT | 1 | |
| 2 | 500387643 | SUPPORT SUPPORT | 1 | |
| 3 | 500388059 | AIR COND.COMPRESS. AIR COND.COMPRESS. | 1 | |
| 4 | 4749445 | V-BELT V-BELT | 1 | |
| 5 | 98433179 | SPACING BAR SPACING BAR | 1 | |
| 6 | 17044921 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 16599724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 4895227 | DOWEL PIN DOWEL PIN | 2 | |
| 9 | 504056183 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 500387903 | TENSIONER TENSIONER | 1 | |
| 11 | 4899144 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 16586324 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 13 | 504083372 | COMPRESSOR PULLEY COMPRESSOR PULLEY | 1 | |
| 14 | 504083374 | PULLEY PULLEY | 1 | |
| 15 | 16675834 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 4899147 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 504011726 | WIRE/CABLE WIRE/CABLE | 1 | |
| 18 | 504063553 | SPRING CLAMP SPRING CLAMP | 1 | |
| 19 | 17316590 | PIPE CLIP PIPE CLIP | 1 | |
| 20 | 17315390 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 21 | 17315690 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 22 | 17044621 | HEXAGON NUT HEXAGON NUT | 3 | |
| 23 | 17315190 | FASTENING BRACKET FASTENING BRACKET | 1 |
